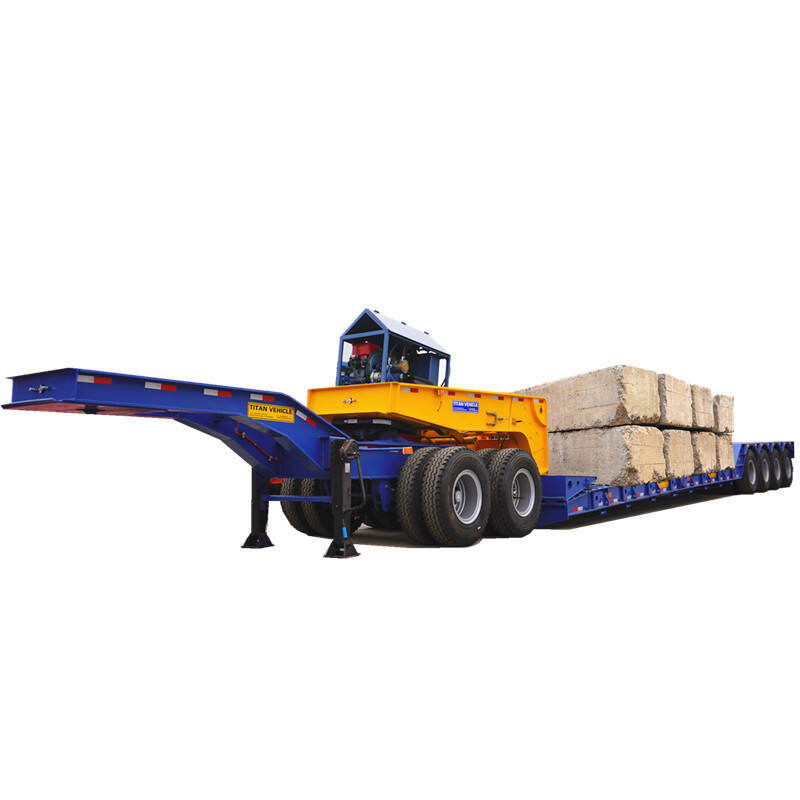

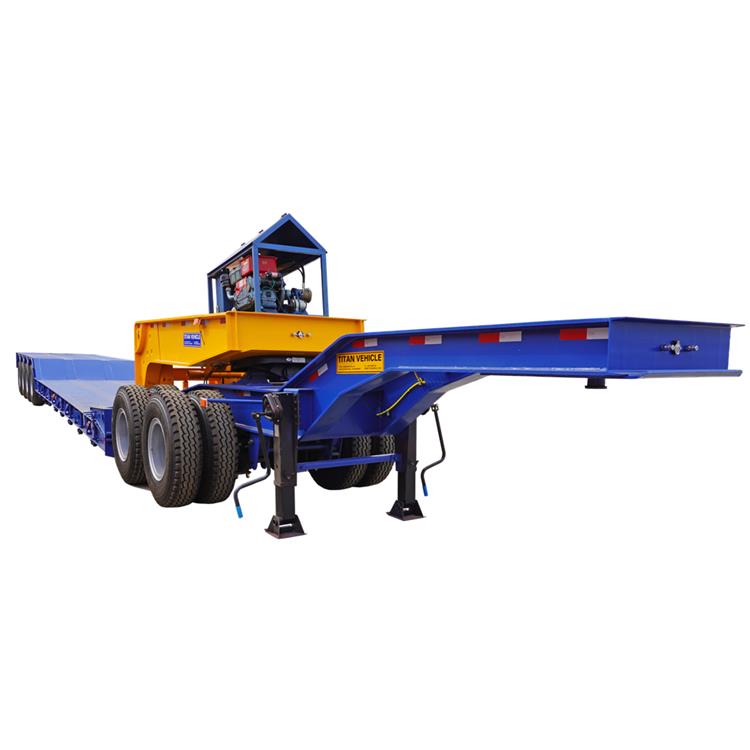

150 Ton Detachable Gooseneck Lowboy Trailer

Detachable Gooseneck Lowboy Trailer Description:

Sinotruk Nigeria 150t heavy duty detachable gooseneck lowboy trailers for sale in Nigeria Abuja for transport excavator and construction equipment, large machinery transportation.

4 axle 150t heavy duty detachable gooseneck lowboy trailer main beam of Sinotruk Nigeria is made of HG60 high-strength structural steel. The yield strength of HG60 steel is ≥ 620MPa, which is more durable and stronger than ordinary steel. Its bearing capacity is 5 times of that of Q345 steel trailer. Sinotruk Nigeria's detachable gooseneck lowboy trailers for sale in nigeria abuja adopts reinforced gooseneck and upper and lower plate by double layer.

Sinotruk Nigeria detachable gooseneck lowboy trailers for sale in nigeria abuja can make the 2/3/4 axles lowboy trailers, with a capacity of 60/80/100/120 ton. To meet your transport needs and your local regulations, we can customize different configurations detachable gooseneck lowboy trailers for sale in nigeria abuja for you.

150T Heavy Duty Detachable Gooseneck Lowboy Trailer for Sale in Nigeria Abuja

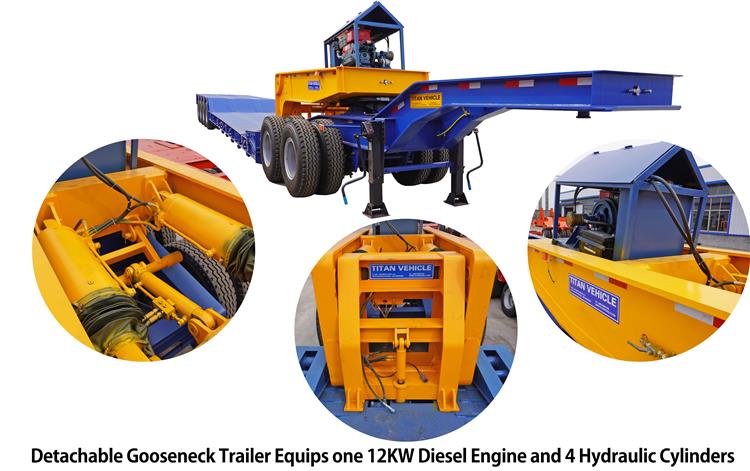

This detachable gooseneck lowboy trailers for sale in nigeria abuja equips one 12KW diesel engine and 4 hydraulic cylinders. The height of the main beam is 500 mm and its side beam adopts  H-shape design.

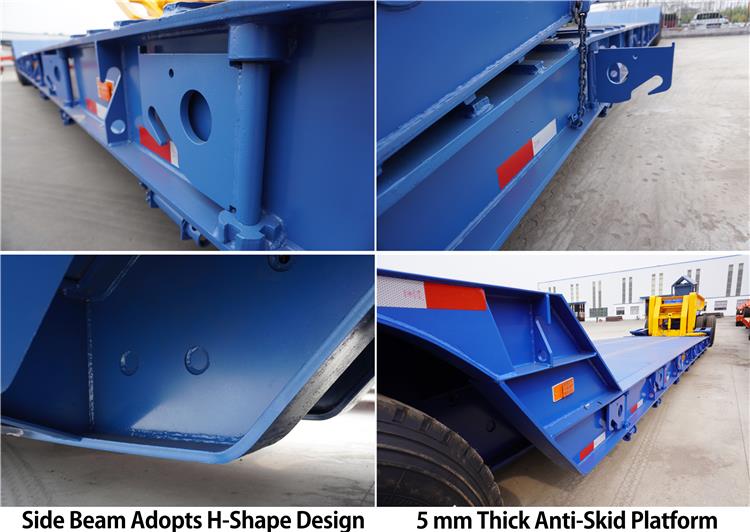

Sinotruk Nigeria detachable gooseneck lowboy trailers for sale in nigeria abuja also uses the 5 mm thick anti-skid platform to produce the trailer, which will never deform.

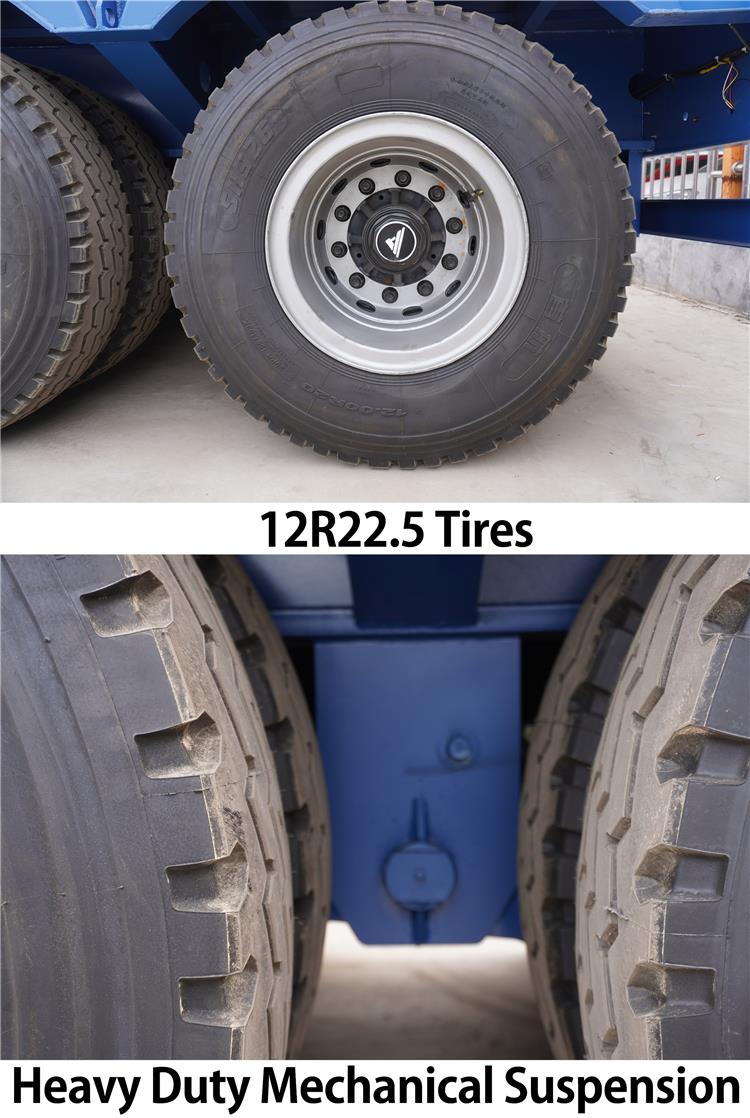

Detachable gooseneck lowboy trailers for sale in Nigeria Abuja also adopts heavy duty mechanical suspension to produce the trailer,whose thickness is 10 mm and width is 120 mm, the diameter of king pin is 3.5 inch. Detachable gooseneck lowboy trailers for sale in Nigeria Abuja equips 12R22.5 tires,which makes the trailer has more loading capacity

Specification of Detachable Gooseneck Trailer:

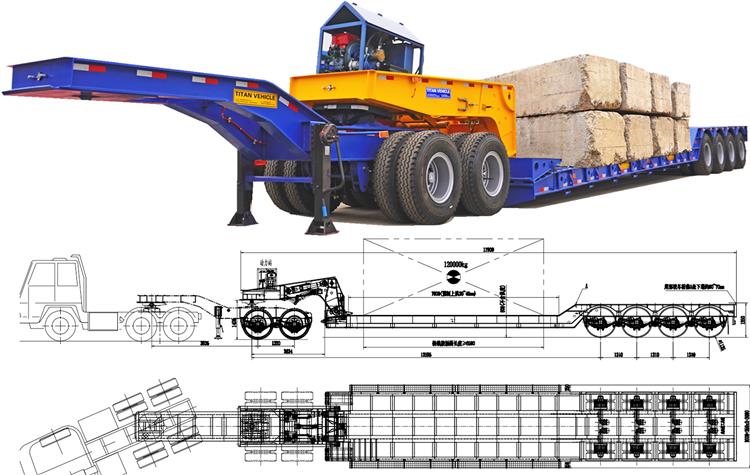

Overall dimension: 17900mm * 2500+250*2mm *2200mm(platform 800mm)

Loading capacity: 150 ton

Axles：4 axles with 2 axles dolly

Tire: 16 units, 8.25R20/10.00R20/11.00R20/12R22.5

Suspension: Mechanical suspension or air suspension

Spring leaf: 120(W)mmx16(Thickness)mmx10 layers

Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)

Tare weight: About 9.5-19T

Main beam: Height: 500mm; Width: 230mm; Side beam: 250 I-beam 10/8/10; Material: HG60 high-strength steel.

Bottom Platform: 5mm thick, checkered plate

Hydraulic cylinder: 12KW diesel engine with hydraulic station

Ramp: spring or hydraulic type

Valve: WABCO valve

Light: LED light (specially intended for oversea markets)

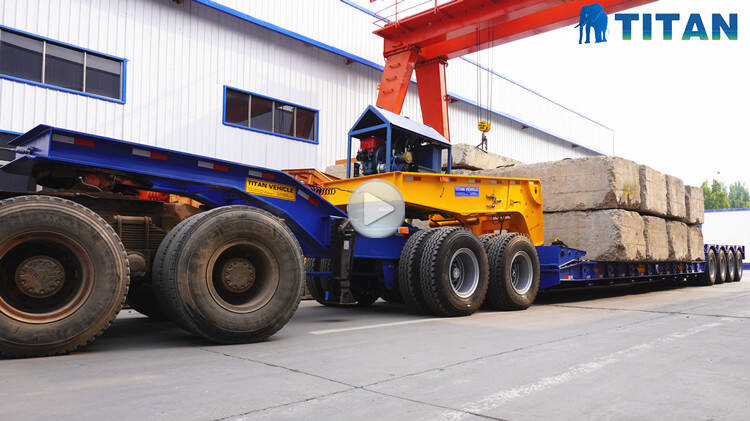

Detachable Gooseneck Lowboy Trailer Video
