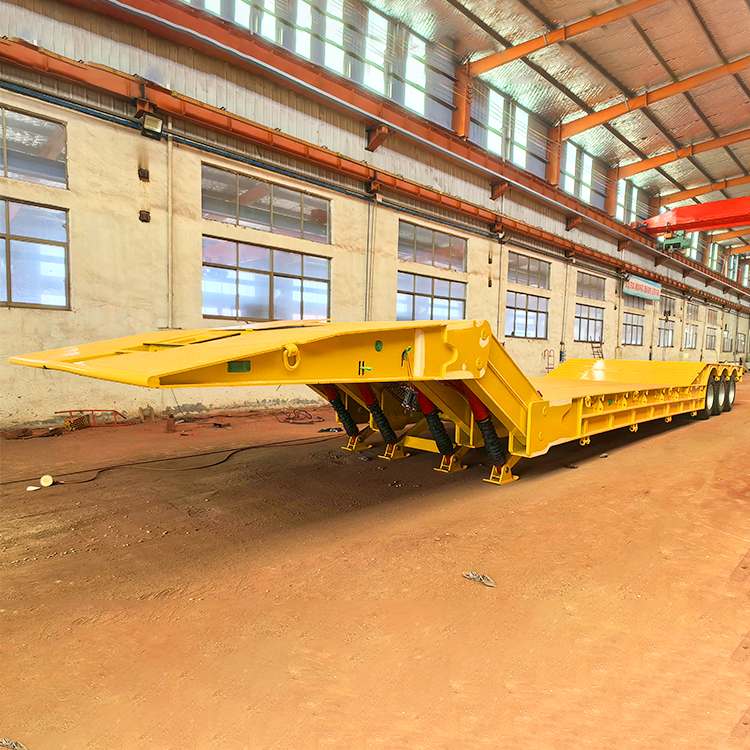

100 ton 3 Axle Folding Neck Lowboy

Video of Folding Neck Lowboy

Description of Folding Neck Lowboy

The 3 axle folding neck lowboy for sale in Nigeria is designed for the efficient transport of specialized heavy duty machinery and engineering equipment. Featuring an innovative hydraulic folding gooseneck structure, this trailer can quickly lower to the ground, creating a gentle loading ramp. This allows large, heavy equipment such as excavators, loaders, and crawler cranes to be smoothly driven directly onto the loading platform from the front of the vehicle without the need for external hoisting or additional ladders.

Constructed with high strength steel and optimized structural design, the 3 axle folding neck lowboy for sale in Nigeria achieves a balance between structural weight and torsional stiffness while ensuring a robust 100 ton load capacity. The ultra low loading platform effectively lowers the vehicle's center of gravity when loaded, significantly improving handling stability and anti tipping capabilities at high speeds and in harsh road conditions.

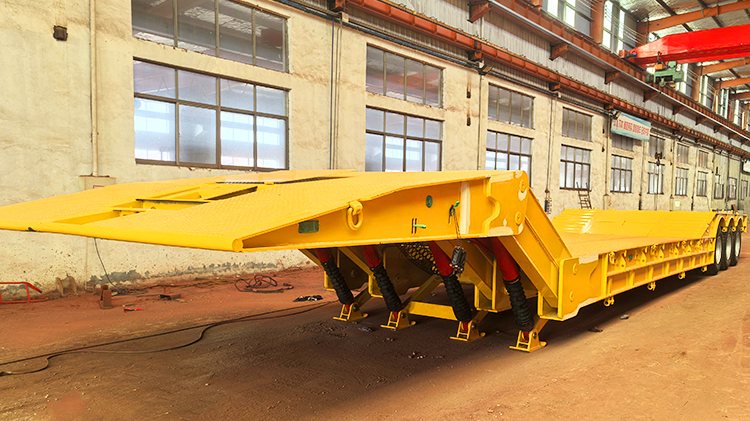

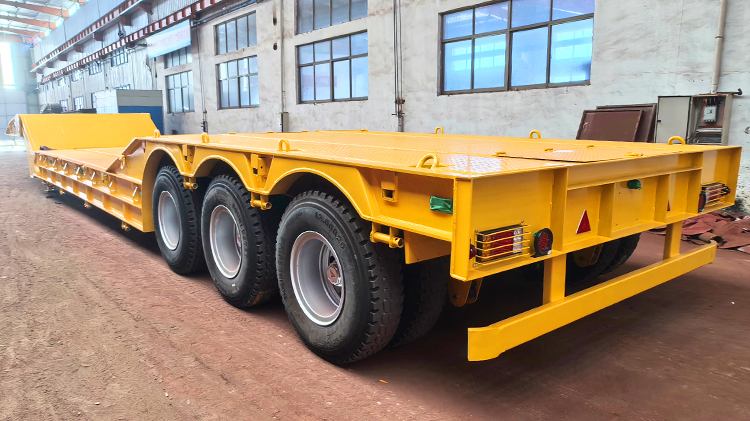

3 Axle Folding Neck Lowboy for Sale in Nigeria

3 Axle Folding Neck Lowboy for Sale in Nigeria

3 Axle Folding Neck Lowboy for Sale in Nigeria

3 Axle Folding Neck Lowboy for Sale in Nigeria

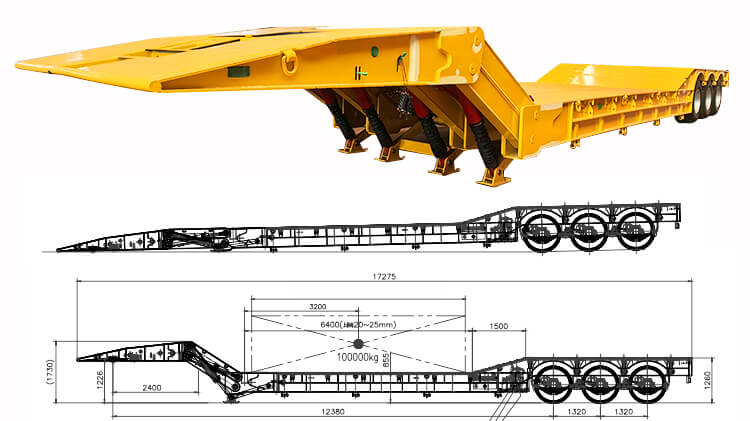

Specification of Folding Neck Lowboy

Dimension: 17275mm*3710mm*1730mm

Loading capacity(T): 100 ton

Goose neck: Folding gooseneck

Axle: 3 axle

Tire: 12 units

Suspension: Mechanical suspension

Kingpin: JOST brand 2.0 or 3.5 inch

Valve: WABCO valve

Light: LED light

Advantages of Folding Neck Lowboy

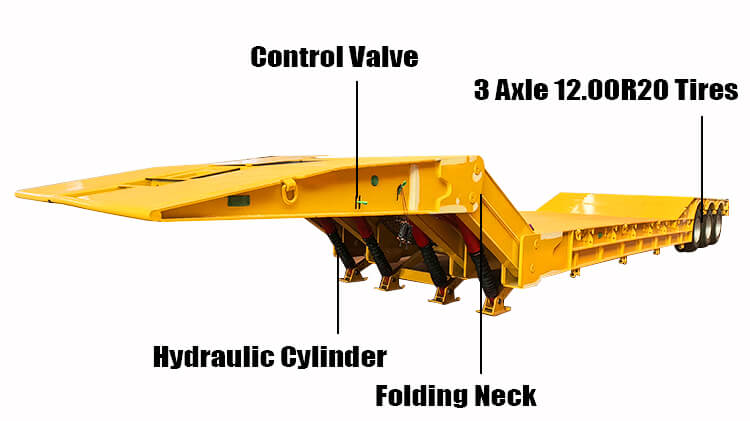

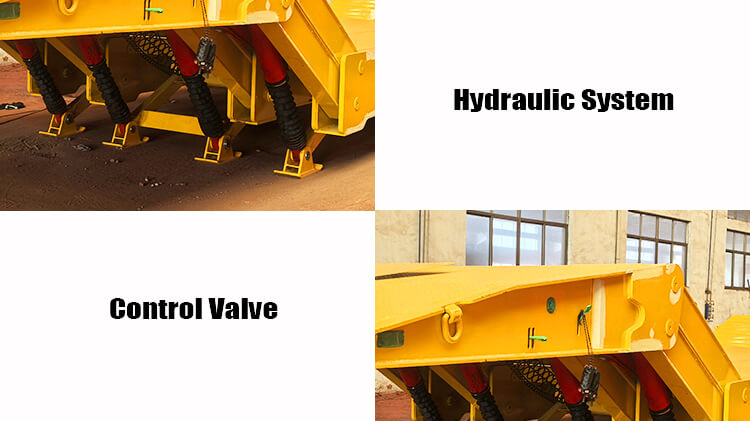

1. This 3 axle folding neck trailer for sale in Nigeria features a gooseneck section equipped with high performance hydraulic cylinders and precision control valves, enabling automatic folding and flattening via a power unit. When the gooseneck is lowered to the ground, its back smoothly transforms into a gentle slope, facilitating self loading of tracked and wheeled equipment, eliminating the cumbersome steps of disassembling the gooseneck, and greatly improving on site loading and unloading efficiency and the safety of single person operations.

2. The main beam of this 3 axle folding neck trailer for sale in Nigeria is made of high strength steel, possessing extremely high bending and torsional strength. The low height design of the loading platform minimizes the loading surface height, lowering the center of gravity of the cargo and maximizing the use of road height restrictions, making it particularly suitable for transporting tall, heavy equipment.

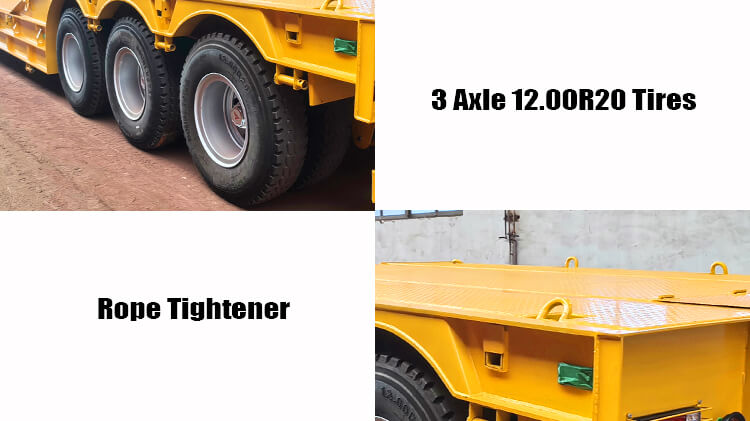

3. This 3 axle folding neck trailer for sale in Nigeria features a chassis equipped with three high load bearing axles and a heavy duty mechanical leaf spring suspension system. The multi axle design ensures even stress distribution across all axles under a 100 ton load, effectively extending tire and axle lifespan and meeting axle load regulations in different regions.

4. The loading platform of this 3 axle folding neck trailer for sale in Nigeria is laid with high strength, anti slip patterned steel plates to prevent slippage of tracks or tires during loading, unloading, and transportation. The sides of the frame and side beams are densely equipped with stress reinforced, high strength D rings and anchor bolts, allowing for secure multi angle locking of heavy loads using chains or straps, ensuring absolute safety during transit.
