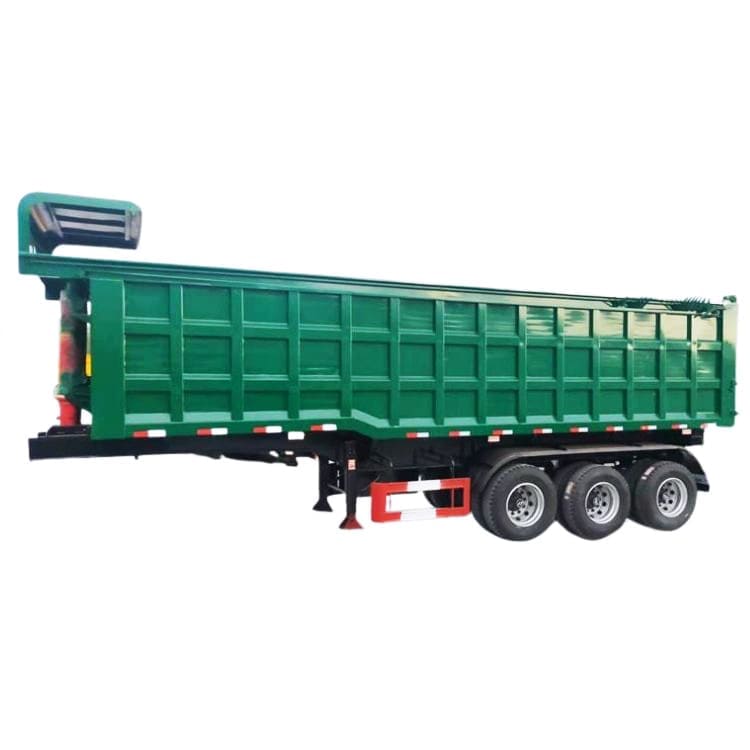

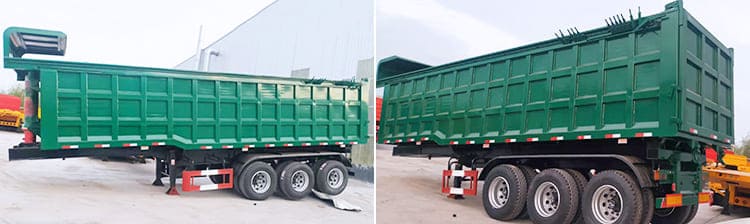

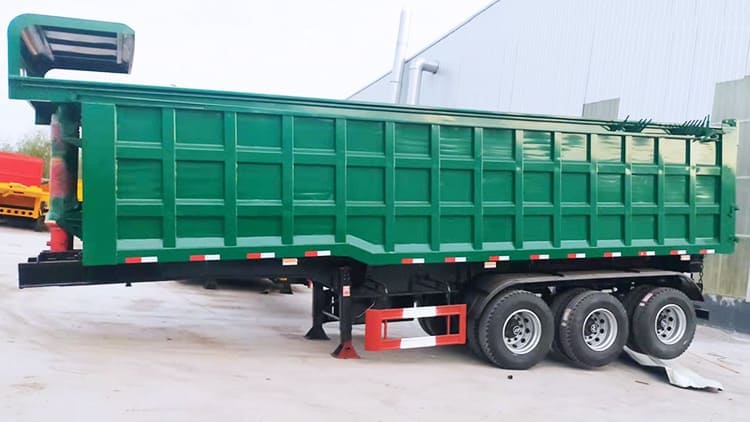

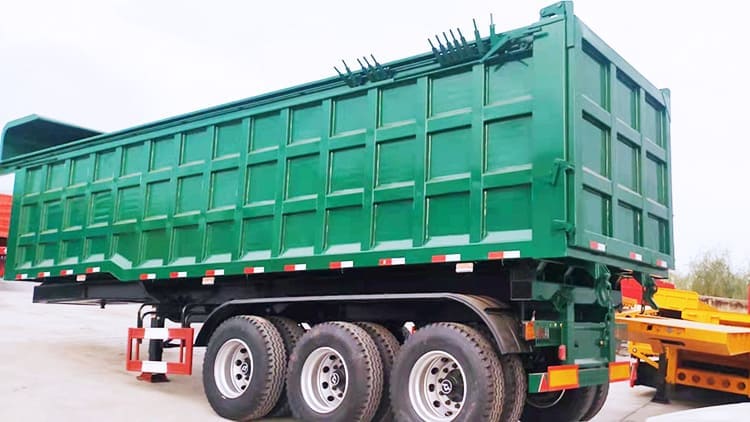

3 Axle Semi Tipper Trailer

3 Axle Semi Tipper Trailer:

3 axle 35cbm semi tipper trailer for sale adopts high strength steel T700, offering all the durability of high-tensile-strength steel and unique structure design to maximize payload to increase your profitability.

Semi Tipper Trailer for sale adopt Submerge-arc welding, The protective effect of the slag insulation when isolated air is good, the welding parameters could keep stable by automatic adjustment, the weld composition is stable and the mechanical performance is better.

3 Axle Semi Tipper Trailer for Sale in Nigeria Port Harcourt

3 Axle Semi Tipper Trailer for Sale in Nigeria Port Harcourt

3 Axle Semi Tipper Trailer for Sale in Nigeria Port Harcourt

Specifications of Semi Tipper Trailer:

Dimension: 11500mmx2500mm x3950mm ( inside dimension )

Main beam: Height: 480mm, Upper plate: 14mm, Middle plate: 8mm, Lower plate: 14mm, Material: T700 steel.

Bottom Platform: 4 thick checkered plate

Side wall thickness: 4mm

Total volume(m³): 35m³

End plate: 8mm

Lifting System: Full set of HYVA lifting cylinder

Axle: 13T/16T, FUWA / BPW / Sinotruk Nigeria Brand

Rim: 8.0-20 or 9.00-20

Tire: 8.25R20/10.00R20/11.00R20/12R22.5

Suspension: Mechanical suspension

Spring leaf: 90(W)mmx13(Thickness)mmx10 layers

Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)

Landing gear: JOST brand

ABS: Optional

Valve: WABCO valve

Light: LED light (specially intended for oversea markets)

Voltage: 24V

Tool box: 1 set

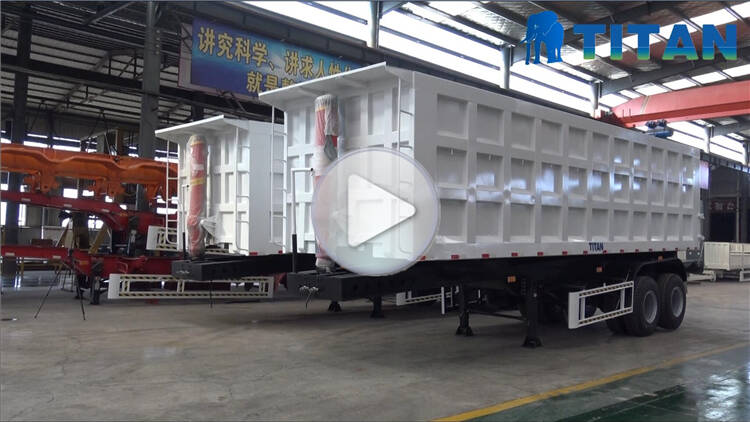

Through these videos, you can learn about different types of semi tipper trailers, as well as the process, testing, packaging and customer feedback, etc.

Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for you!
