Nigeria Sinotruk Local Sales Center 2025 Howo New Model
Before delivery, lowboy trailers for sale near me in Nigeria will undergo professional load tests. Waxing will also be done later, and after waxing, the vehicle will be packed with rain cloth to prevent seawater from corroding the vehicle during sea transportation.
The load surface of the cargo platform of lowboy trailers for sale near me in Nigeria is lower from the ground, which makes the center of gravity of the goods lower during transportation, improves the driving stability of the vehicle, and reduces the risk of rollover due to excessive center of gravity during transportation. It is especially suitable for transporting large mechanical equipment with a high center of gravity.

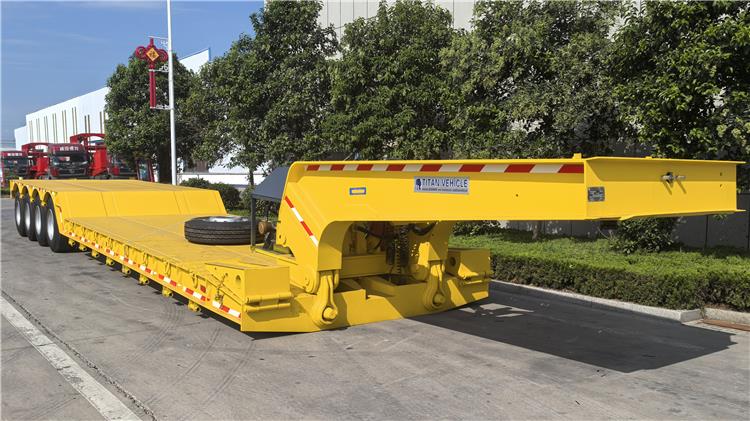

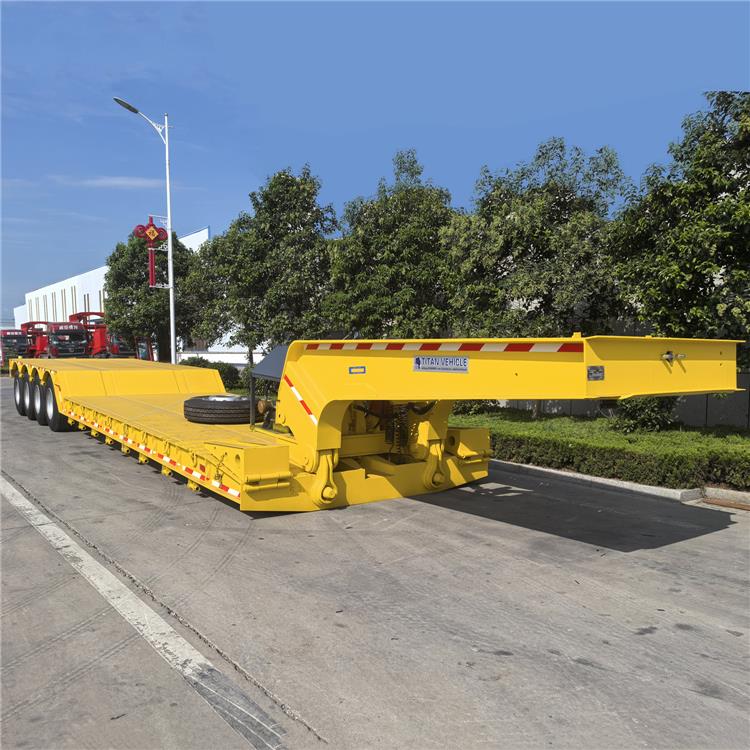

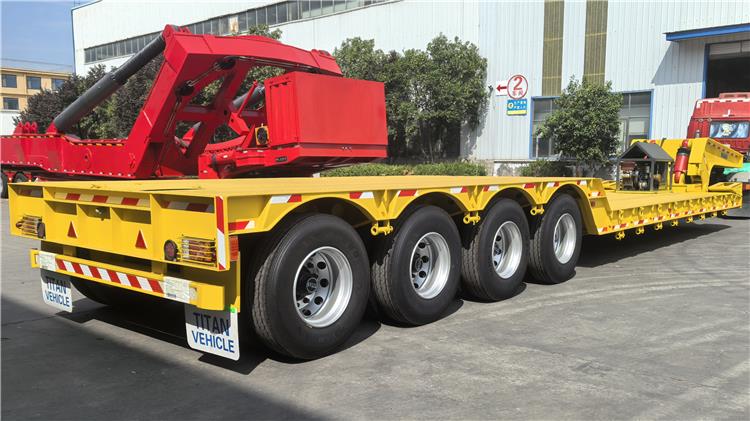

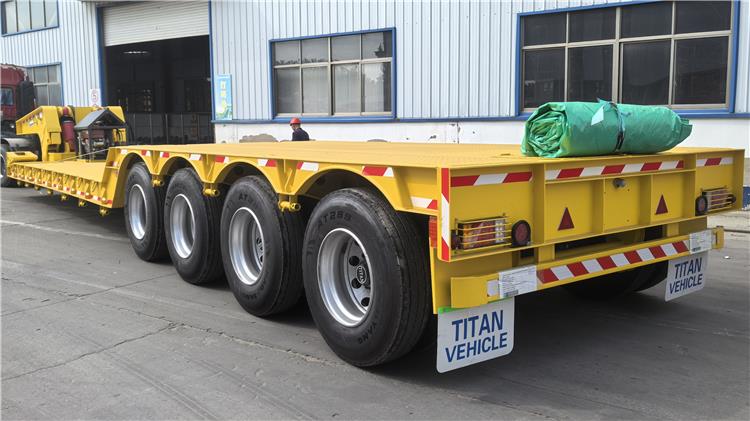

4 Axle 120 Ton Lowboy Trailer for Sale Near Me In Nigeria Lagos
4 Axle 120 Ton Lowboy Trailer for Sale Near Me In Nigeria Lagos
4 Axle 120 Ton Lowboy Trailer for Sale Near Me In Nigeria Lagos
4 Axle 120 Ton Lowboy Trailer for Sale Near Me In Nigeria Lagos

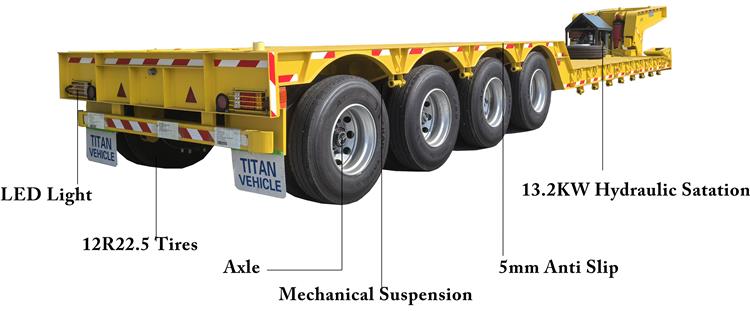

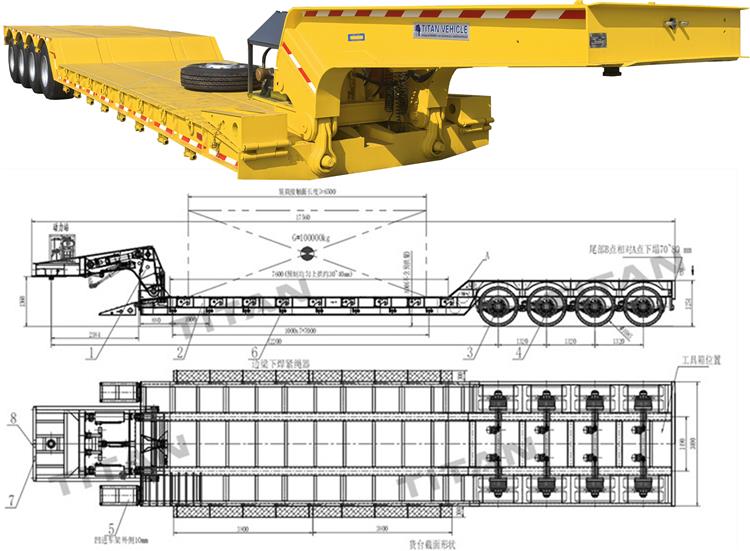

Dimension: 17500mm x 3000mm x 2500mm
Loading capacity(T): 120 ton
Axle: 4 axles, FUWA/BPW/TITAN Brand
Tire: 16 units, 12R22.5

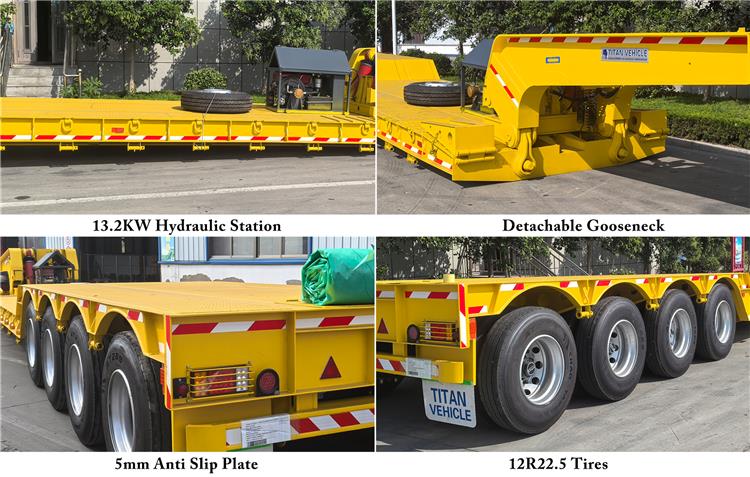

Hydraulic cylinder: 12KW diesel engine with hydraulic station
Suspension: Mechanical suspension
Spring leaf: 120(W)mmx16(Thickness)mmx10 layers
The bottom plate of lowboy trailers for sale near me in Nigeria is a 5mm thick patterned plate, which is thicker than the 4mm bottom plate on the market. The patterned plate can also increase the friction between the cargo and the bottom plate, making the cargo more stable.
Lowboy trailers for sale near me in Nigeria uses Q460C high-strength manganese steel, which has good toughness and a load-bearing capacity that is 5 times that of trailers made of Q345 steel, and has a service life of more than ten years.
The top of the beam of lowboy trailers for sale near me in Nigeria is 20mm thick and 200mm wide; the bottom is 20mm thick and 200mm wide; the middle height is 550mm and 14mm thick. The gooseneck of lowboy trailers for sale near me in Nigeria has a downward pressure design, which effectively prevents the vehicle from tilting when loaded, making it easier to climb. Double-layer vertical plates are used under the gooseneck for reinforcement, so that the deformation amplitude will be relatively small when the vehicle is overloaded.
The side beams of lowboy trailers for sale near me in Nigeria are all made of HG60 high-strength steel "H" design. The bearing capacity is twice that of other steels and will not deform within 10 years.
The crossbeam diagonal support of lowboy trailers for sale near me in Nigeria is a 6mm thick manganese plate, which uses a G-type bending plate. It replaces the channel steel crossbeam diagonal support and large scale of the container flatbed, but only increases the channel steel model. The disadvantage is that the bearing capacity is insufficient and it is easy to deform and break.
The suspension of lowboy trailers for sale near me in Nigeria is thickened, 8mm thick, and the center axis is also 70mm. And the suspension ribs are elongated, which can effectively prevent cracking and welding. We have reinforced the front, back, left and right sides of the suspension of lowboy trailers for sale near me in Nigeria, which can be used in all road conditions in Africa.
The brake pads used by lowboy trailers for sale near me in Nigeria are 16 tons, which are 220mm thick. The brake valves of lowboy trailers for sale near me in Nigeria are also the famous brand wabco. The wires of lowboy trailers for sale near me in Nigeria are also waterproof wires. They are all of superior quality, wear-resistant and durable.
