Nigeria Sinotruk Local Sales Center 2025 Howo New Model
The 3 axle chassis focuses on the transfer of containers, which can ensure a significant increase in the carrying capacity of the tri axle chassis for sale. The tri axle skeletal trailer can reach a maximum load capacity of 60 tons, enhancing the operational efficiency.
When comparing TITAN 3 axle chassis trailers with other brands, Nigeria customers usually find that TITAN skeleton semi trailer are more outstanding in terms of quality and load capacity, and can provide more cost-effectiveness for large-volume transportation.
The tri axle chassis for sale has enhanced load bearing performance and operational stability in structure, making an ideal solution for heavy duty logistics tasks. In addition, the tri axle skeletal trailer has efficient container transshipment capabilities, making highly adaptable and practical in application scenarios such as port transportation.
40Ft Skeleton Semi Trailer for Sale in Nigeria | 3 / Tri Axle Chassis Container Skeletal Trailer
40Ft Skeleton Semi Trailer for Sale in Nigeria | 3 / Tri Axle Chassis Container Skeletal Trailer

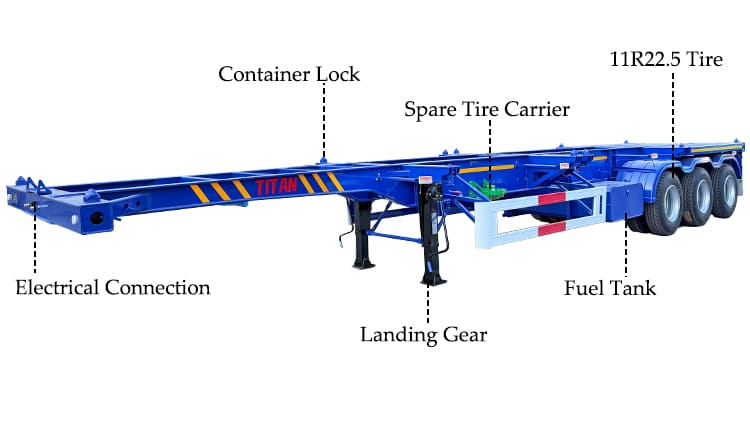

Model: 40 Ft Skeleton Trailer
Overall Dimension: 12500mm*2500mm*1500mm
Load Capacity: 60 ton

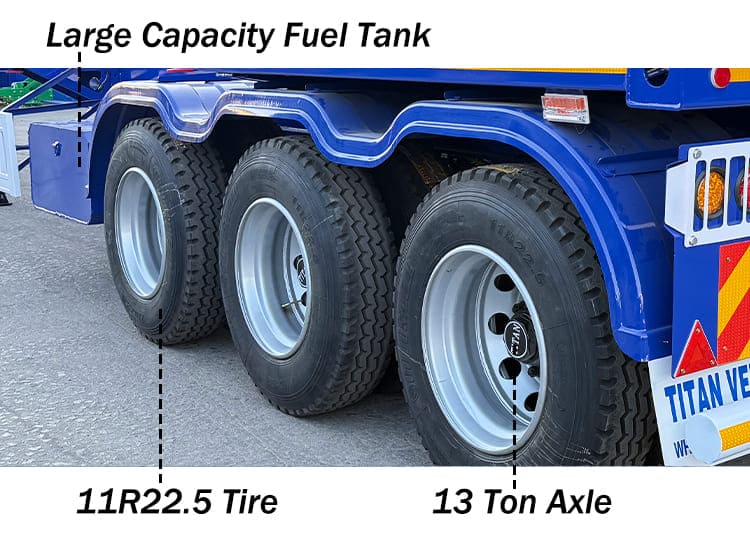

Axles: 3 axles, 13ton
Tire: 12 units, 11R22.5
Suspension: mechanical suspension
Leaf Spring: 10 layers
Landing Gear: 28 Ton
Bumper: 4mm thick
Lamp: LED Lamp with anti-theft net
The frame of the trailer skeleton is made of high-strength steel. The frame excellent tensile strength and yield strength provide strong support for transportation operations, ensuring container skeletal trailer can maintain good performance in frequent high-load work.
The solid beam structure not only adapts to the use environment of unpaved roads, but also effectively buffers the impact force during driving, thereby extending the service life of the 40ft skeleton trailer for sale. The cross member is firmly connected to the main beam through diagonal braces, and thickened high strength steel is selected to jointly build a stable and reliable structural frame to avoid deformation of the frame due to heavy loads or poor road conditions.

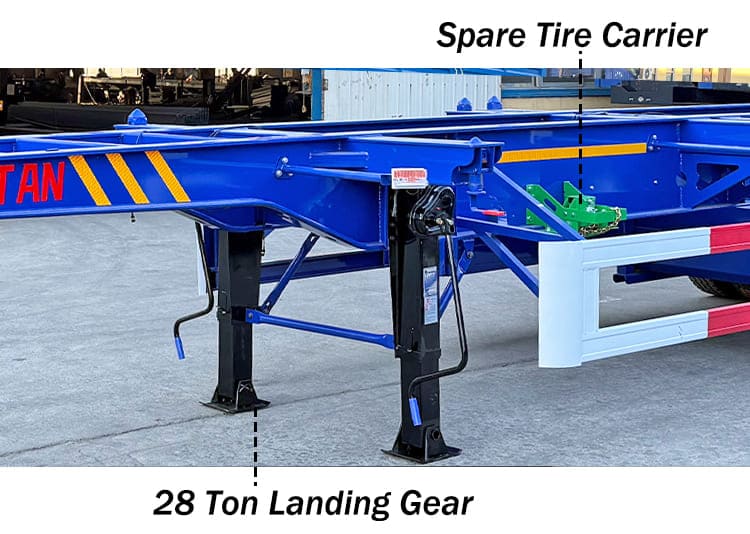

The 3 axle chassis landing gear has a high load-bearing capacity and can cope with various extreme load conditions. The tri axle chassis for sale is easy to operate and users can quickly master the use method. The landing gear has a wide base design that increases the contact area with the ground, making more adaptable to the diverse loading and unloading environment in Nigeria.
In terms of brand selection, the landing gear can also be equipped with the internationally renowned brand JOST to improve the trailer skeleton quality and durability.
The skeleton semi trailer design focuses on practicality and supports the simplified loading and unloading process of containers. The whole container skeletal trailer is equipped with a container lock, which is compatible with 20 ft and 40 ft standard containers, which not only improves the operating efficiency, but also ensures the consistency of the device with general container standards.
During the operation, users only need to align the container position and complete the lock matching to complete the fixation, which significantly reduces the difficulty and time cost of operation.
In terms of the suspension system, the 40ft skeleton trailer for sale adopts a mechanical suspension with a multi-layer leaf spring structure. The combination performs well in absorbing severe vibrations, can effectively reduce the impact on the container during transportation, and improve the stability and safety of the transportation process.
In order to enhance the impact resistance of the overall structure of tri axle chassis for sale, the front, back, left and right sides of the mechanical suspension are structurally reinforced, and a 70mm center balance pin is configured to better cope with the high-frequency impact caused by the rugged road surface of Nigeria.

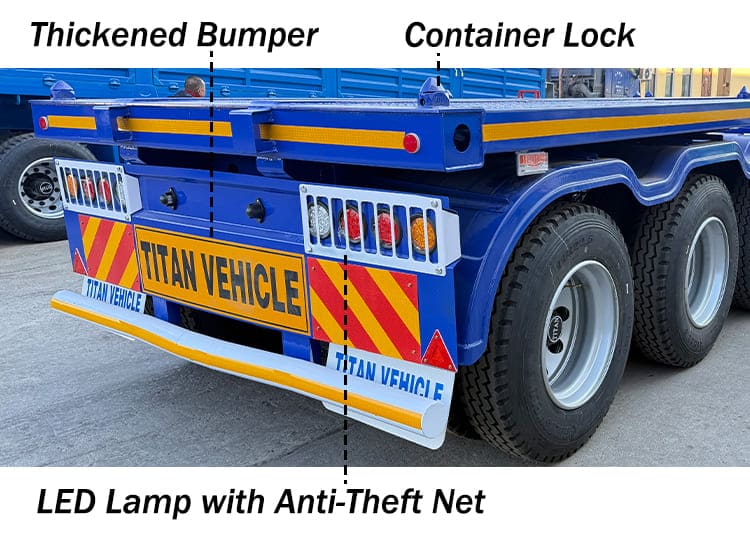

The rear of the 3 axle chassis body is equipped with a thickened bumper made of high-strength steel, which not only has excellent durability, but also has good corrosion resistance, and can maintain long-term stable use in harsh transportation environments such as humidity or high-temperature . In the event of a collision, the bumper can also effectively buffer the impact and reduce damage to the tri axle skeletal trailer.
TITAN adopts a distinctive packaging approach that sets apart from other skeleton semi trailer manufacturers. The transportation of container skeletal trailer can be carried out using standard shipping containers or via RORO vessels. Prior to delivery, all 40ft skeleton trailer for sale are treated with a protective wax coating and covered with waterproof tarpaulins. The process helps safeguard the tri axle chassis for sale from corrosion caused by exposure to seawater and salty sea air during transit, ensuring better protection and product integrity throughout the shipping process.
