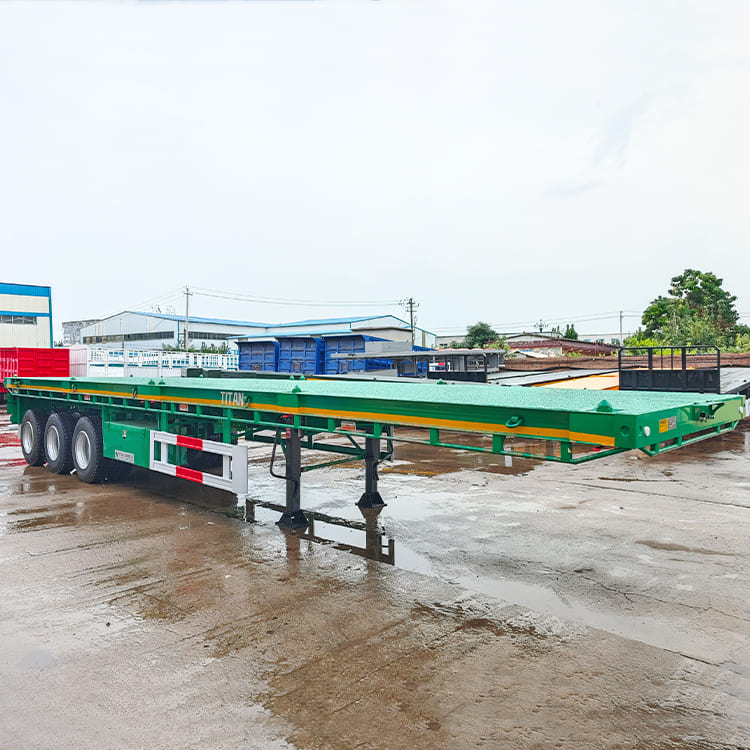

40Ft Flatbed Semi Trailer

Flatbed Semi Trailer Price: 9600USD

TITAN's 40 ft flatbed semi trailer is engineered to carry 20- and 40-foot containers with maximum efficiency, making it ideal for port-to-inland runs and intermodal transfers. When a load is secured on the 40 ft flatbed semi trailer, the chassis geometry and coupling layout channel weight evenly through the frame so stress concentrations are minimized and long-term fatigue is reduced.

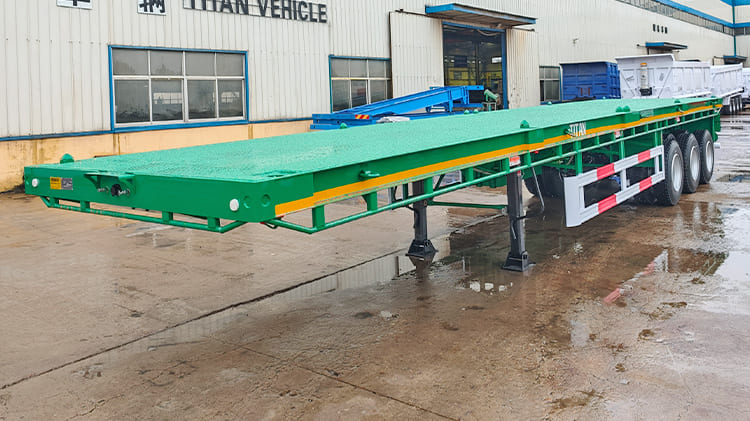

40Ft Flatbed Semi Trailer with 3 Axles for Sale in Nigeria

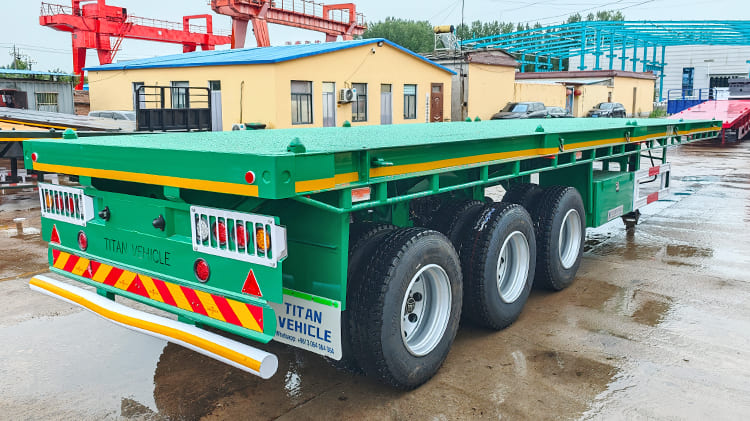

40Ft Flatbed Semi Trailer with 3 Axles for Sale in Nigeria

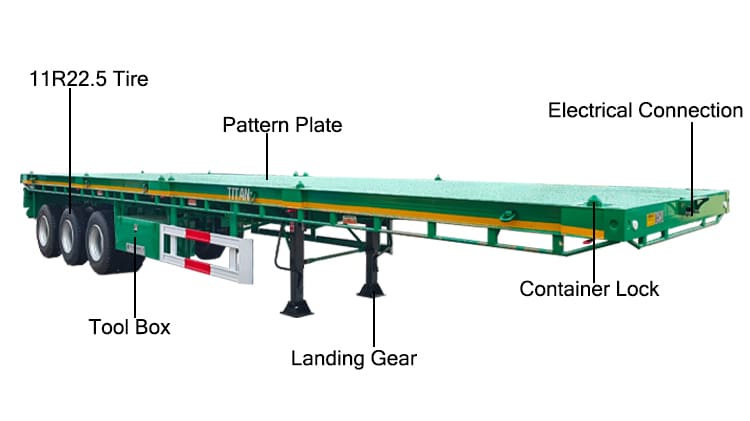

Specification of Flatbed Semi Trailer

Dimension: 12500mm*2500mm*1630mm

Loading capacity: 60 ton

Side Beam: 160mm high

Axles: 3 axles, TITAN brand, 13 ton

Tire: 11R22.5, 12 units

Suspension: mechanical suspension

Leaf Spring:10 layers

Bumper: 4mm thickened bumper

Landing Gear: 28 ton, JOST brand

Lamp: LED lamp with anti-theft net

Advantage of Flatbed Semi Trailer

Structural strength comes from a main beam fabricated from Q355 low-carbon, high-strength alloy steel. The backbone of the 40 ft flatbed semi trailer is designed to support heavy, concentrated loads without deformation.

Critical joints and frame sections are welded using automatic submerged arc welding to achieve deep penetration welds that are uniform and reliable. This welding method increases structural integrity and extends the service life of the flatbed semi trailer for sale under heavy duty operation.

High-stress zones such as the gooseneck receive additional reinforcement with double-layer steel plating. The doubled plates at the gooseneck help the flatbed semi trailer for sale resist bending or warping when carrying bulky, concentrated cargos or when negotiating rough terrain. These reinforcements reduce the risk of permanent frame distortion and contribute to predictable handling characteristics.

The 40ft flatbed semi trailer with 3 axles is finished with a powder coat followed by a high-temperature baking process. While costlier than conventional paint, this finish offers far better resistance to scratches, UV fading, and peeling, minimizing repaint cycles and lowering lifetime maintenance outlays for fleet operators. In Nigeria's mix of coastal humidity and dusty inland corridors, the durable finish helps the 40 ft flatbed semi trailer retain both functionality and appearance.

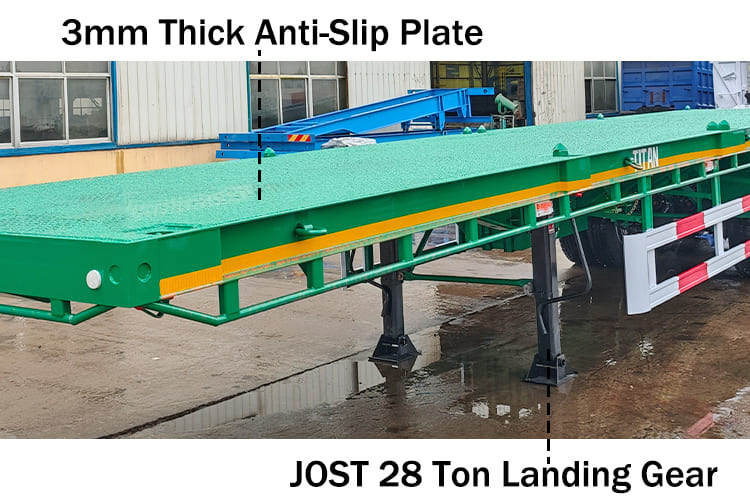

TITAN fits the flatbed semi trailer for sale with a 3 mm high-strength alloy steel floor plate that improves traction and resists abrasion. The textured surface prevents load migration during acceleration, braking, or cornering and preserves the deck against moisture and salt exposure—advantages that keep the flatbed semi trailer for sale operating reliably in corrosive environments common to Nigeria.

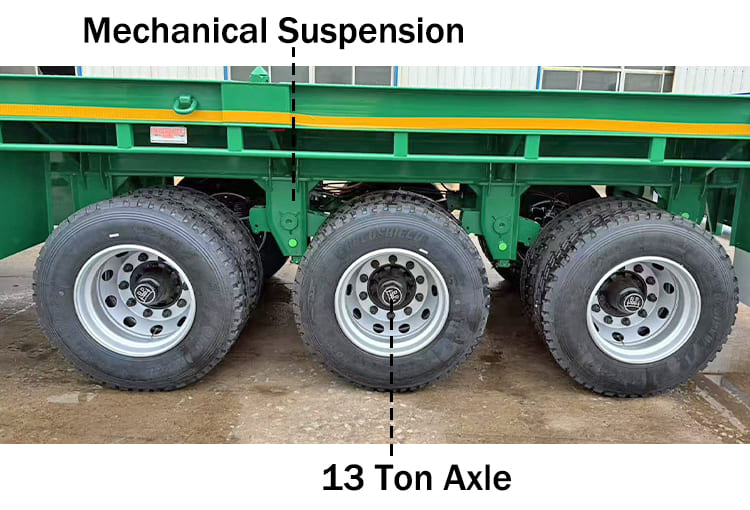

Running gear is engineered for durability and consistent performance. Each axle on the 40 ft flatbed semi trailer is rated at 13 tons and built to resist bending and fatigue, providing dependable support for high-capacity cargo.

The suspension uses a mechanical layout with multi-leaf springs and a 70 mm central balance pin; reinforcements on the front, rear, and flanks help absorb shocks and protect deck geometry. Together, axle ratings and suspension tuning ensure the 40ft flatbed semi trailer with 3 axles handles gravel tracks and uneven surfaces with stability.

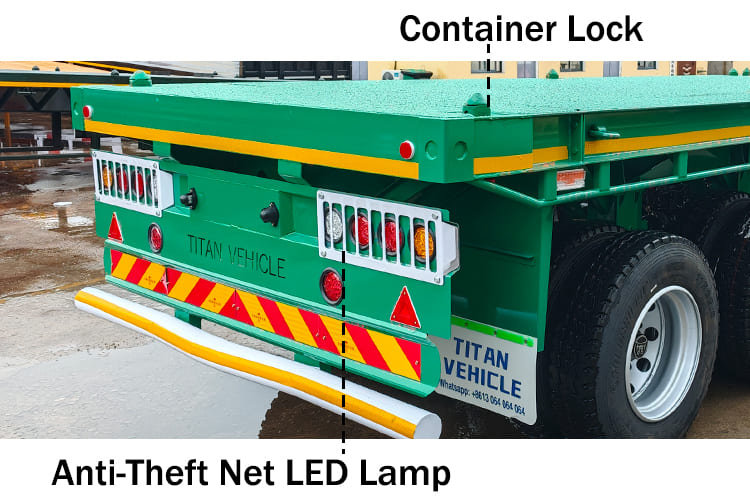

The flatbed semi trailer for sale is equipped with a full LED lighting suite that offers higher lumen output, longer life, and greater resistance to vibration and moisture than traditional bulbs. TITAN also integrates anti-theft measures into lighting enclosures to protect fixtures and wiring when the trailer is parked or transiting through higher-risk areas. These features enhance night-time visibility and reduce maintenance callouts for operators working in Nigeria.

By combining a reinforced steel backbone, advanced welding, a protective finish, and thoughtfully selected running gear, TITAN's 40 ft flatbed semi trailer and 40ft flatbed semi trailer with 3 axles present a dependable, low-upkeep solution for container transport. The flatbed semi trailer for sale is optimized to retain strength and appearance over years of heavy use, keeping fleets moving with lower lifecycle costs and fewer service interruptions.

Shipping of Flatbed Semi Trailer

Each 40ft flatbed semi trailer with 3 axles receives a comprehensive waterproof preservation before shipment. TITAN first coats exposed metal with a protective wax layer and then applies a full waterproof wrap, creating a dual barrier against seawater corrosion and humid salt air encountered during maritime transit. Depending on customer preference, the 40ft flatbed semi trailer with 3 axles can be exported in containers or carried on roll-on/roll-off vessels, giving logistics planners flexibility in delivery.
