45T 40Ft Container Side Loader Trailer

40Ft Container Side Loader Trailer Description:

Sinotruk Nigeria 45t 40ft container side loader trailer is used for loading and unloading 40ft container or 20ft container.

Sinotruk Nigeria 45t 40ft container side loader trailer have made work flexible, Save time and improve productivity for satisfied customers around the world.

We adopt World famous brand parts of the side lifter cranes.

45T 40 Ft Container Side Loader for Sale | Side Loader Price in Nigeria Ibadan

45T 40 Ft Container Side Loader for Sale | Side Loader Price in Nigeria Ibadan

45T 40 Ft Container Side Loader for Sale | Side Loader Price in Nigeria Ibadan

45T 40 Ft Container Side Loader for Sale | Side Loader Price in Nigeria Ibadan

45T Side Loader Trailer Specification：

Max. lifting capacity: 45Ton

Max.pressure of hydraulic system: 28Mpa

Dimension(L*W*H): 14100*2500*4200mm/7500*2500*4200mm

Axle: 3 axle* 13 ton (220mm brake pads)

Tire: 12pcs, 12R22.5

Suspension: Heavy duty type mechanical spring suspension

KingPin: 3.5 inch bolted type

Braking system: WABCO Emergency valve

Landing gear: JOST

Tow Chain: lgus (imported)

Power source: Power take-off (equipped)

Hydraulic pump: Gear type Casappa Italy

Direction control valves: AMCA Holand

Remote Control: NBB Germany

Advantage:

1. Timesaving and improve efficiency: Sinotruk Nigeria container side laoder can be productive all day, enabling loading, unloading and transporting containers by itself easily.

2. Flexible solutions: With the Sinotruk Nigeria container side laoder , you get closer and can lift between trailers safely and with high precision.

3. Famous WABCO braking valve, JOST landing gear for the main chassis container skeleton trailer

4. Famous NBB Germany Remote Control, easy to operate

5. Sinotruk Nigeria 40ft container side laoder  adpots wireless remote control technology, loading container just takes 10 mins.

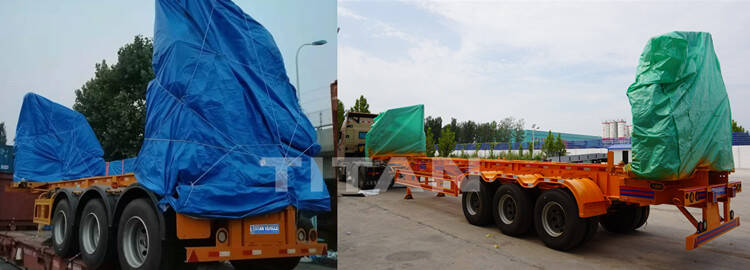

Through this video below, you can learn about different types of container side loader trailers, as well as the process, testing, packaging and customer feedback, etc.

Welcome to leave your inquiry!

We will provide more details, price, catalog, drawing, videos for you!
