Nigeria Sinotruk Local Sales Center 2025 Howo New Model

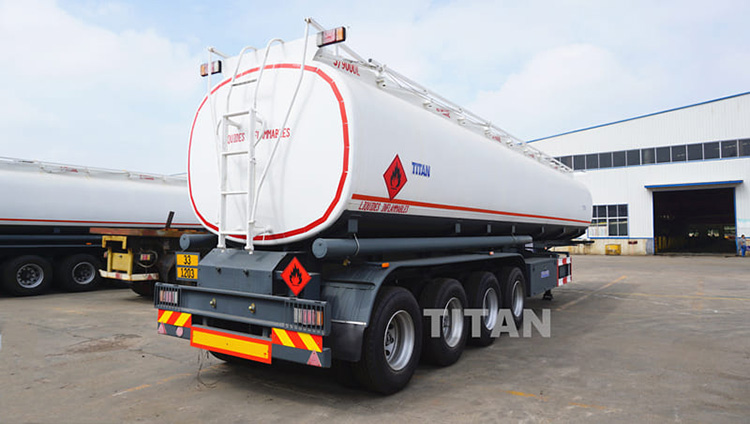

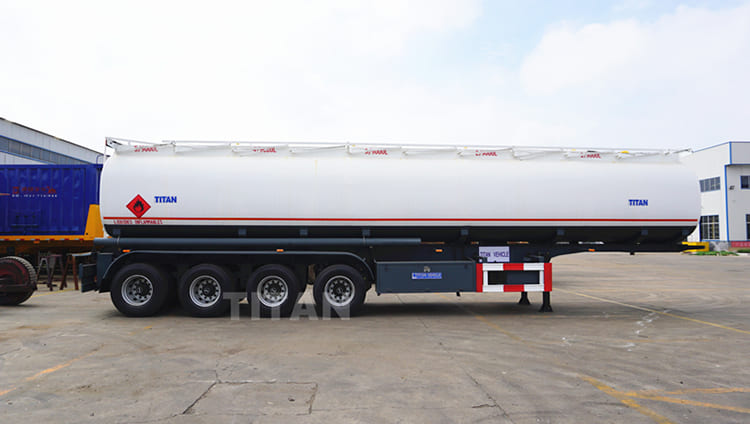

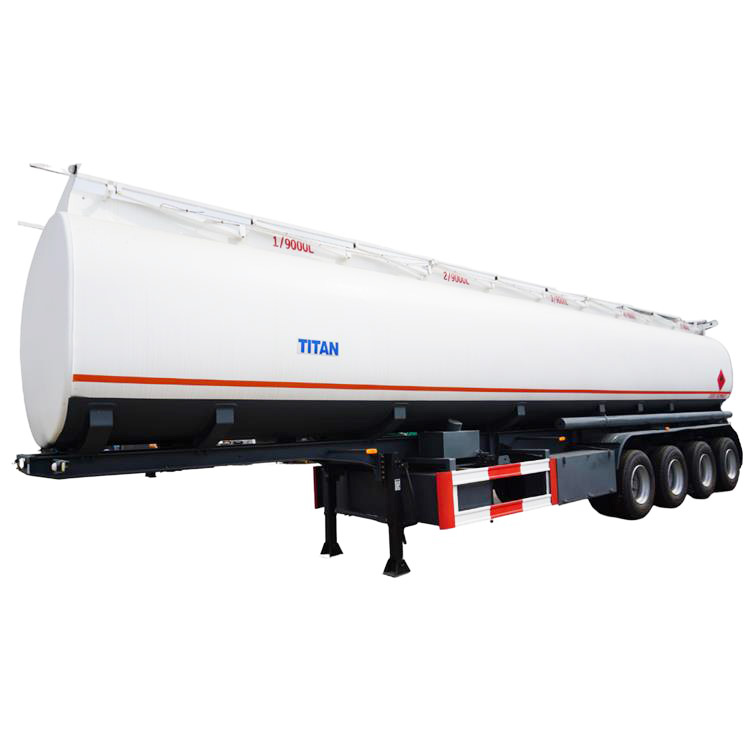

The design of the 50000 liters fuel tank semi trailer is very excellent. Because of the road conditions, we use the most suitable tires, which have a good shock absorption effect and ensure driving safety and comfort. The fuel tanker is a kind of vehicle for transporting liquid and gas fuels on the road. of motor vehicles.
It is mainly used for the transportation and storage of petroleum derivatives such as gasoline, diesel oil, crude oil, lubricating oil and coal tar. Generally, the capacity is relatively large, and it is divided into thermal insulation or non-thermal insulation, pressure-resistant or non-pressure-resistant.
Sinotruk Nigeria uses Q345 high strength steel to produce the 50000 liters fuel tank semi trailer,which is the best material to fuel tank trailer, the thickness is 5 mm,and we use more advanced longitudinal welding technology to reduce the weld seam and make the tank stronger.
Fuel Tank Price | 50000 Liters Fuel Tank Semi Trailer for Sale in Nigeria Onne
Fuel Tank Price | 50000 Liters Fuel Tank Semi Trailer for Sale in Nigeria Onne
Fuel Tank Price | 50000 Liters Fuel Tank Semi Trailer for Sale in Nigeria Onne
Dimension: 11500mm * 2500mm *3700mm
Tare Weight (semi trailer): About 8000-12800kg
Total volume(l): 50000l
Tank Body Material: 5mm or 6mm/Q235 carbon steel
End plate: 5mm or 6mm/Q235 carbon steel
Manhole Cover: Carton steel
Bottom Valve: Aluminum API Pneumatic Bottom Valve
Compressor: BOHAI 10m³/12m³ or other brands
Discharging Valve: Diameter is 3 or 4 inch
Compartments: Optional
Discharging Pipe: 4 inch rubber hose,2pcs,6m/each
Cat Walk: With (common model or special design)
Main beams: Welded design or special design I beam, connected by bolts and nuts Q345 carbon steel material
Axle: 4 axles,12T/13T/16T,BPW/ FUWA/ Sinotruk Nigeria brand

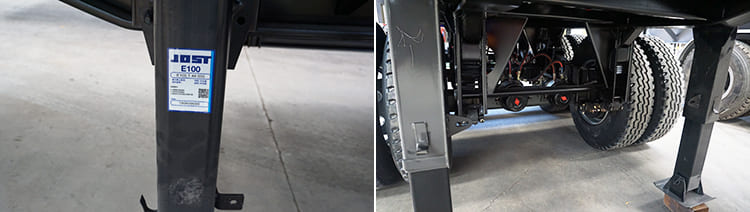

Landing Gear: JOST(D200T) or China brand 28T
Kingpin: JOST 2.0 or 3.5 inch bolt-in king pin
Suspension: Air Suspension
Leaf Spring: 90(w)mmx13(thickness)x10layers or 10mm x12mmx12 layers
Rim: 9.00-22.5/8.00-20/8.5-20 Chinese brand
Tire: 12.00R22.5/315.80R22.5/11.00R20/12.00R20 brand can be optional
Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layer of top coats.
Accessories: One standard tool box
Shipping Terms: By bulk cargo, RORO or 40HQ containers
1. With safety devices: the manhole is an explosion-proof large cover. The bottom outlet of the tank is equipped with an emergency shut-off valve.
2. The tank body is automatically welded by an advanced large-scale special welding machine.
3. The Sinotruk Nigeria tanker body is longitudinally welded. Ensure the safety of the tanker and increase the service life.
4. Water filled test equipment Water tank: To ensure the high sealed of tank body and avoid the leaks oil.
5.There are ladders at the front and rear of the vehicle, and there are guardrails and anti-skid plates above the walking platform to ensure the safety of the staff.
Through this video, you can learn about different types of fuel tanker trailers, as well as the process, testing, packaging and customer feedback, etc.
