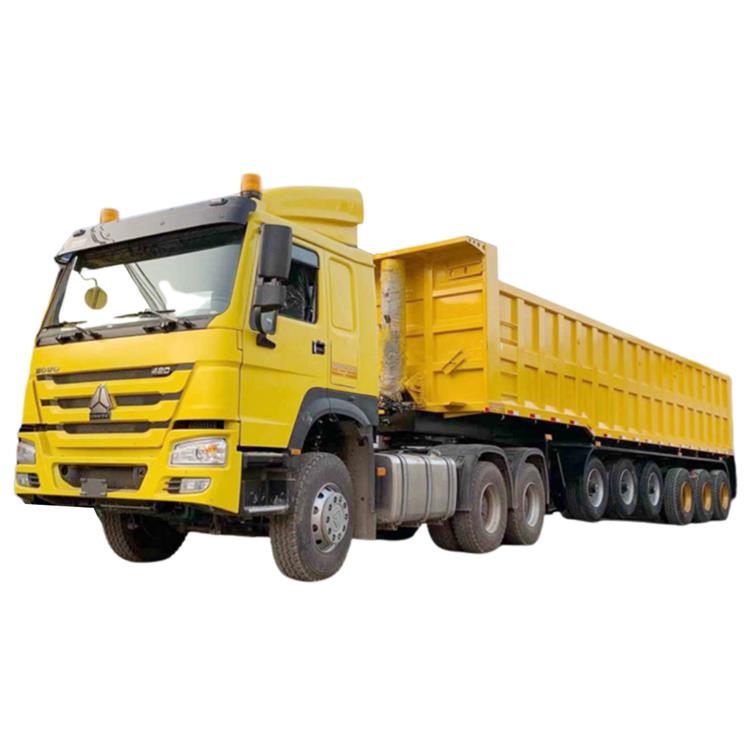

6 Axle Dump Semi Trailer

Product Description:

Sinotruk Nigeria provide the 6 axle dump truck trailer is an ideal transport tool.

The 6 axle dump trailer by Sinotruk Nigeria the accessories all used international famous brand and other China famous brand, the configurations adopts the best, and the main beam material also used high-strength steel, these make the 6 axle dump truck increase longer serivce life. And our dump truck trailer can bring more benefits to customers, such as: improve work efficiency, save labor cost and save unnecessary maintenance costs.

6 Axle Dump Truck Semi Tipper Trailer for Sale in Nigeria Akassa

6 Axle Dump Truck Semi Tipper Trailer for Sale in Nigeria Akassa

6 Axle Dump Truck Semi Tipper Trailer for Sale in Nigeria Akassa

Specification:

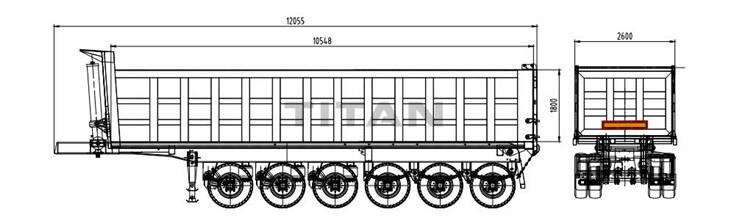

Overall dimension: 12000mm * 2600mm *1800mm

Volume: 45CBM

Axles: 6 axles

Tire: 24 units

Suspension: Heavy duty mechanical suspension

Tipping system: 196 hydraulic cylinder

King pin: 90#

Landing gear: JOST

Brake system: WABCO

Electrical system: 24V, LED lights

Components of the hydraulic lifting system of 6 axle dump trailer:

The 6 axle dump truck trailer train is mainly composed of a tractor and a semi-trailer. The tractor is connected by a saddle and a semi-trailer to form a semi-trailer train. The semi tipper trailer hydraulic lift system is mainly composed of power take-off (transmission), hydraulic pump, lift valve, pneumatic control valve, limit valve, hydraulic cylinder, hydraulic oil tank, high (low) pressure oil pipe and so on.

The high-pressure oil output by the gear pump enters the poppet valve through the high-pressure oil pipe.

The lift valve sends high pressure oil to the oil cylinder or discharges it into the hydraulic oil tank under the control of the air control valve, thereby achieving the functions of lifting, stopping and lowering the end dump trailer hydraulic oil cylinder.

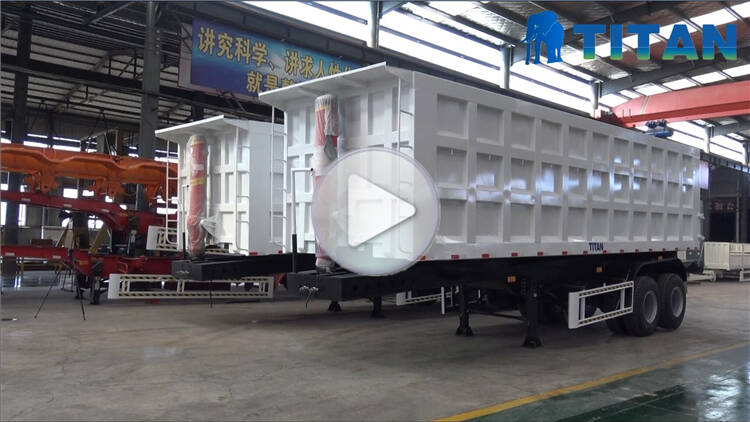

Through the video below, you can learn about different types of tipper semi trailers, such as u shape dump semi trailer, side tilted dumper trailer, container tipper trailer, tipping chassis trailer. And the process, testing, packaging and customer feedback, etc.

Welcome to leave your inquiry!

We will provide more details, price, catalog, drawing, videos for you!
