80 Ton Semi Lowbed Trailer

80 Ton Semi Lowbed Trailer Price: 14500USD

The 80 ton semi low bed trailer loading ramps is made by high strength steel, with high loading capacity, will not happen to the deformation when carry heavy equipment.

80 Ton Semi Lowbed Trailer | Low Bed Semi Trailer Truck Price In Nigeria

80 Ton Semi Lowbed Trailer | Low Bed Semi Trailer Truck Price In Nigeria

80 Ton Semi Lowbed Trailer | Low Bed Semi Trailer Truck Price In Nigeria

80 Ton Semi Lowbed Trailer | Low Bed Semi Trailer Truck Price In Nigeria

80 Ton Semi Lowbed Trailer | Low Bed Semi Trailer Truck Price In Nigeria

Video of Semi Lowbed Trailer

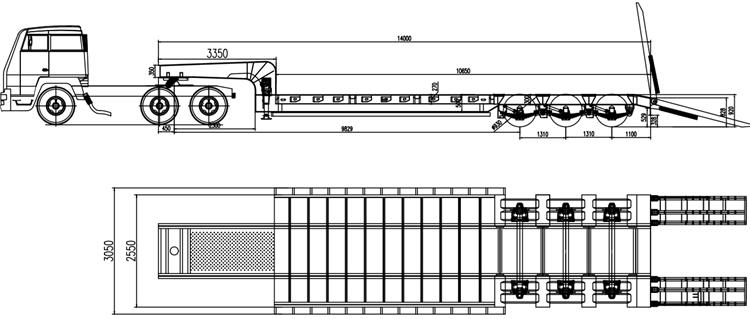

Specification of Semi Lowbed Trailer

Overall dimension: 16000mm * 3000mm *3400mm

Loading capacity(T): 40-100T

Axle: 13T/16T, FUWA/BPW/TITAN Brand

Rim: 8.0-20

Tire: 11.00R20

Suspension: Mechanical suspension

Spring leaf: 90(W)mmx13(Thickness)mmx10 layers

Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)

Landing gear: JOST brand

Main beam: Height: 500mm, Upper plate: 20mm, Middle plate: 12mm, Lower plate: 20mm, Material: Q345B steel.

Bottom Platform: 5mm thick checkered plate

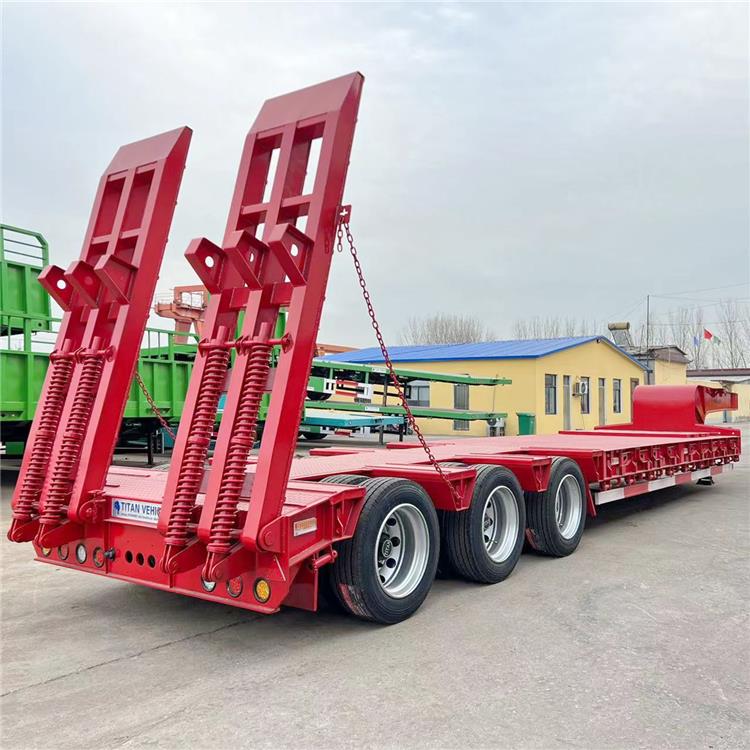

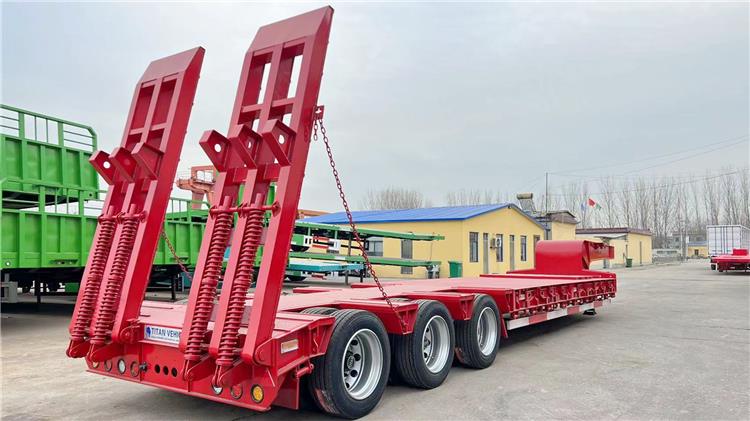

Ramp: Spring ramp

Light: LED light
