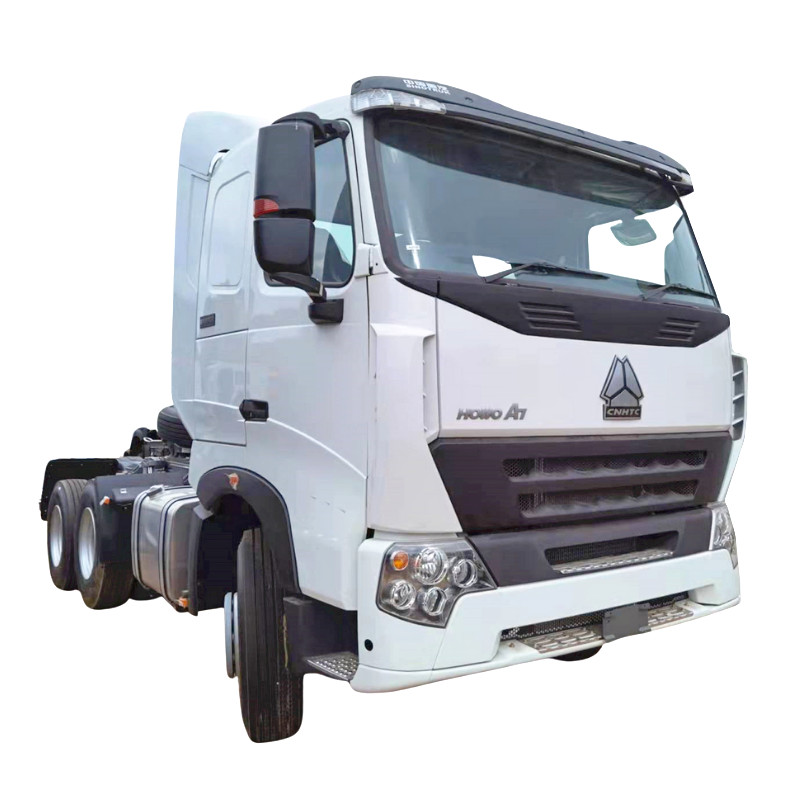

Howo A7 Tractor Truck 6x4

Product Description:

SINOTRUK are a professional heavy truck export company, is the best biggest supplier, where you can enjoy the most preferential price, best quality guarantee.

This Sinotruks Truck  is a new generation of high-end heavy truck products newly developed by SINOTRUK using core assembly technology. Its appearance is high and overwhelming, showing the leadership of the King of Highway.

A7 Howo Tractor Head 6x4 excellent power, stable and reliable performance, economy and comfort reach the international level. its safety, reliability and intelligence level are in line with international standards. There are several personalized configuration options. lt is suitable for highly organized transportation and high-end logistics in trunk line swap.

We comply with the credibility of the first commitment to pay attention to every detail, understand what customer needs well, and strive to produce the most suitable for heavy-duty trucks.

A7 Howo Tractor Head 6x4 Sinotruks Truck in Nigeria for Sale

A7 Howo Tractor Head 6x4 Sinotruks Truck in Nigeria for Sale

Specification:

Engine:

Engine model: WD615.47, Euro II emission standard, 4 stroke injection diesel engine, 6 cylinders in-line with water cooling, turbo-charging & inter cooling, mechanical high-pressure oil pump system

Maximum output: 371PS (273kW) at 2000 rpm

Maximum torque: 1560Nm at 1200-1500rpm

Bore: 126mm

Stroke: 130mm

Displacement: 9.726L

Clutch: SINOTRUK’s 430C diaphragm spring clutch, hydraulically operating with air assistance

Transmission: model HW19710, 10 forward and 2 reverse

Ratio: 4.42   4.8  5.73

Front Axle: New HF9 series, with drum brake system

Rear Axle: HC16 pressed axle housing, single reduction and differential locks between axles; with drum brake system.

Steering:ZF8118, hydraulic steering with power assistance

Ratio: 22.2-26.2:1

Wheels&Tyres：

Rims: 8.5-20,10 hole-steel

Types: 12.00R20 Option:12R22.4,12.00-24,12.00-20,13R22.5, 315/80R22.5, 295/80R22.5, 11.00R20

Driver'sCab: A7-P Cabin, Long cab, all steel forward control, 55°hydraulic tilting to the front, 2-arm windscreen wiper system with 3 speeds,VDO electrical control system, laminate windscreen, with casted-in radio aerial, adjustable driver’s seat and rigid adjustable co-driver’s seat, heating & ventilation system, with stereo radio/cassette recorder, sun visor, safety belt, air conditioner

Dimensions inmm:

Wheel base (mm): 3200+1350

Front wheel track (mm): 2022/2041

Rear wheel track (mm):1830/1830

Overhang(front/rear) (mm):1500/725

Approach angle(°):16

Departure angle(°):70

Overall Dimension (mm): 6800x2496x3230

Weight in kg:

Rated loading capacity at fifth wheel (kg):15660

Dead weight (kg):9210

Gross vehicle weight (kg):25000

Gross combination weight（kg）：7000

Front axle loading capacity (kg):9000

Rear axle loading capacity (kg):2*16000

Performance:

Maximum driving speed(km/h):102(reference data)

Maximum gradeability (%):33

Minimum ground clearance(mm):265

Minimum turning radius (m):18.5

Fuel consumption(L/100km):40(reference data)

Advantage:

1. The power output is linear, making the engine and gearbox give full play to the best condition

2. The high-top row half-seat bag is the strength of this car, and the seat bag has a good sense of envelopment.

3. The turning radius is small, the direction change is accurate, and the steering wheel does not have too many virtual positions. The accelerator and brake respond promptly, and the driving safety is high.

4. In addition to its strengths in terms of comfort, it also has outstanding performance in appearance, power, space, handling, fuel consumption, etc.
