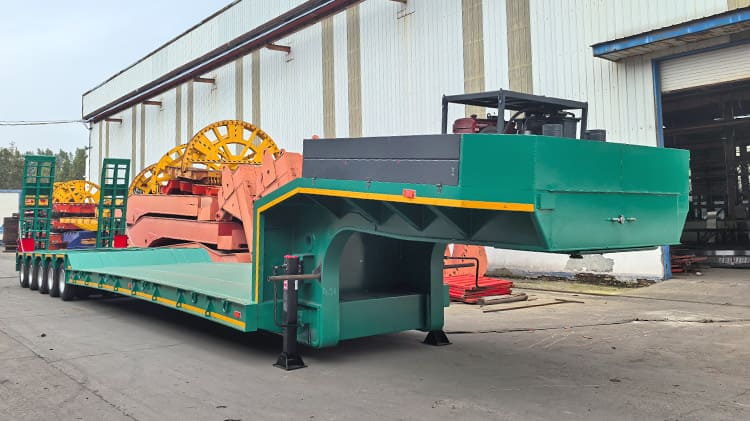

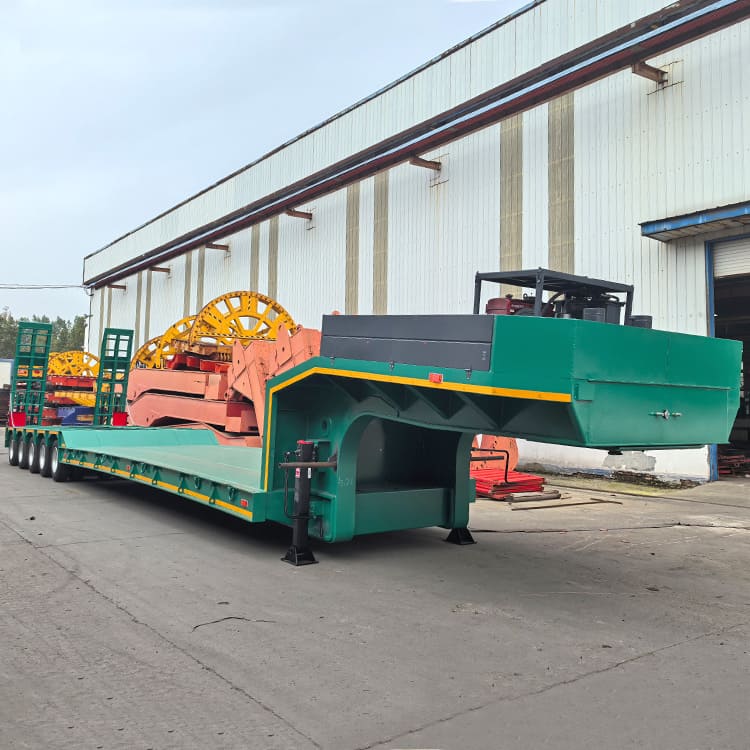

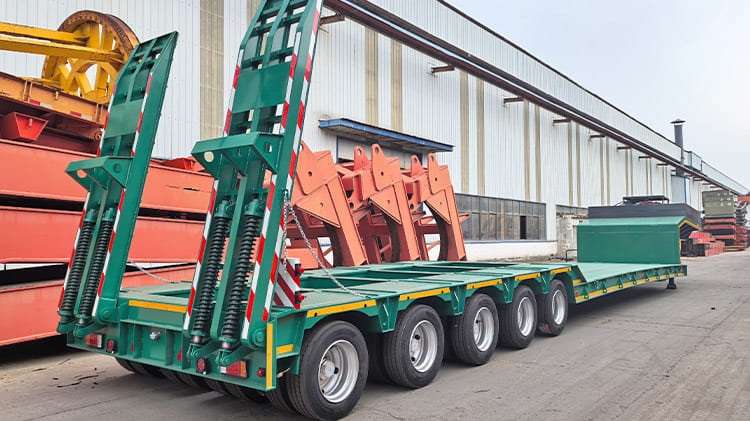

Multi Axle Low Bed Trailer

Multi Axle Low Bed Trailer

For companies that value long-term reliability, safety, and adaptability, the multi axle low bed trailer stands out as an essential investment. In Nigeria, this type of equipment has become a cornerstone for logistics enterprises handling heavy-haul operations, delivering both stability and high efficiency under demanding transport conditions.

Spec of Hydraulic Low Bed

Usage: transport heavy duty cargo/equipment

King pin: 3.5 inch bolt-in king pin

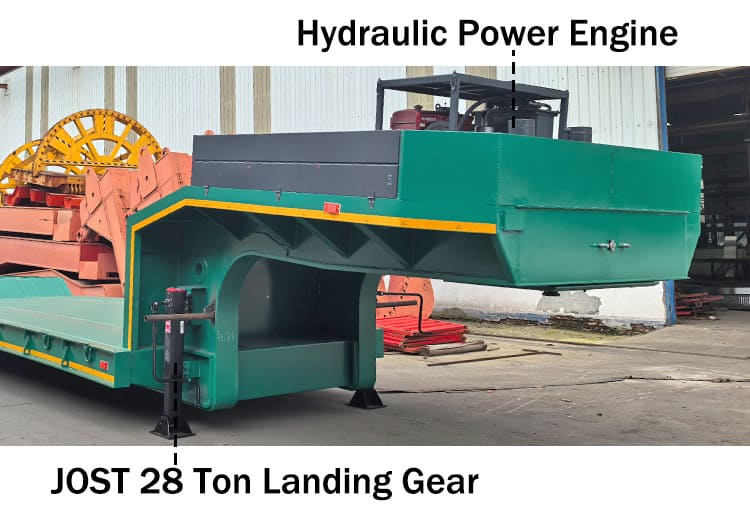

Hydraulic Power Station: 13.2Kw

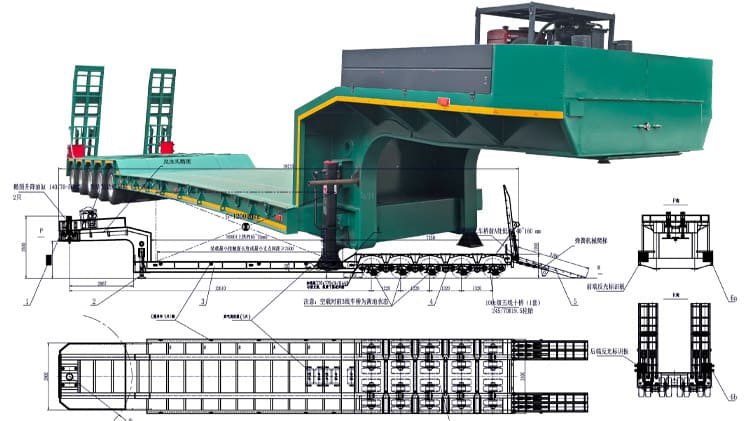

Dimension: 19215mm*3100mm*2600mm

Max Payload: 120 tons

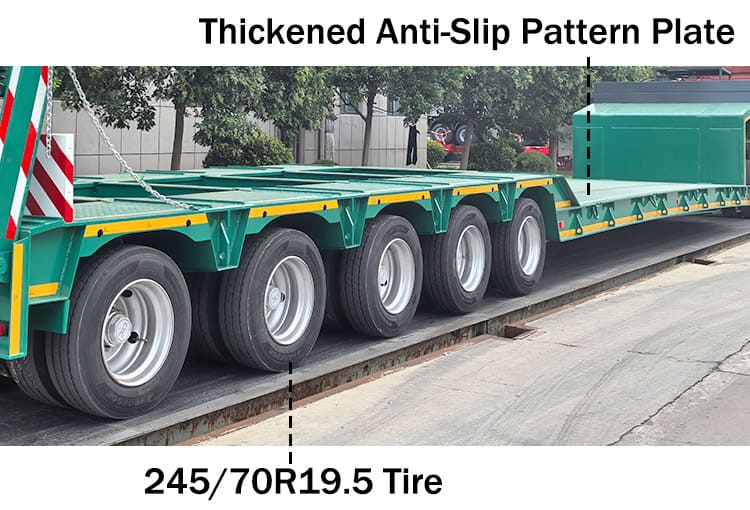

Tires: 41 units, 245/70R19.5 Tire

Axle: 5 line 10 axles, 90T

Advantage of Low Bed Trailer

The strength of the hydraulic low bed lies not only in its exceptional load-bearing capacity but also in the precision and craftsmanship evident in its construction. Built from high-tensile structural steel, the chassis of the hydraulic low bed trailer is engineered to withstand torsional forces and stress caused by uneven or asymmetrical loads. This reinforced structure ensures even distribution of weight through the deck and primary beams, maintaining structural integrity and preventing deformation during long-term use.

Whether transporting massive industrial machinery, power generation units, or prefabricated components, operators consistently prefer the multi axle low bed trailer for its outstanding combination of strength and versatility. Compared with standard heavy-haul systems, it delivers greater adaptability, especially when navigating tight sites or uneven terrain.

At the core of the hydraulic low bed trailer is its advanced suspension and axle system. Each axle line features independently controlled hydraulic suspension that allows operators to fine-tune deck height, adjust balance, and maintain consistent ground contact across all wheels. This intelligent system ensures superior stability and reduces the impact of road irregularities, protecting both cargo and critical mechanical parts.

In Nigeria, where operators often face uneven roads and fluctuating driving conditions, this design not only secures delicate or high-value cargo but also significantly extends the working life of the hydraulic low bed itself.

Maneuverability is another hallmark of the multi axle low bed trailer. Equipped with pendulum axles and steerable hydraulic wheel groups, it provides exceptional directional control. Each axle can rotate individually or in coordinated synchronization, supported by hydraulic cylinders and damping systems that deliver precise steering response.

Even under full load, the hydraulic low bed trailer maintains predictable handling and stability. For logistics companies in Nigeria, where projects frequently take place in confined or congested sites such as ports, industrial yards, and construction corridors, this responsive control ensures accurate positioning and safe, efficient transport.

Flexibility further enhances the appeal of the hydraulic low bed. The modular configuration allows multiple units to be joined lengthwise to extend load capacity or connected side by side to widen the platform as needed. Heavy-duty couplings and interlocking pins keep the combined sections firmly secured, eliminating unwanted movement and ensuring a unified structure.

For operators in Nigeria, this capability means that a single multi axle low bed trailer can adapt to transport everything from turbine blades to refinery columns and oversized equipment, reducing fleet costs while improving logistical efficiency.

Safety and stability are further reinforced through the suspension technology. Active hydraulic leveling maintains an even deck height regardless of uneven load distribution or changing terrain. Operators can lower the platform for easier loading or raise it to navigate obstacles, achieving a low center of gravity that enhances balance throughout transit. This adaptability allows the hydraulic low bed trailer to perform smoothly across diverse conditions, from paved highways to rugged off-road routes common in industrial regions of Nigeria.

The control and monitoring systems embedded within the hydraulic low bed elevate performance to a new level. Integrated digital sensors track deck height, axle stroke, and weight distribution in real time, feeding accurate data to the operator’s dashboard. This continuous monitoring ensures synchronized performance between the steering, suspension, and hydraulic systems.

Shipping of Hydraulic Low Bed

To ensure peak condition upon arrival, every hydraulic low bed trailer undergoes a rigorous protection process before delivery. The surface is coated with an anti-corrosion wax layer that guards against oxidation and weather exposure.

Following this, a waterproof tarpaulin wrapping is applied to shield the frame from moisture, sea air, and transportation abrasion. These layered protective measures guarantee that each hydraulic low bed reaches its destination in Nigeria fully protected, and ready for immediate deployment in heavy-duty applications.
