Nigeria Sinotruk Local Sales Center 2025 Howo New Model

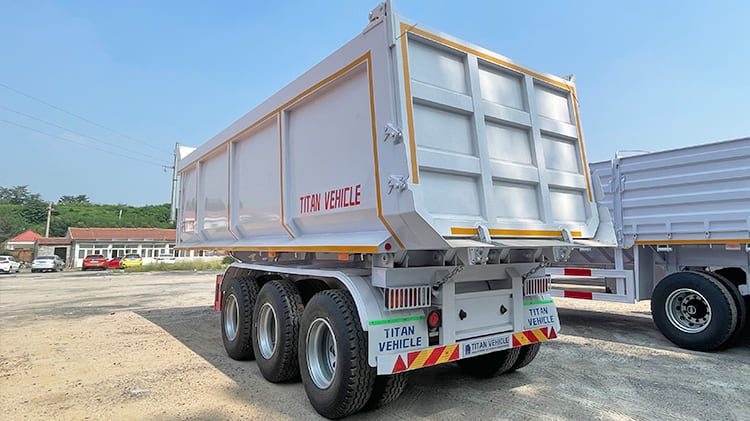

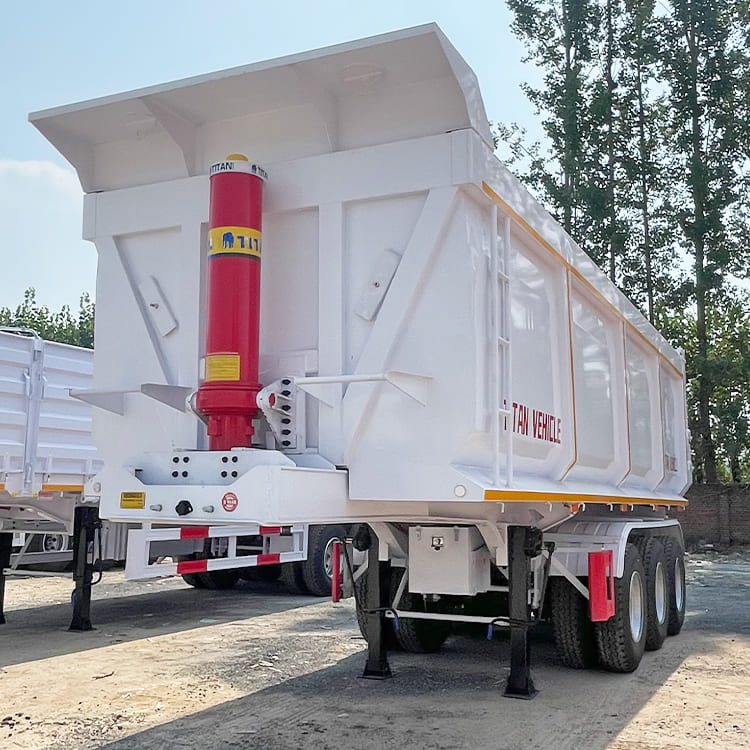

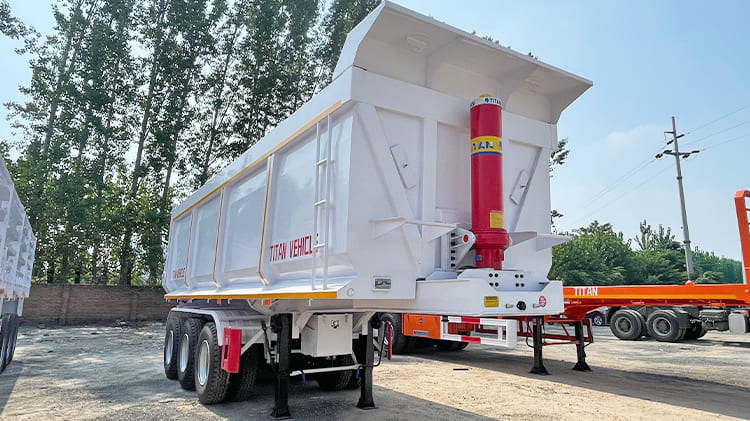

The tipper trailer is engineered as a robust and efficient transport solution for regional logistics, especially in markets where construction aggregates, sand, ore, and bulk materials must be moved safely and efficiently. Its structural layout allows stable performance during both loading and tipping, ensuring consistent efficiency across demanding work environments in Nigeria.
Dimension: 8500mmx2500mm x3950mm
Load Capacity: 60 ton
Tipping System: hydraulic cylinder system
Landing Gear: 28 ton
Axles: 3 axles, 13ton, TITAN brand
Kingpin: JOST brand 2.0 /3.5inch
Leaf Spring: 10 layers
Suspension: mechanical suspension
Lamp: LED Lamp with protective net
Tire: 12 units, 12R22.5

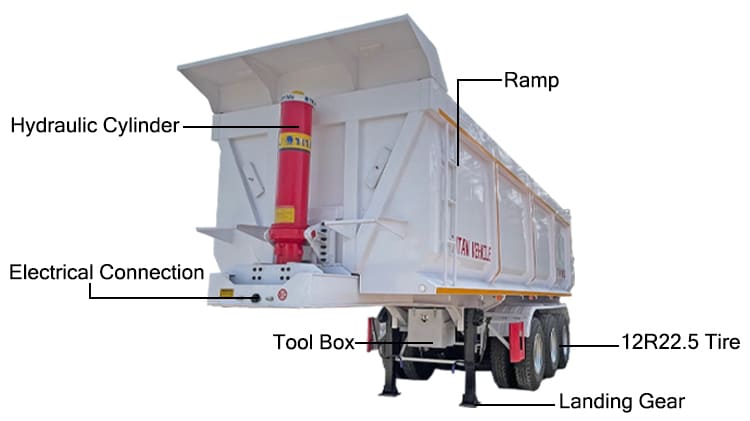

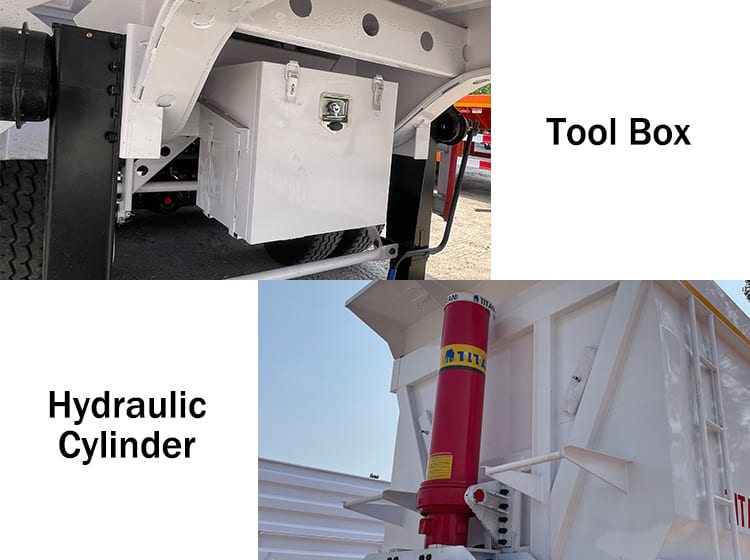

A major operational advantage of the tipper trailer for sale lies in its advanced hydraulic tipping system. This system is designed to deliver smooth, powerful lifting with minimal manual intervention.
By shortening unloading cycles and reducing labor intensity, the hydraulic mechanism significantly improves productivity on busy construction sites. In high-frequency operations common across Nigeria, faster discharge times translate directly into improved vehicle utilization and lower operating costs.
The structural core of each 3 axle tipper trailer for sale is formed by a heavy-duty main beam manufactured from high-strength T700 steel. Compared with conventional structural steel, this material offers superior tensile strength and resistance to deformation.
Even when carrying dense or uneven cargo, the chassis maintains its original geometry, preventing twisting or long-term fatigue. This ensures that the tipper trailer remains structurally stable throughout prolonged service under heavy load conditions often encountered in Nigeria.
To further enhance lateral strength, the frame incorporates three reinforced side-beam support columns. These components are strategically positioned to resist side pressure during cornering, braking, or travel over uneven roads. Their presence improves load containment and minimizes structural stress, making the new tipper trailers for sale especially suitable for rough transport routes, construction zones, and quarry access roads.

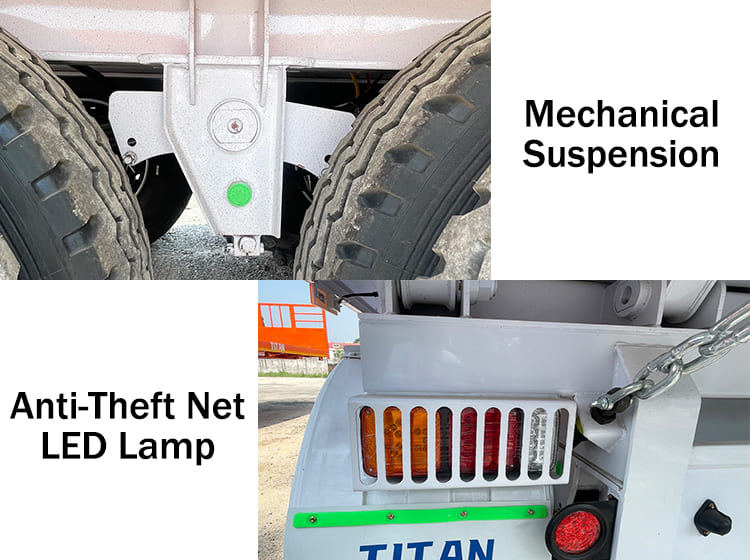

The suspension system of the tipper trailer for sale is built around a mechanical configuration using ten-leaf high-strength steel springs. This design provides excellent shock absorption and vibration control, protecting both the trailer structure and the transported materials.
On gravel roads, uneven surfaces, or long-haul routes common in Nigeria, the suspension system reduces wear on key components and helps maintain long-term reliability while improving driving stability.
Braking safety is another critical consideration in the design of the 3 axle tipper trailer for sale. The trailer is equipped with 16-ton-rated brake pads that provide strong and responsive braking force under full load.
Combined with high-pressure pneumatic pipelines and reinforced connectors, the braking system ensures consistent performance even during emergency stops or downhill driving. This level of control is essential for safe operation of the tipper trailer in variable road and weather conditions across Nigeria.
A flip-type landing leg is installed near the rear section of the tipper trailer for sale to support the structure during unloading operations. This component helps distribute load forces more evenly during tipping, reducing localized stress on the main beam. By minimizing frame strain during repeated unloading cycles, the landing support extends the overall service life of the new tipper trailers for sale and preserves chassis integrity.
At the coupling point, a heavy-duty traction plate manufactured from a single 12 mm steel sheet ensures a strong and stable connection between the tractor unit and the tipper trailer. This one-piece design improves force transmission, reduces impact shock during turning or uneven movement, and enhances overall driving stability. Operators benefit from smoother handling and improved safety, particularly during long-distance operations within Nigeria.
Before delivery, every 3 axle tipper trailer for sale undergoes a comprehensive anti-corrosion treatment. All exposed metal surfaces are coated with a protective wax layer to block moisture and oxidation. The trailer is then fully wrapped with heavy-duty waterproof tarpaulin, providing additional protection against humidity, salt air, and temperature changes during sea transport. This dual-layer protection ensures that each tipper trailer for sale arrives in excellent condition, ready for immediate deployment and long-term service in demanding operating environments.
