Tri Axle 20FT Container Chassis Trailer

Product Description:

20ft container chassis trailer is mainly used for container transportation supporting ships, ports, shipping lanes, highways, transit stations, bridges, tunnels, and multimodal transport.

Sinotruk Nigeria tri axle container chassis trailer can be customized to 20/40/45/53 feet. We also provide customers with different options: 2 axles, 3 axles, 4 axles, airbag suspension, spring steel suspension.

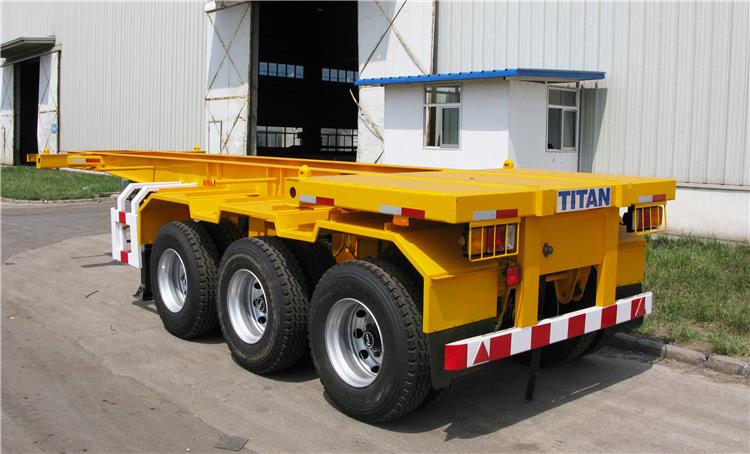

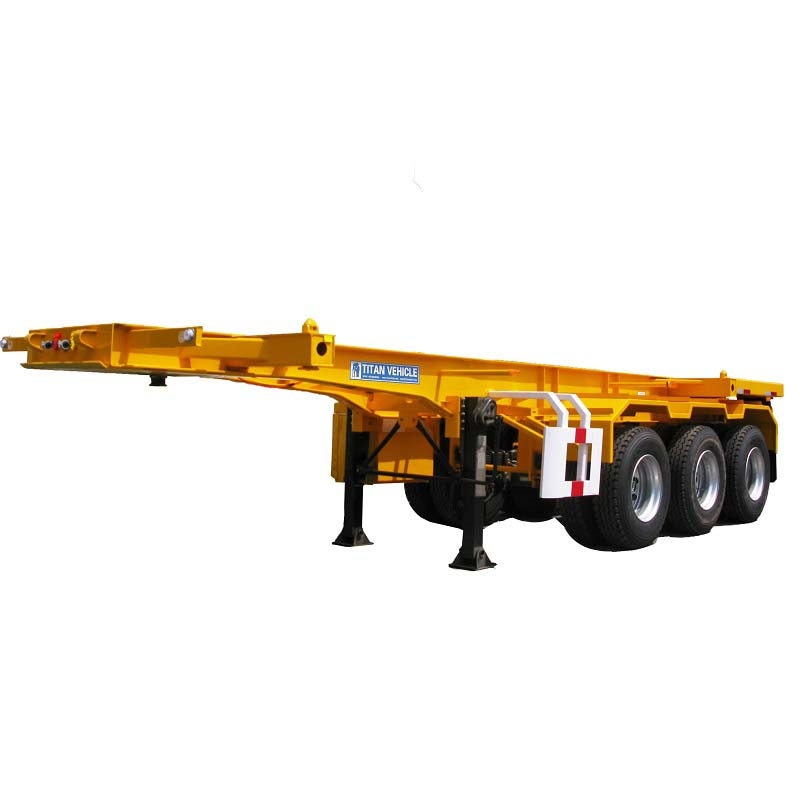

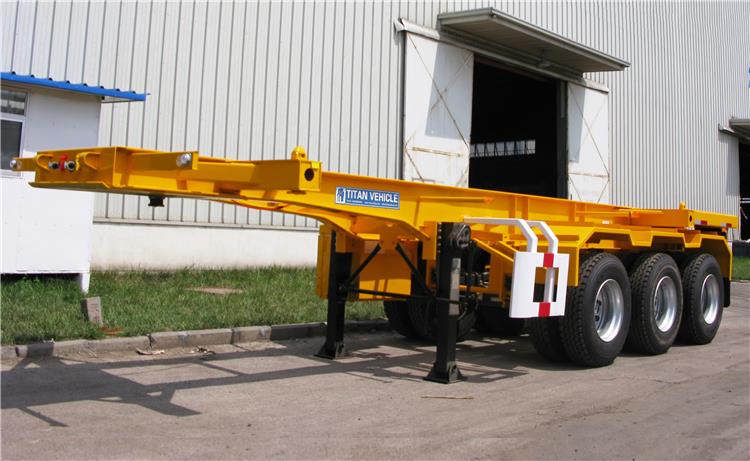

Tri Axle 20FT Container Chassis Trailer for Sale in Nigeria

Tri Axle 20FT Container Chassis Trailer for Sale in Nigeria

Specifications:

Dimension(mm): 6500*2500*1550mm

Loading capacity(ton): ≤40T

Axles: 3 axles, 13T/16T ,FUWA/ BPW/ Sinotruk Nigeria Brand

Tire: 12 units, 12.00R22.5 or 315/80R22.5

Rim: 9.00-22.5 or 9.75-22.5

Suspension: Mechanical suspension

Spring Leaf: 90(W)mmx13(Thickness)mmx10 layers or 100mmx12mmx12 (specially intended for overseas markets)

King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)

Landing Gear: JOST brand D200T or Chinese brand 28tons(double-speed)

Main Beam: Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material:Q345B steel

Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank

Twist Locks: 4,8,12 sets (lifting or screw type)

Valve: WABCO valve (specially intended for oversea market)

ABS: Optional

Light: LED light (specially intended for oversea market)

Voltage: 24V

Socket(Receptacle): 7-pin Socket (for 7 wire harness)

Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats

Tool Box: 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)

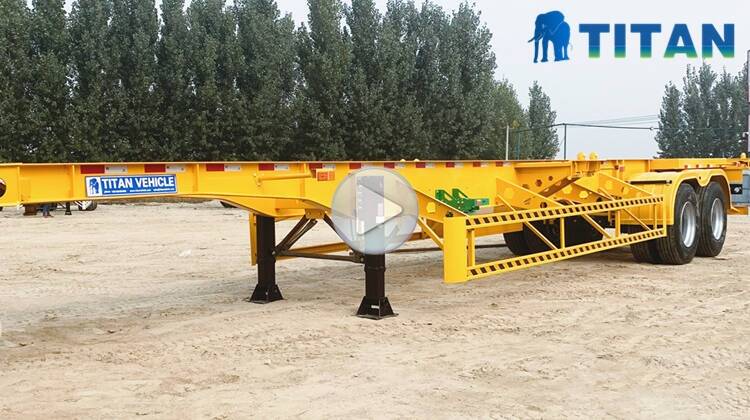

Through these videos, you can learn about different types of container chassis trailers, like 2/3/4 axle skeleton chassis for sale, 20/40ft  skeleton container, interlink container trailer, terminal trailer, and the process, testing, packaging and customer feedback, etc.

Welcome to leave your inquiry!

We will provide more details, price, catalog, drawing, videos for you!
