Tri Axle Low Bed Truck Trailer

Video of Low Bed Truck Trailer



Tri Axle 80 Ton Low Bed Truck Trailer Price: 15000 USD

The side beams of low bed truck trailer for sale Nigeria are all welded with three-in-one high-strength strip steel, with a strip width of 140mm and a side beam height of 300mm, which is stronger and more durable.

The large gooseneck of low bed truck trailer for sale Nigeria adopts a downward-pressed forehead to prevent the head from tilting under heavy load. It is conducive to climbing the front of the vehicle. The rear three-axle double belly plate is reinforced, and the front suspension bracket is reinforced.

The ladder of low bed trailer truck in Nigeria adopts a four-in-one high-strength plate, which is high in strength, strong and durable, and does not deform. Low bed truck trailer for sale Nigeria adopts a high-elasticity double-spring ladder, which can be easily lifted by ordinary people with one hand, making it more convenient to operate.

Tri Axle 80 Ton Low Bed Truck Trailer for Sale In Nigeria

Tri Axle 80 Ton Low Bed Truck Trailer for Sale In Nigeria

Tri Axle 80 Ton Low Bed Truck Trailer for Sale In Nigeria

Specification of Low Bed Truck Trailer

Overall dimension: 13000mm * 3000mm *3400mm

Loading capacity(T): 80T

Axle: 3 axle 16T,TITAN Brand

Tire: 12R22.5 Tires

Suspension: Mechanical suspension

Spring leaf: 90(W)mmx13(Thickness)mmx10 layers

Kingpin: JOST brand

Landing gear: JOST brand

Main beam: Height: 500mm, Upper plate: 20mm, Middle plate: 12mm, Lower plate: 20mm, Material: Q345B steel.

Bottom Platform: 5mm thick checkered plate

Ramp: Mechanical ladder

Advantage of Low Bed Truck Trailer

The side beams of low bed truck trailer for sale Nigeria tires are all designed with double-layer side beams, which are more beautiful and durable. The low bed trailer truck in Nigeria has a tool box, which is particularly strong and can be used to store heavy tools such as jacks and chains. The suspension is thickened to better adapt to poor road conditions.

All pins of low bed truck trailer for sale Nigeria are all made of streaky nuts with clips to prevent them from falling off. The low bed trailer truck in Nigeria is more user-friendly and more durable.

Low bed truck trailer for sale Nigeria can transport large cargoes that are super high, super wide, and super long, like cranes, excavators, etc. The low bed design of low bed trailer truck in Nigeria provides enough space for it. The flatbed is low from the ground. For some cargoes with a high center of gravity but large volume, the center of gravity height of the cargo can be lowered after loading, thereby improving the stability during transportation.

The frame structure of low bed truck trailer for sale Nigeria is usually relatively strong and made of high-strength steel. It can carry very heavy cargoes, and its load capacity can generally reach tens of tons or even hundreds of tons. In heavy industrial transportation, such as transporting large industrial equipment, steel castings, and other heavy goods, it can meet the weight requirements and ensure the safe transportation of goods.

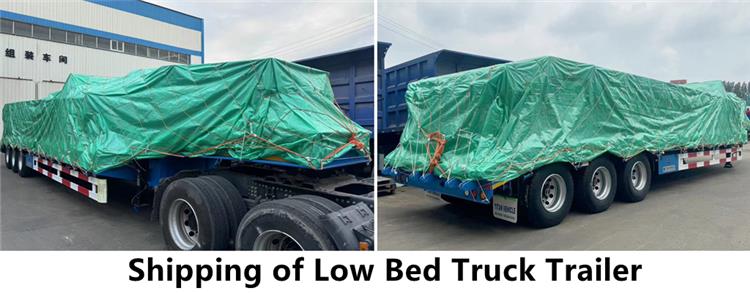

Shipping of Low Bed Truck Trailer

Low bed truck trailer for sale Nigeria can be transported in bulk or frame, and frame transportation costs are higher, so bulk transportation is the most frequently used method. TITAN will first spray the low bed trailer truck in Nigeria with a thick layer of wax, then cover the body with a rain cloth to reduce the corrosion of the tank body by seawater.
