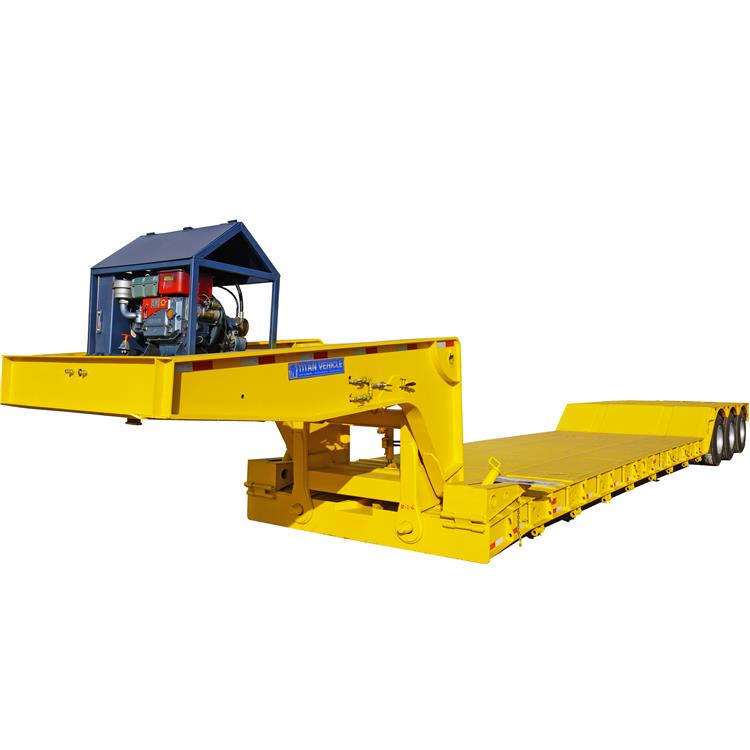

Tri Axle Removable Gooseneck Trailer

Removable Gooseneck Lowboy Trailers Description:

Sinotruk Nigeria removable gooseneck lowboy trailers for sale in Nigeria can make the 2/3/4 axles removable gooseneck lowboy trailers and heavy duty removable gooseneck lowboy trailers for sale in Nigeria,  the capacity of 60/80/100/120/150 ton removable gooseneck lowboy trailers for sale in Nigeria.

To meet your transport needs and your local regulations, we can customize different configurations of removable gooseneck lowboy trailers for sale in Nigeria for you.

Sinotruk Nigeria removable gooseneck lowboy trailers for sale in nigeria uses the HG60 high strengthen steel to produce the trailer. The yield strength of HG60 steel is ≥620Mpa, more durable and stronger than ordinary steel, and its loading capacity is 5 times more than the trailer which adopt Q345 steel

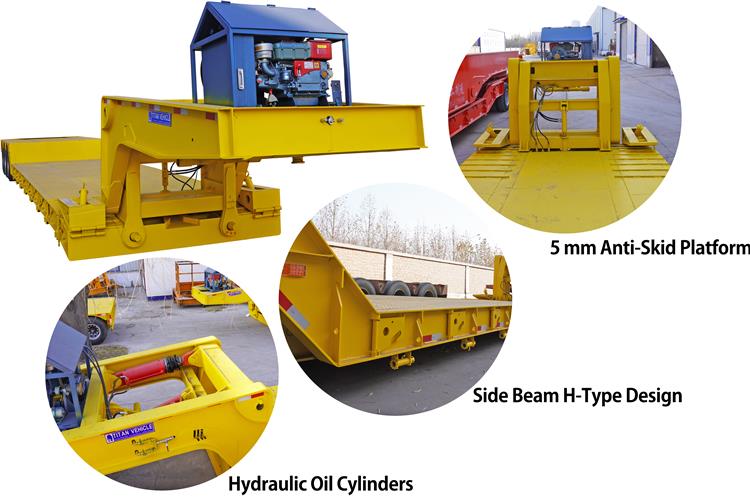

The hydraulic oil cylinders of the removable gooseneck lowboy trailers for sale in Nigeria which use 4 PCS hydraulic oil cylinders to produce the trailer. The platform of the removable gooseneck lowboy trailers for sale in Nigeria is 5 mm thick,which will never deform.

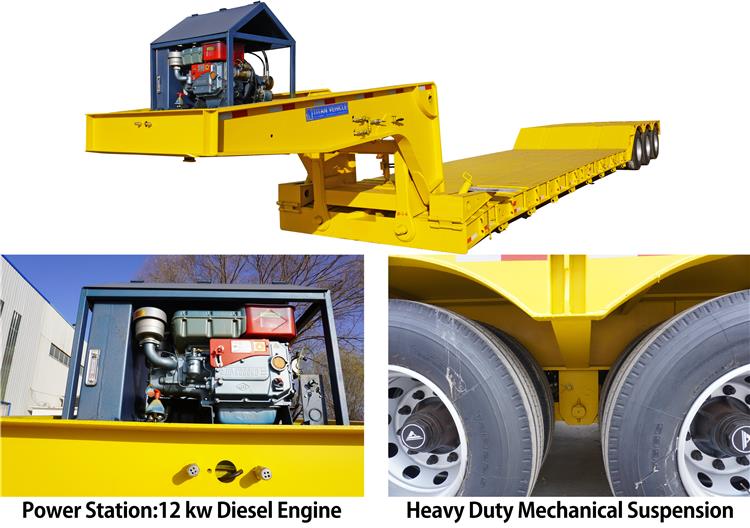

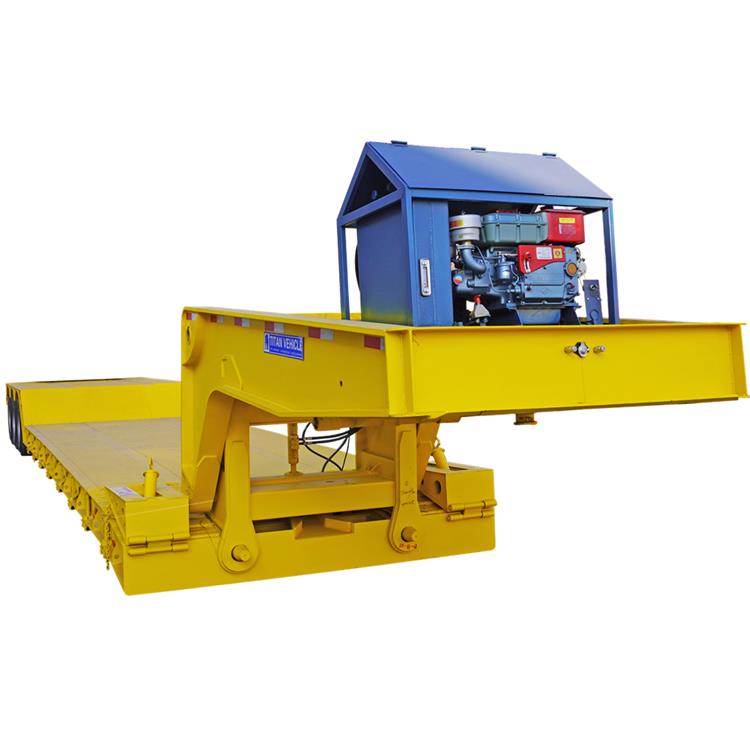

The power station of the removable gooseneck lowboy trailers for sale in Nigeria. Sinotruk Nigeria uses a 12KW diesel engine, which can provide enough power to the trailer. Removable gooseneck lowboy trailers for sale in Nigeria also adopts heavy duty mechanical suspension on the lowboy trailer.

Specification Removable Gooseneck Lowboy Trailers:

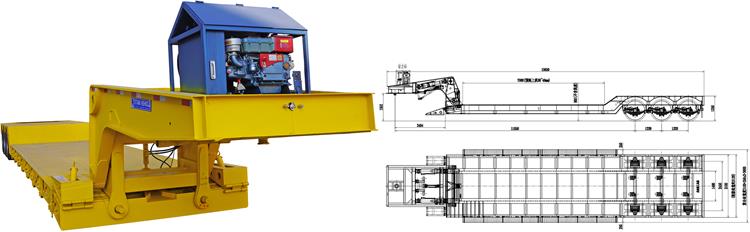

Dimension: 15800mm x 3000mm x 2500mm

Loading capacity(T): 60-80T

Axle: 13T/16T, FUWA / BPW / Sinotruk Nigeria Brand

Rim: 8.0-20 or 900*22.5

Tire: 8.25R20/10.00R20/11.00R20/12R22.5

Suspension: Mechanical suspension

Spring leaf: 120(W)mmx16(Thickness)mmx10 layers

Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)

Tare weight: About 9.5-19T

Main beam: Height: 500mm; Width: 230mm; Side beam: 250 I-beam 10/8/10; Material: HG60 high-strength steel.

Bottom Platform: 5mm thick, checkered plate

Hydraulic cylinder: 12KW diesel engine with hydraulic station

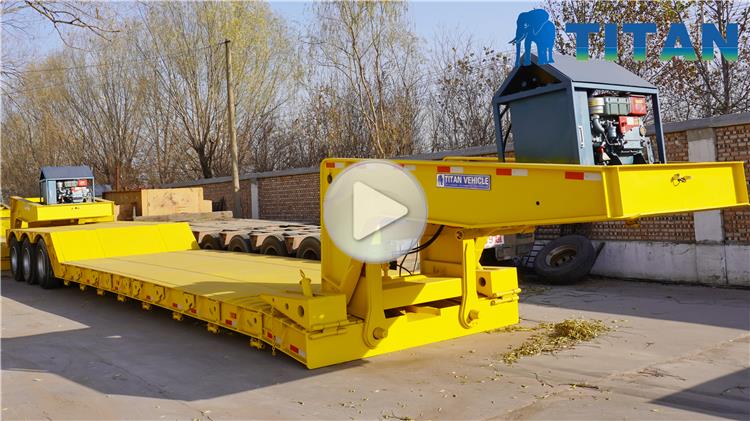

Video of Removable Gooseneck Lowboy Trailers
