The triple axle trailer can work normally on dry inland gravel roads or in wet coastal environments. Whether transporting bulk cargo or installing containers, flatbed shipping container trailers are the first choice for customers because of their diverse transportation methods.
The triple axle semi trailer is capable of carrying 20 foot and 40 foot standard containers, and is suitable for efficient connection between ports and land transportation. Based on the tri axle trailer for sale, the flat bed container trailer further improves the support effect and adaptability.
During loading, the flatbed container trailer can effectively disperse the weight of the cargo to the entire frame structure, avoiding the concentration of pressure on a single point, thereby reducing the risk of deformation or damage to the trailer structure caused by uneven force.
Tri / Triple Axle Flatbed Trailer for Sale in Nigeria | Flatbed Shipping Container Semi Trailer
Tri / Triple Axle Flatbed Trailer for Sale in Nigeria | Flatbed Shipping Container Semi Trailer

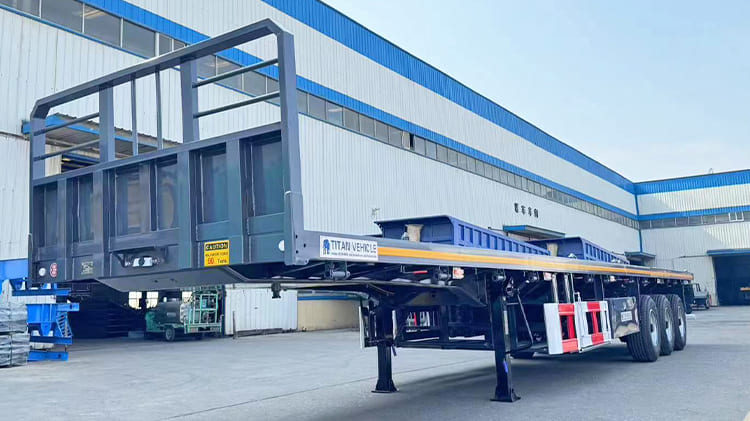

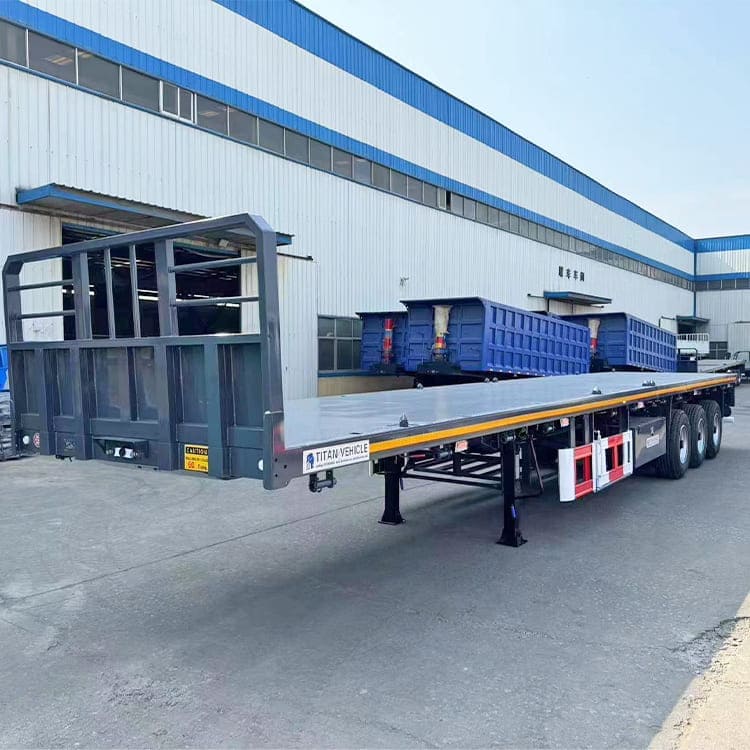

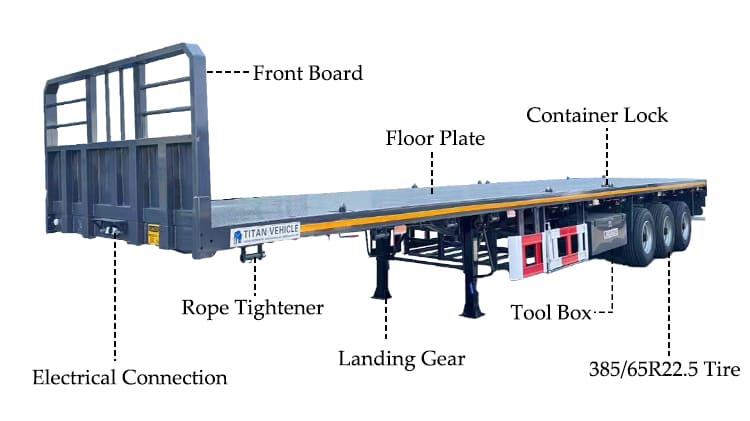

Model: Tri Axle Flatbed Trailer for Sale
Dimension: 12500mm*2500mm*1550mm

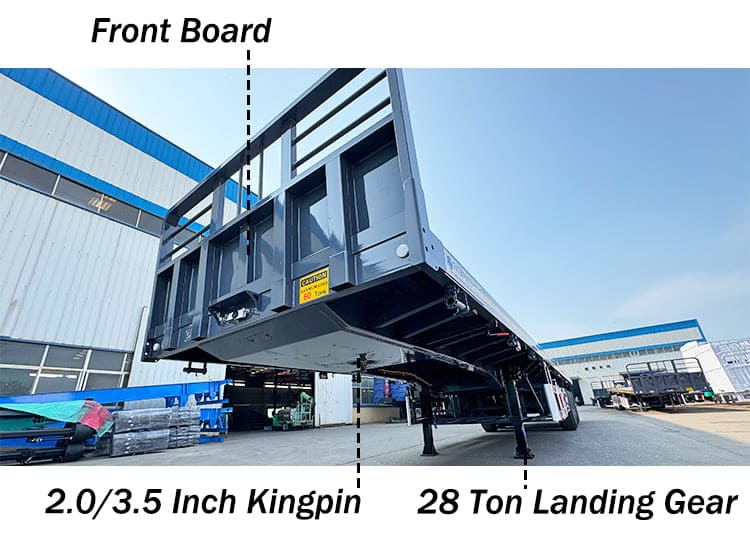

Trailer Future: with front board
Loading capacity: 60 ton

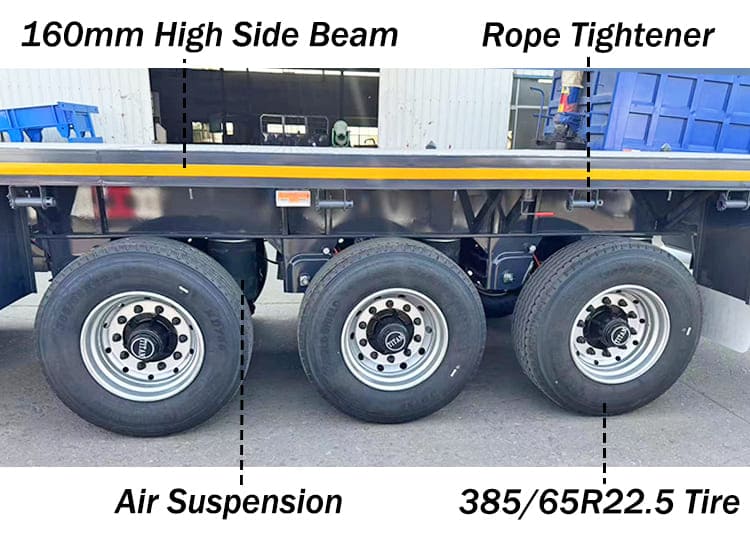

Side Beam: 160mm high
Axles: 3 axles, TITAN brand, 13 ton
Tire: 385/65R22.5, 12 units
Suspension: air suspension
Bumper: 4mm thickened bumper
Landing Gear: 28 ton
Lamp: LED lamp with anti-theft net
The TITAN flatbed shipping container trailer focuses on durability and practicality in terms of structural design and process processing, striving to improve overall performance and adapt to a variety of transportation environments. Its frame main beam is made of Q355 low carbon high strength alloy steel, and the strength and stability of the whole flat bed container trailer are enhanced by selecting high quality materials.
In order to ensure the firmness and load-bearing performance of the frame structure, the automatic submerged arc welding process is applied in the manufacturing process to make the various parts of the shipping container flatbed connected and effectively maintain the integrity.
In terms of structural details, the tri axle trailer for sale adds a reinforced steel plate design at the key connection, especially in the gooseneck area with greater load-bearing pressure, and adopts a double reinforcement scheme to improve the compression resistance.
The flatbed container trailer reinforced structural design not only enhances the overall load-bearing capacity, but also effectively reduces the frame deformation problem caused by heavy loads during transportation, thereby improving the durability and safety of the flatbed container trailer.
In terms of surface treatment, the tri axle flatbed trailer for sale adopts powder spraying and baking paint technology. Although the process is more expensive, the resulting quality improvement also brings Nigeria customers a higher cost-effectiveness.
Powder painting not only makes the surface of the shipping container flatbed more bright, but also has strong stability can effectively resist the fading situation caused by long term strong sunlight, keeping the appearance neat. Compared with traditional paint, powder coating is not easy to fall off, which reduces the need for maintenance of the triple axle trailer body appearance during use.

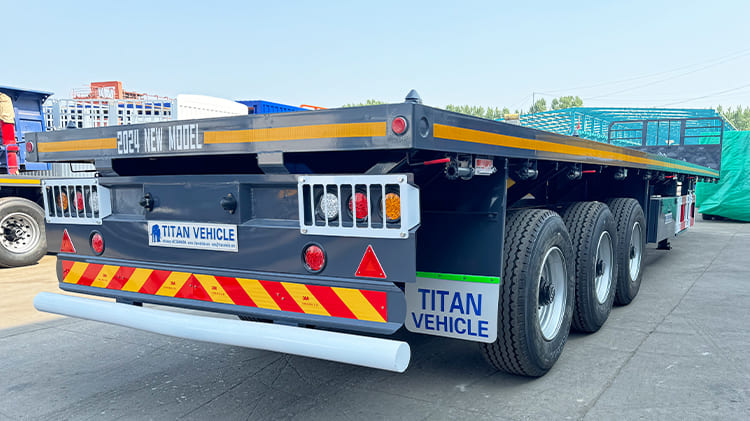

In terms of safety, the design of the tail of the TITAN flatbed shipping container trailer also reflects the importance of customer transportation needs. The triple axle semi trailer is equipped with a brightly colored reflective strip, which can significantly improve visibility in low light or night environments, and enhance the warning effect on surrounding flat bed container trailer and pedestrians. In addition, in order to prevent the theft of lamps, the tri axle trailer for sale taillight part also adds an anti-theft design to enhance safety during use.

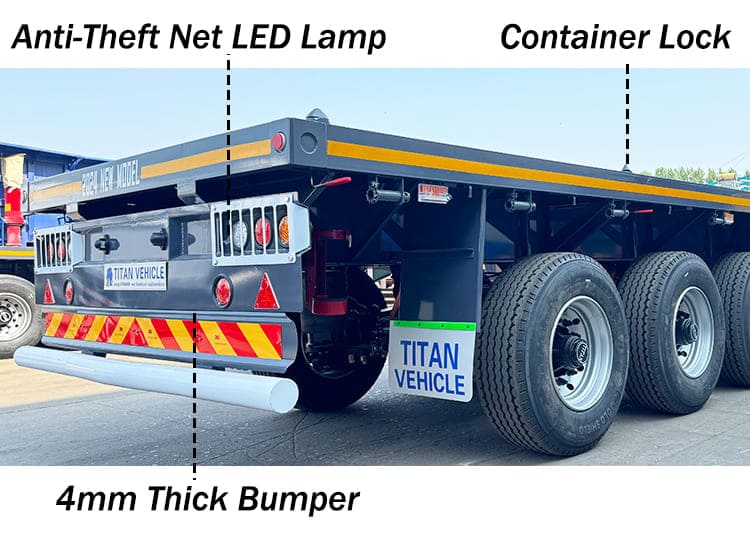

In terms of impact resistance, the bumper of the TITAN flatbed container trailer is 4 mm thick and is treated with the same powder coating process as the body. The protective design can effectively prevent the tri axle flatbed trailer for sale from rusting in dry or wet environments.
When encountering a collision, the thickened bumper has good buffering performance, which can reduce the damage caused by the impact and protect the shipping container flatbed body and cargo from serious impact.
In addition, the triple axle trailer is made of high quality accessories to ensure the safety and stability of the transportation process from the details. The axle not only improves the flatbed shipping container trailer overall load capacity and can carry about 60 tons of cargo, but also effectively reduces the risk of axle breakage caused by overloading.
Compared with ordinary axles, 13 ton axles perform better in the face of complex road conditions, and can better withstand the impact of long term bumps and gravel impacts, and reduce structural deformation in tri axle trailer for sale caused by poor road conditions.
The triple axle semi trailer sold by TITAN are waterproofed before delivery to prevent rust. The flat bed container trailer are coated with protective wax and covered with waterproof cloth during packaging, which can effectively resist the moisture erosion of sea water and sea breeze during shipping transportation. Customers can choose to use container transportation or roro transportation according to actual needs.
