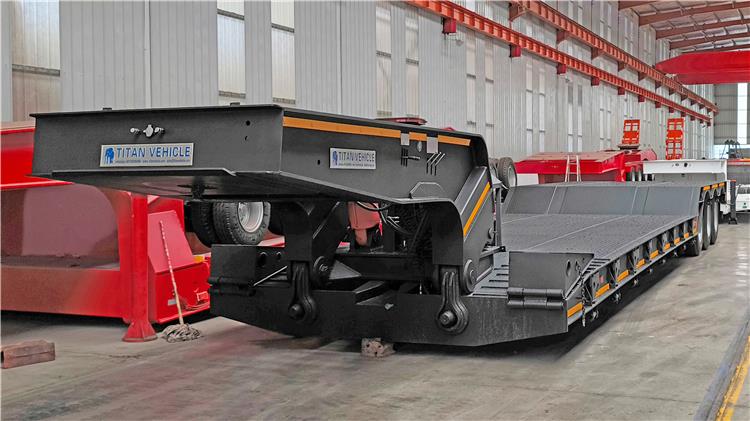

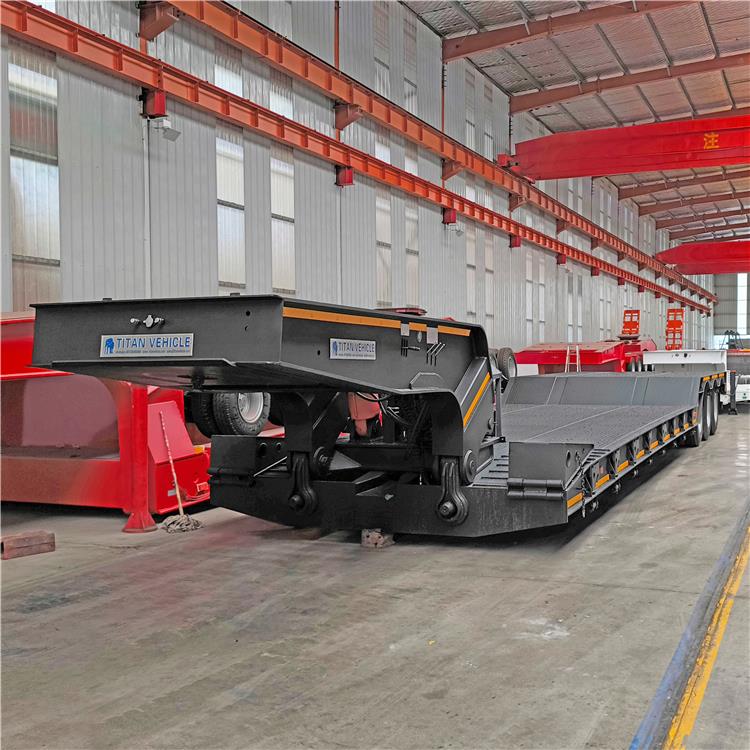

The 3 axle 80 ton detachable neck trailer serves as a workhorse in heavy-duty logistics and specialized transport. Its key advantage lies in the detachable gooseneck, which can be lowered directly to the ground from the front to create a ramp, vastly improving safety and efficiency when loading overweight or oversized equipment.
Once the gooseneck is released via a hydraulic system (or mechanical locking mechanism), the front of the trailer rests on the ground, allowing tracked or wheeled machinery—such as large excavators or bulldozers—to drive smoothly and directly onto the loading deck.
Additionally, this trailer design lowers the cargo's center of gravity, significantly enhancing stability and resistance to rollover during high-speed travel, cornering, and navigation over uneven or rough terrain.
3 Axle 80 Ton Detachable Neck Lowboy Trailer for Sale In Nigeria Lagos
3 Axle 80 Ton Detachable Neck Lowboy Trailer for Sale In Nigeria Lagos
3 Axle 80 Ton Detachable Neck Lowboy Trailer for Sale In Nigeria Lagos
3 Axle 80 Ton Detachable Neck Lowboy Trailer for Sale In Nigeria Lagos

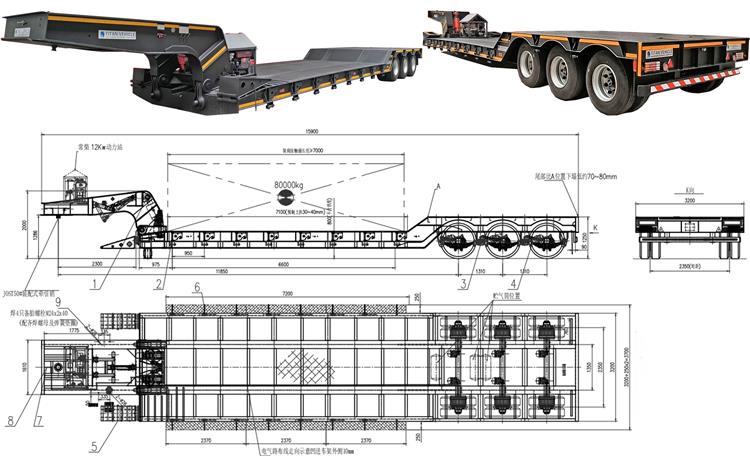

Dimension: 15900 mm*3700 mm*2000 mm
Loading capacity(T): 80 ton

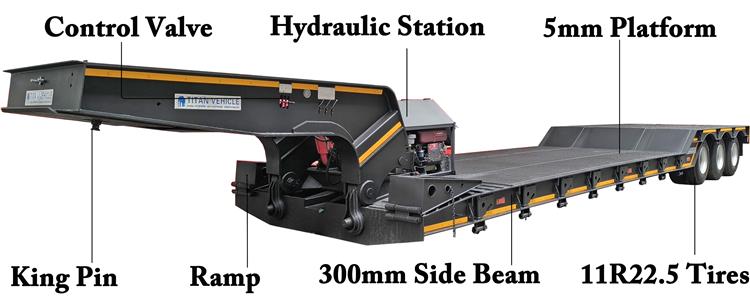

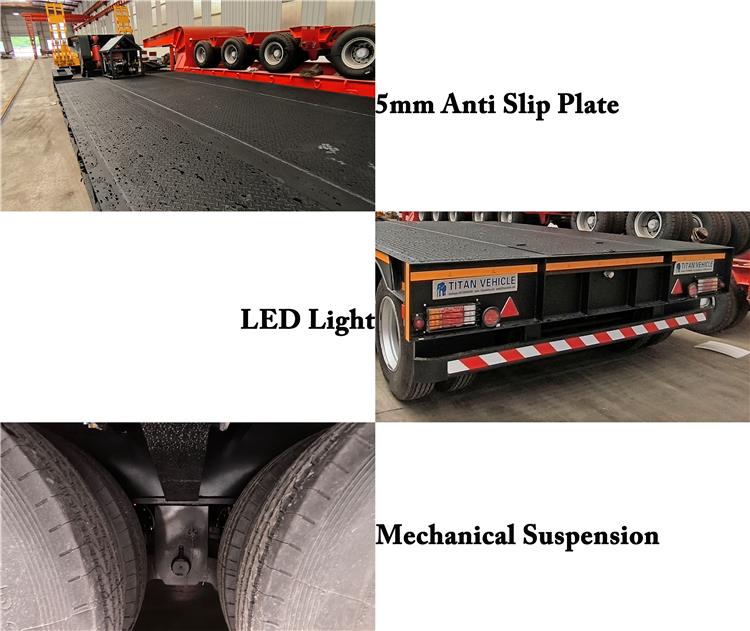

Floor Plate: 5mm thick pattern plate
Side Beam: 300mm high

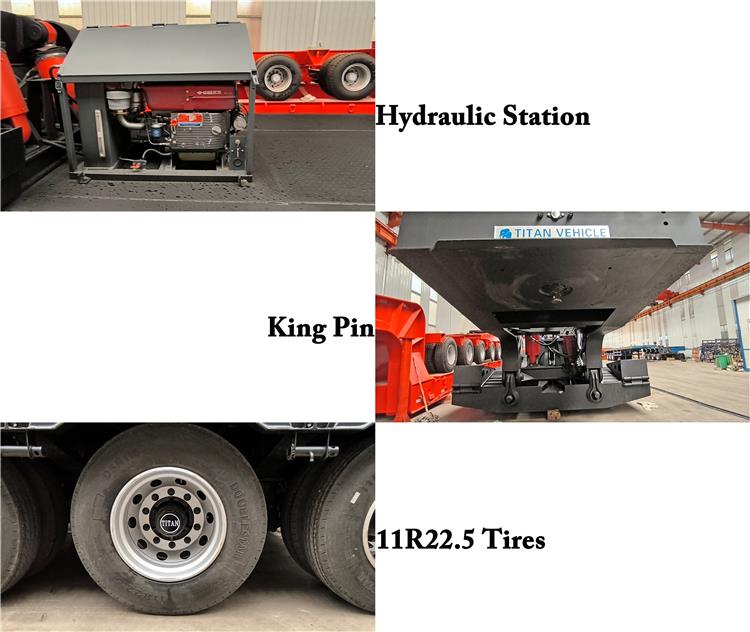

Ramp: hydraulic type
Hydraulic Cylinder: 13.2kw

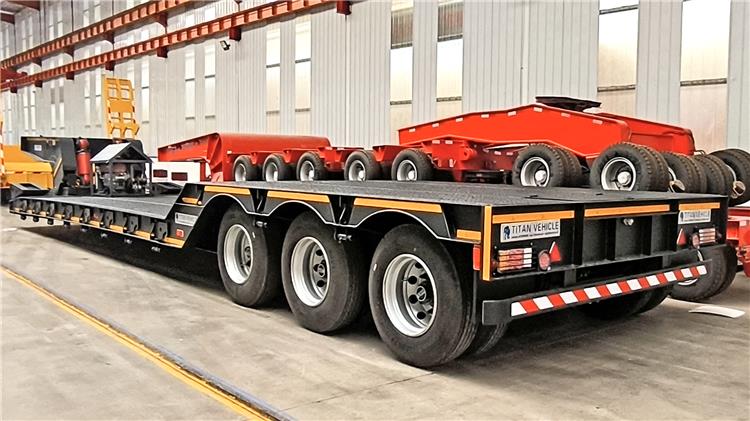

Axle: 3 axles
Tire: 12 units, 11R22.5
Suspension: mechanical suspension
King Pin: JOST brand 90#
Light: LED light
The 3 axle 80 ton detachable neck lowboy trailer for sale is configurable with 3 axles, 4 axles, steer-by-wire axles, and multi-axle combinations to effectively distribute axle loads and meet stringent highway weight limits.
The 3 axle 80 ton detachable neck trailer is used to transport large tracked excavators, Caterpillar (CAT) bulldozers, loaders, graders, and large road rollers. Its front-drive-in loading and unloading design is particularly suitable for rapid operations on rudimentary field sites.
The 3 axle 80 ton detachable neck trailer uses dual hydraulic cylinders for coordinated lifting, and is equipped with a two-way hydraulic lock and check valve.
The hydraulic gooseneck of the 3 axle 80 ton detachable neck lowboy trailer for sale allows for fine-tuning of the trailer's front ground clearance. When traversing muddy potholes or high obstacles, the front can be temporarily raised to prevent the chassis from bottoming out and running aground.
Even in the event of an accidental rupture of the high-pressure hydraulic hose, the hydraulic lock can instantly engage, preventing the gooseneck from tipping over and injuring equipment or personnel. The through-type main beam of the 3 axle 80 ton detachable neck trailer is made of high-strength alloy steel such as T700 or HG60, with a yield strength more than twice that of ordinary Q345 steel.
High-strength steel ensures that the 3 axle 80 ton detachable neck lowboy trailer for sale will not bend or break under long-term heavy loads without significantly increasing the curb weight. Compared with the traditional thick plate stacking design, the use of high-strength steel reduces structural redundancy weight and lowers fuel consumption when empty.
