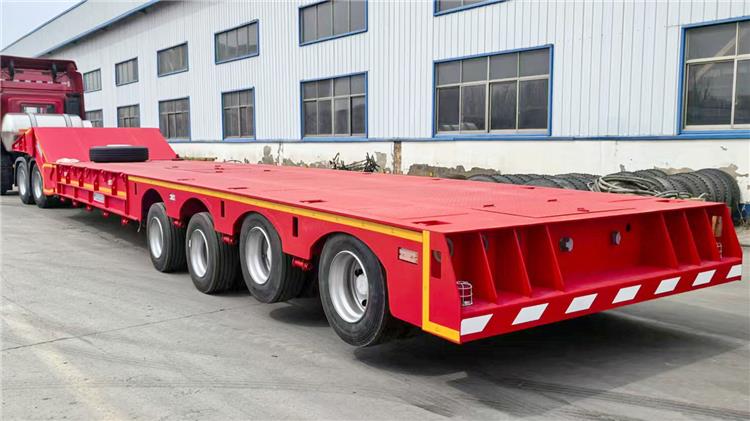

4 Axle 100 Ton Folding Gooseneck Trailer

Video of Folding Gooseneck Trailer



4 Axle 100 Ton Folding Gooseneck Trailer Price:

The 4 axle 100 ton folding gooseneck trailer is specifically engineered to handle extreme heavy-haul transport across Nigeria and West Africa. Designed for ultra-heavy machinery and oversized industrial equipment, this trailer eliminates the hazards of loading heavy units onto elevated rear ramps.

Transporting heavy excavators (e.g., CAT 349/390, Komatsu PC800), bulldozers, stone crushers, and drilling rigs directly into mining pits. Delivering heavy crawler cranes, road pavers, and large transformers to construction sites in Lagos, Abuja, Port Harcourt, and rural road networks.

 Solves front-loading challenges on unpaved, muddy, or unlevel terrain where standard lowbed trailers struggle to maintain traction and balance.

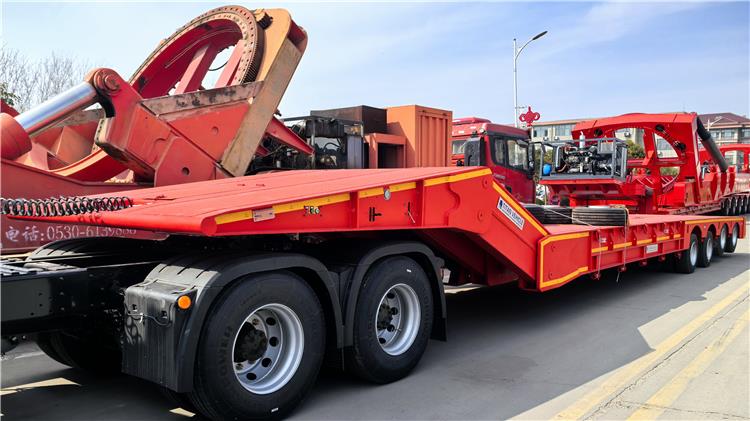

4 Axle 100 Ton Folding Gooseneck Trailer for Sale in Nigeria

4 Axle 100 Ton Folding Gooseneck Trailer for Sale in Nigeria

4 Axle 100 Ton Folding Gooseneck Trailer for Sale in Nigeria

4 Axle 100 Ton Folding Gooseneck Trailer for Sale in Nigeria

Specification of Folding Gooseneck Trailer

Dimension: 16500mm x 3000mm x 2200mm

Working platform: 12000mm x 3000mm

Loading capacity: 100 Tons

Gooseneck: Hydraulic folding gooseneck

Axle: 4 Axle (13T/16T)

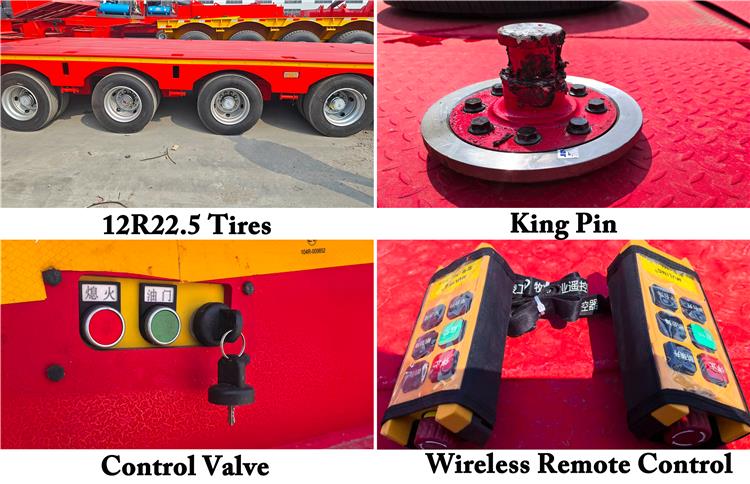

Tire: 16 units, 12.00R20 / 315/80R22.5

Suspension: Heavy duty mechanical suspension

Hydraulic cylinder: 13.2KW diesel engine with hydraulic station

Kingpin: 3.5" (90#) JOST exchangeable kingpin

Main beam: Q690D high-tensile steel

Advantage of Folding Gooseneck Trailer

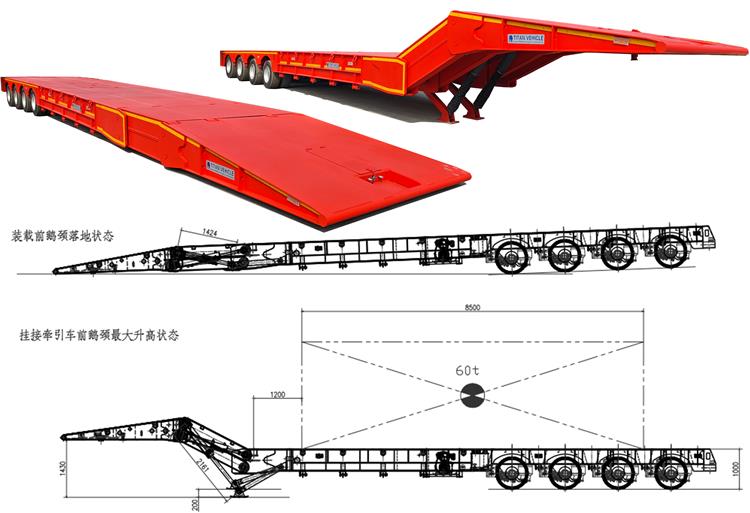

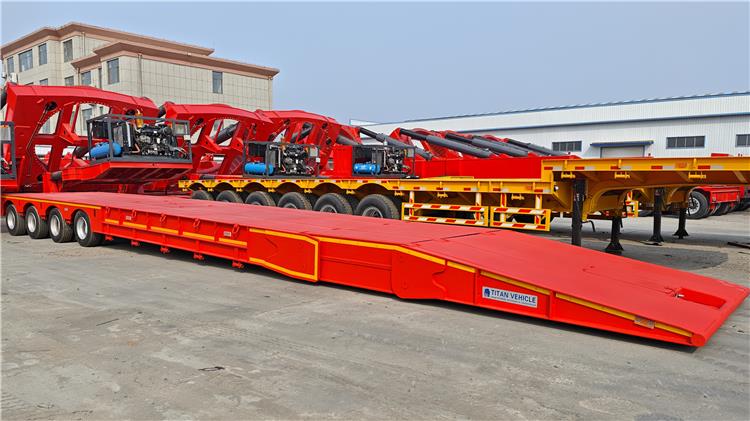

The folding gooseneck mechanism lowers the front deck completely onto the ground, creating a gentle climbing slope (less than 12 degrees). This allows ultra-heavy tracked excavators and heavy crawlers to drive directly onto the cargo platform safely, preventing equipment tipping and trailer frame rollover risks.

To absorb high dynamic shock loads over Nigeria's unpaved roads, the main longitudinal beams are constructed from premium Q690D high-yield strength steel. Submerged arc welding technology creates a continuous structural bond, preventing center sagging, beam cracking, or side deformation under maximum 100-ton capacity.

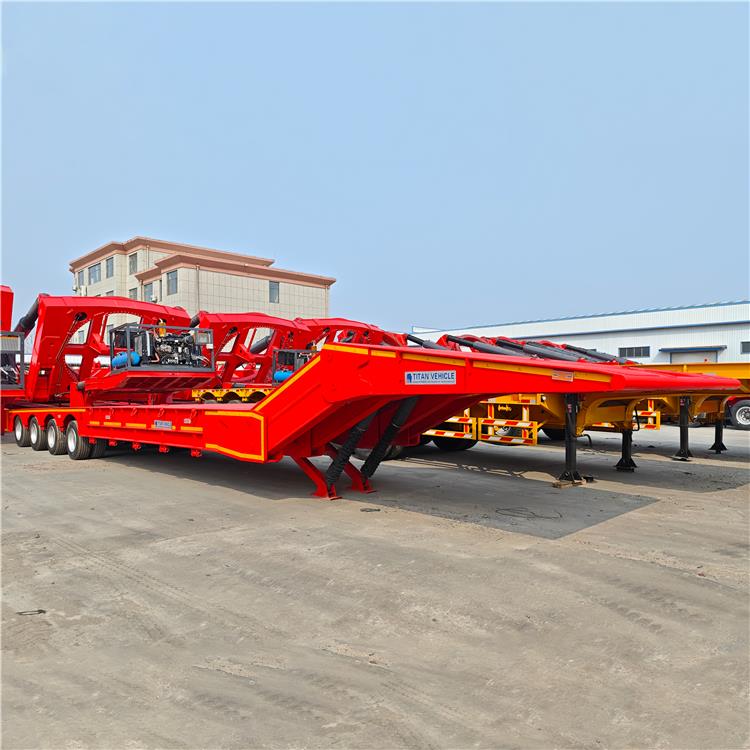

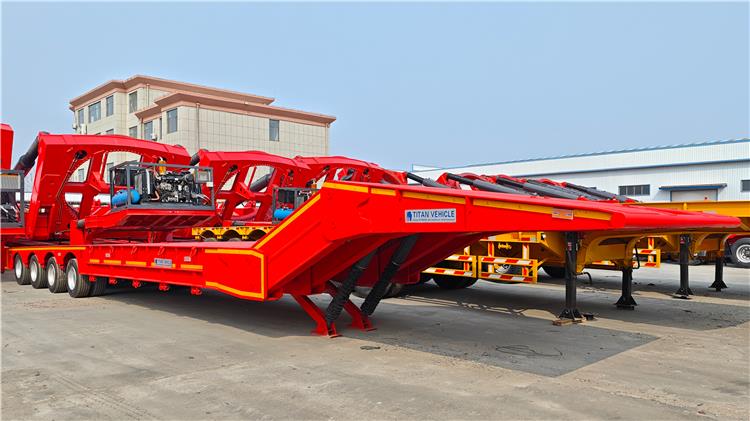

Equipped with a reliable auxiliary diesel engine power unit mounted on the gooseneck. This ensures independent hydraulic operation for folding and raising the neck, eliminating reliance on the tractor head's PTO system in remote African construction camps.

The 4 axle heavy duty suspension system evenly distributes heavy concentrated loads across all 16 tires. Reinforced torque rods, extra-thick leaf springs, and high-capacity axle hubs extend tire life and protect chassis components during long-distance transit across rough highways.
