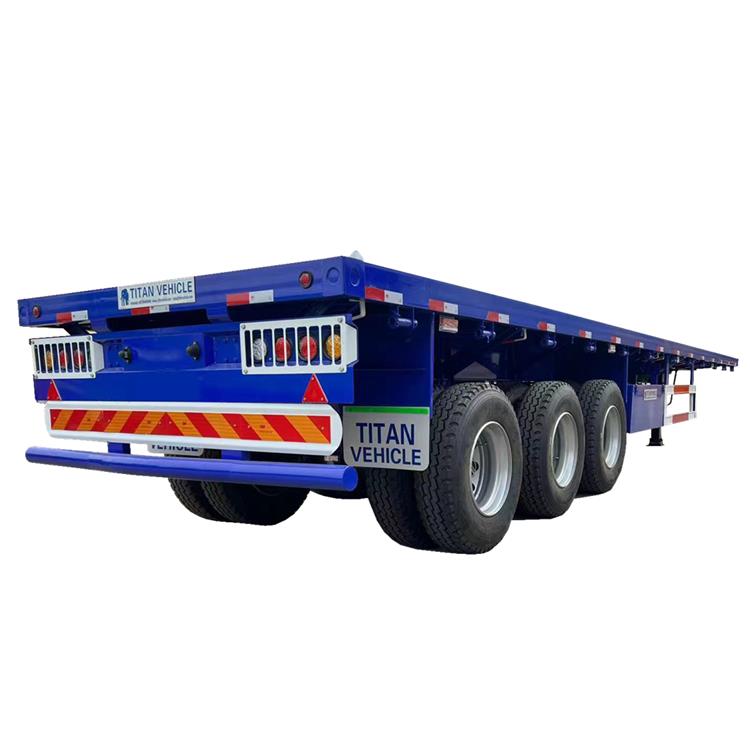

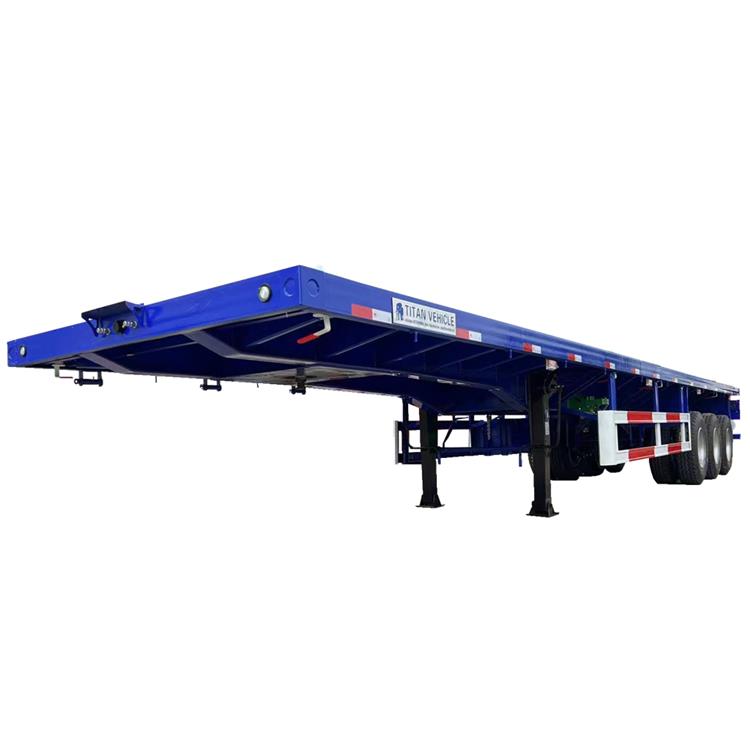

40ft Flatbed Semi Trailer

40ft Flatbed Semi Trailer Price: 9000USD

3 axle flatbed semi trailers for sale in nigeria can be used for transportation the containers, like two 20ft containers or one 40 foot container, there are 8 sets locks to fix the container on the 40ft flatbed semi trailer with 3 axles for sale in nigeria

40ft Flatbed Semi Trailer with 3 Axles for Sale In Nigeria Lagos - Sinotruk Nigeria

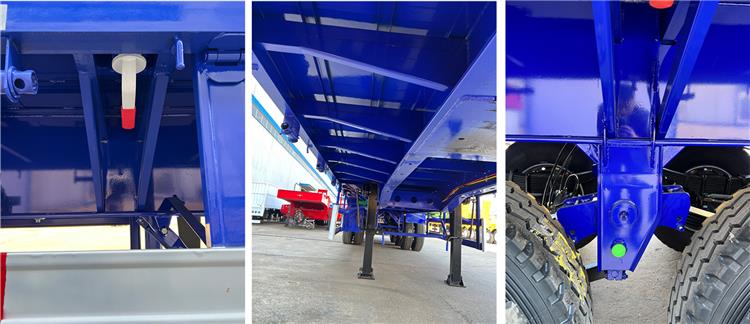

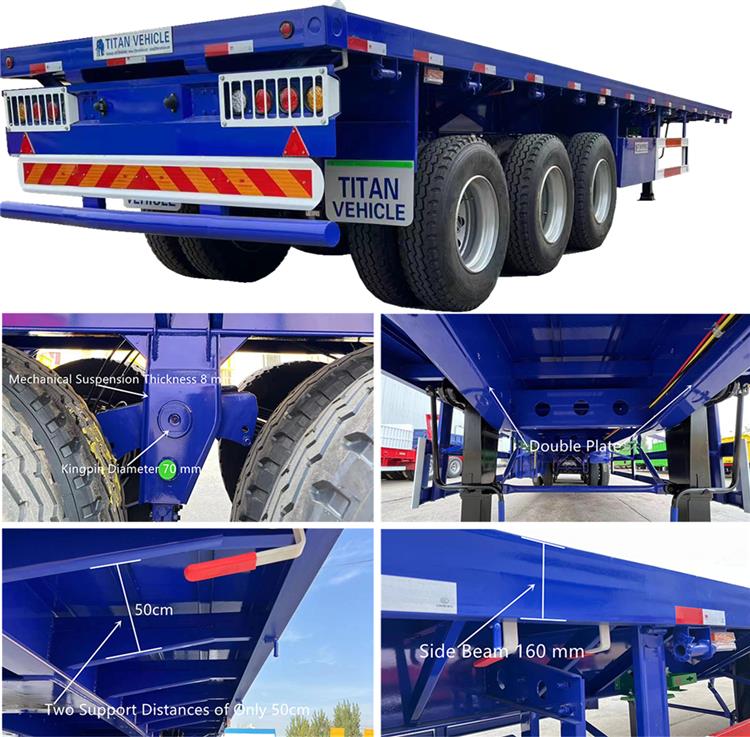

3 Axle flatbed semi trailers for sale in Nigeria adopt high-density supports under the platform. The distance between every two support is only 50 cm. The heavy-duty mechanical suspension of 3 axle flatbed semi trailers for sale in Nigeria. Its thickness is 8 mm and adopts 70 mm diameter kingpin.

40ft flatbed semi trailer with 3 axles for sale in Nigeria the gooseneck parts use a double plate to reinforce it.

The 3 axle flatbed semi trailers for sale in Nigeria container locks to part, we even adopt double supports, which makes the trailer has more loading capacity and service life.

The side beam of a 40ft flatbed semi trailer with 3 axles for sale in Nigeria, whose height of the side beam is 160 mm. The flatbed trailer that has a higher side beam will have more loading capacity. 3 axle flatbed semi trailers for sale in Nigeria also fix rope tensioner and rope for our customers.

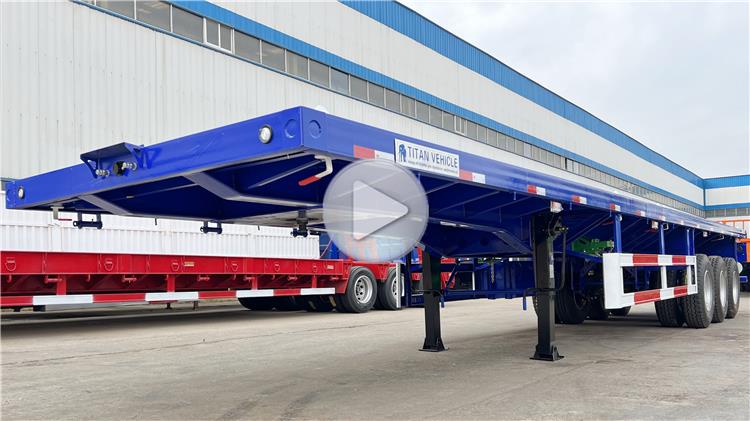

Video of Flatbed Semi Trailer

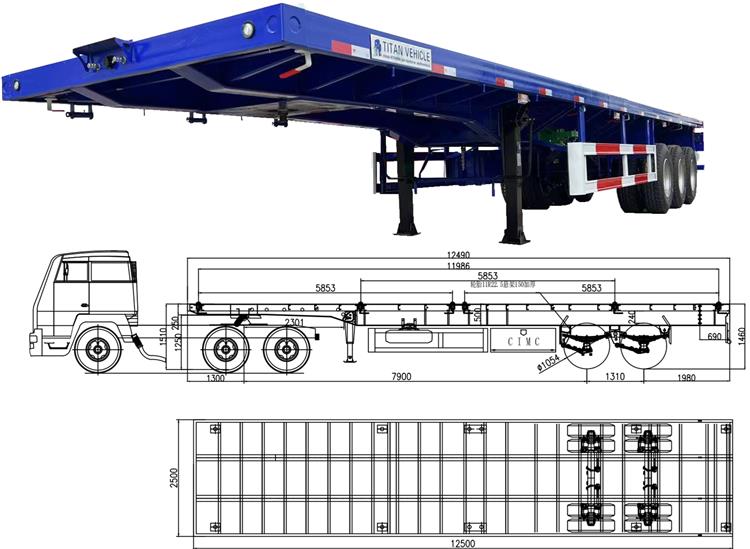

Specification of Flatbed Semi Trailer In Nigeria

Model: tri axle flat deck trailer

Dimension(mm): 12500x2500x1550mm

Loading capacity(ton): ≤60T

Axles: 3 axles, 13T/16T ,FUWA/ BPW

Tire: 12 units, 12.00R22.5 or 315/80R22.5

Rim: 9.00-22.5 or 9.75-22.5

Suspension: Mechanical suspension(Germany or America type) or Air suspension(China brand or BPW brand)

King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)

Landing Gear: JOST brand D200T or Chinese brand 28tons(double-speed)

Main Beam: Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material:Q345B steel

Side Beam: 16mm or 18mm steel channel (material: Q235 steel)

Platform: 3mm-thick checkered plate
