Nigeria Sinotruk Local Sales Center 2025 Howo New Model
The 3 axle flatbed trailer for sale near me is purpose-built to handle both 20-foot and 40-foot containers, playing an essential role in facilitating the connection between seaports and inland transport systems.
The overall design emphasizes balanced weight distribution across the frame, which reduces stress concentration in localized areas. This not only helps prevent frame warping or structural fatigue over time but also enhances durability during frequent or heavy duty operations.
Dimension: 12500mm*2500mm*1550mm
Trailer Future: with front board
Loading capacity: 60 ton
Side Beam: 160mm high
Axles: 3 axles, TITAN brand, 13 ton
Tire: 385/65R22.5, 12 units
Suspension: mechanical suspension
Leaf Spring: 10 layers
Bumper: 4mm thickened bumper

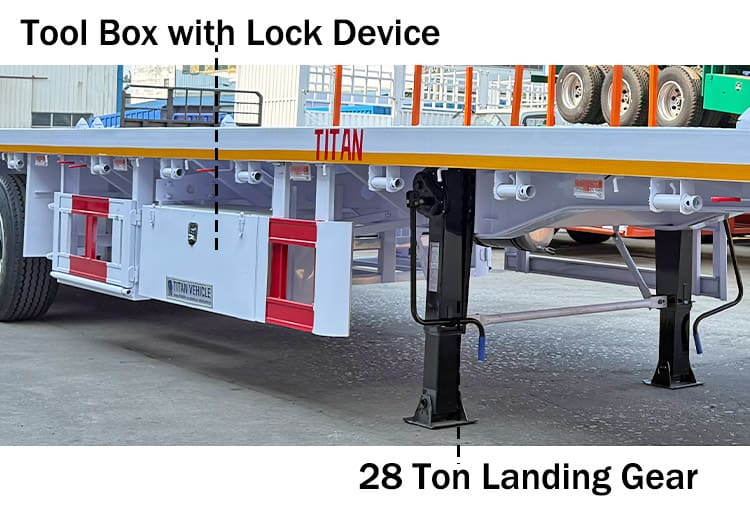

Landing Gear: 28 ton

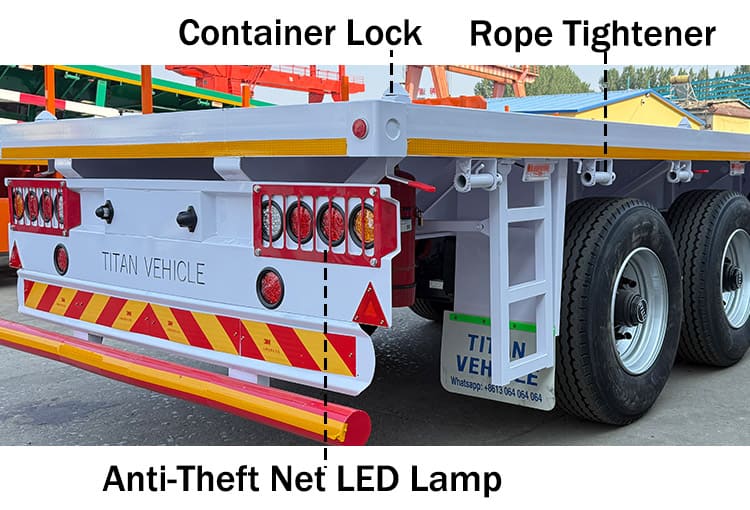

Lamp: LED lamp with anti-theft net

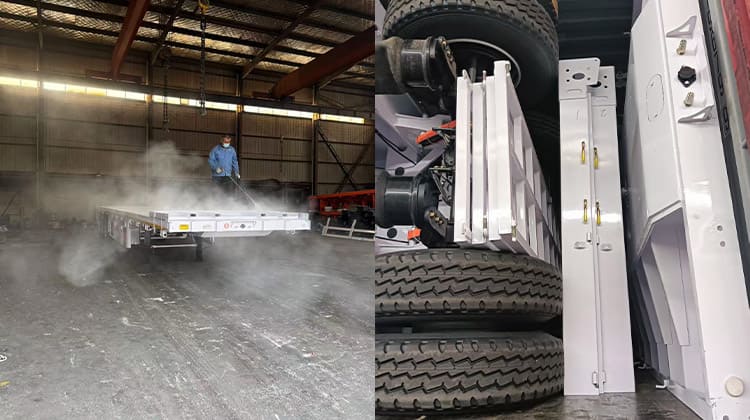

To guard against corrosion that can occur during ocean transport, TITAN applies a two-step protection process before shipment. First, each flatbed trailer for sale is coated with anti-rust wax. Then, a waterproof tarp is used to fully wrap the trailer. This dual-layered method provides strong defense against moisture, salt-laden air, and sea spray, ensuring that 40 ft flatbed trailer for sale reach their destination with minimal risk of shipping-related deterioration and without requiring immediate maintenance.
TITAN gives customers in Nigeria flexible delivery options, including container shipment and roll-on/roll-off (RORO) transport. This allows buyers to choose the method best suited to local port capabilities and shipping timelines, helping improve logistical efficiency while controlling delivery costs.
Surface treatment is a crucial factor in ensuring long term performance and visual appeal. TITAN uses a combination of powder spraying and high-temperature baking paint to finish the flatbed trailer for sale near me surface.
Though this method is costlier than conventional paint, it provides better protection against weathering and ultraviolet exposure. The coating maintains its gloss and color in hot and humid conditions like those in Nigeria and significantly reduces the need for repainting or ongoing surface maintenance.
Durability remains a priority in the construction process. The primary frame of the 40 ft flatbed trailer for sale is made from Q355 low-carbon high-strength alloy steel, offering enhanced strength and rigidity. TITAN adopts submerged arc welding for assembling the major structural parts. This welding technique produces deeper weld penetration and cleaner seams, which increase overall structural cohesion and better resist cracking or failure under stress.
Special reinforcement is also applied to critical stress zones, especially around the gooseneck where concentrated loads are common. By integrating double-layer supports in these areas, the 40 ft flatbed trailer for sale remains stable and capable under substantial weight, even when transporting large or irregular cargo. These reinforcements are particularly beneficial for navigating uneven terrain or challenging road conditions in regions such as Nigeria.
The tri axle flatbed trailer for sale frame is supported by an internal structure composed of multiple cross members and angled reinforcements. These are spaced at intervals of less than 500mm to maintain load stability and structural integrity. Each cross member is fabricated from 100mm channel steel, giving the deck strong support and helping the flatbed trailer for sale preserve its form during loading and long-distance travel.
The flatbed trailer for sale near me features a flat, unobstructed deck design that supports a wide range of cargo types, from standard shipping containers to irregular or oversized loads. It comes equipped with 12 pre-installed container locks that are strategically placed to secure either 20 ft or 40 ft containers. This pre-configuration simplifies loading operations and minimizes setup time while ensuring cargo remains securely in place throughout the journey.
For improved performance on rough terrain, TITAN uses 13-ton axles known for their durability and load carrying reliability. These axles absorb shocks and reduce vibration when navigating uneven or unpaved roads in Nigeria. With a maximum load-bearing capacity of up to 60 tons, the flatbed trailer for sale help prevent damage from overloading and contribute to the stability, thus supporting safer and more efficient operations in demanding environments.
