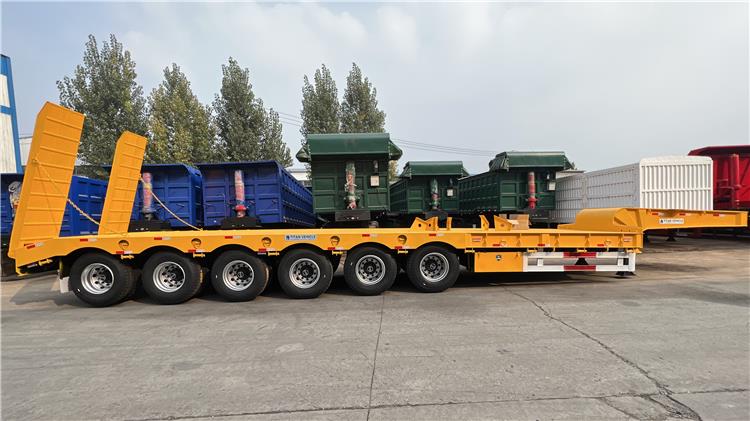

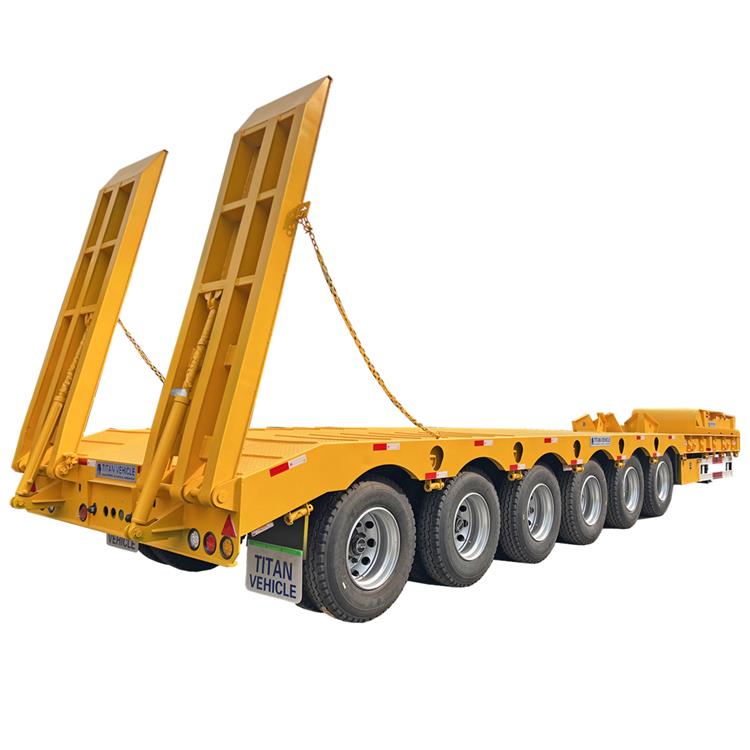

6 Axle Drop Deck Low Loader Semi Trailer

Drop Deck Low Loader Trailer Price: 16000USD

Sinotruk nigeria low loader transporter are widely used, mainly for medium and long-distance freight transportation. Sinotruk nigeria low loader transporter are commonly used to transport heavy vehicles, rail vehicles, mining machinery, forestry machinery, agricultural machinery, and other heavy-duty cargo.

Drop Deck Low Loader Semi Trailer Transport In Lagos | Sinotruk Nigeria

Drop Deck Low Loader Semi Trailer Transport In Lagos | Sinotruk Nigeria

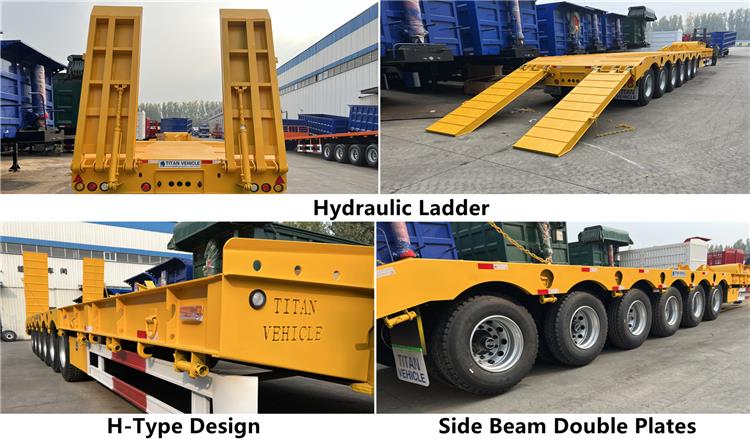

Sinotruk Nigeria low loader semi trailer adopts an H-type design to produce the side beam the height of the side beam is 250 mm, and the thickness of the upper, bottom and middle plate is 6 mm. At the wheel part of the side beam, Sinotruk Nigeria low loader semi trailer uses double plates to reinforce it, which makes the beam will never deform. The ramp of the Sinotruk nigeria low loader semi trailer.The trailer adopts hydraulic ramp,which can operate by itself.

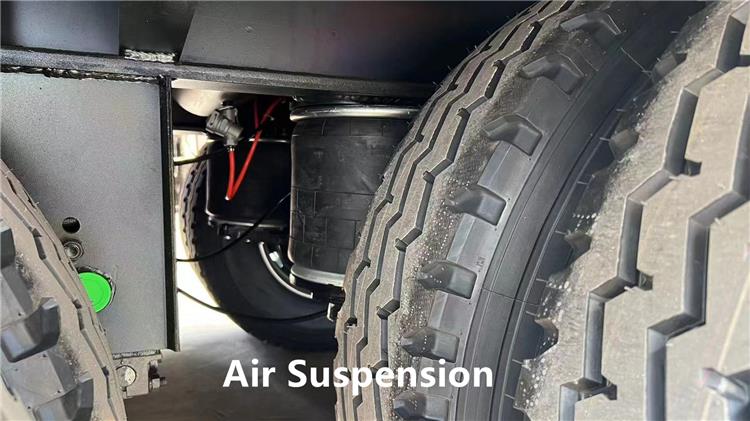

Sinotruk nigeria drop deck low loader has both air suspension and mechanical suspension.The front two axles are air suspension and they can be lifted;the rest four axles are heavy-duty mechanical suspension,the thickness of the suspension is 10 mm and the diameter of the kingpin is 70 mm

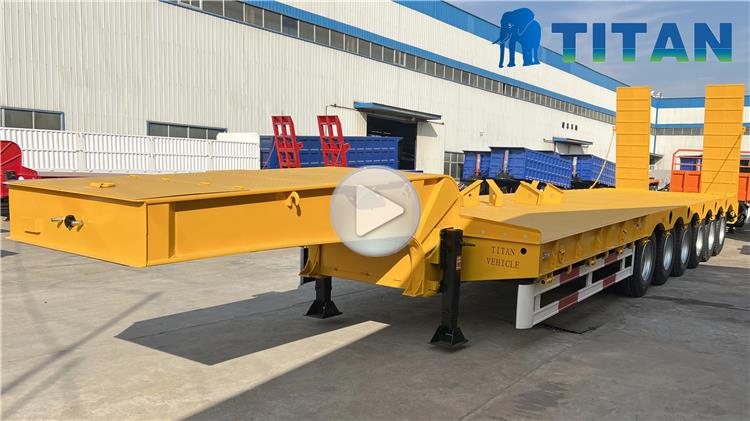

Video of Sinotruk Nigeria Low Loader Semi Trailer

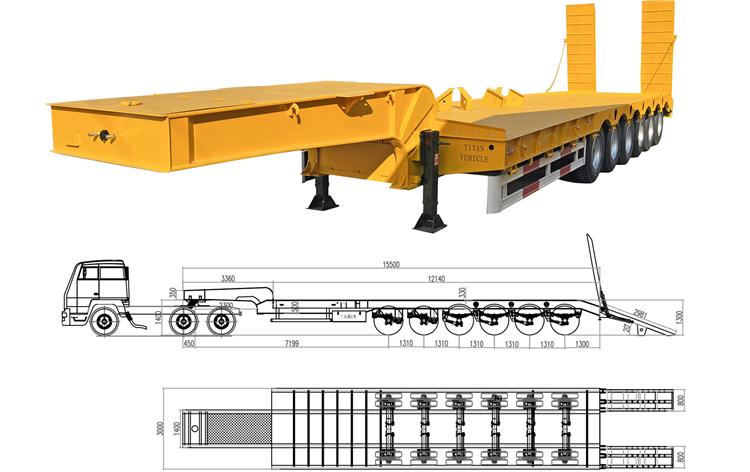

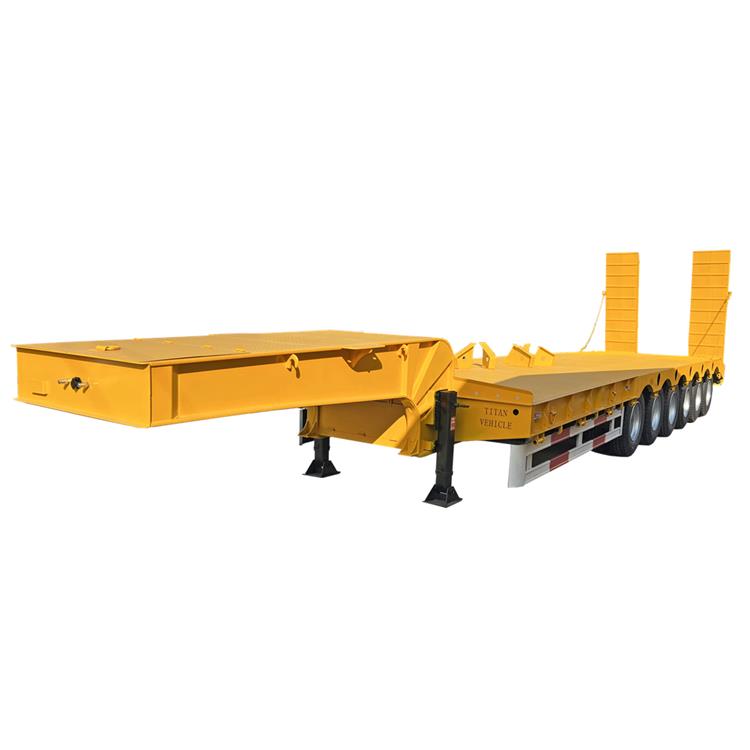

Specification of Drop Deck Low Loader

Dimension: 15500*3000*1250 mm

Loading capacity: 60 ton

Axle: 6 axles,13 tons axles;16 tons brake lining

Tire: 12R22.5, 24 units

Material:T700 high strenth steel

Main beam: middle plate:500 mm high,12 mm thick;upper plate:18 mm thick;bottom plate:20 mm thick

Side beam: 250 mm high,6 mm thick,H-type

Bottom plate: 4 mm thick checkered plate

Suspension:The front two axles are air suspensions, which can be lifted. The rest four axles are heavy-duty mechanical suspension10 mm thick suspension with 70 mm center balance pin

Landing gear: 28 ton landing gear

Ladder: hydraulic ladder

By Ro-Ro Ship of Low Loader Semi Trailer

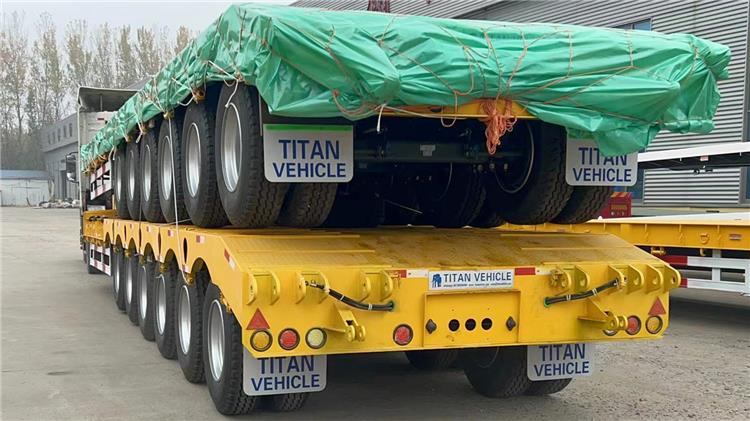

We will spray a thick layer of wax on the Sinotruk nigeria low loader transporter to reduce the damage caused by seawater erosion of the lowbed trailer during transportation. After the trailer is sprayed with wax, we will wrap the body with rain cloth, which is also to reduce the erosion of the Sinotruk nigeria low loader semi trailer by seawater during transportation.
