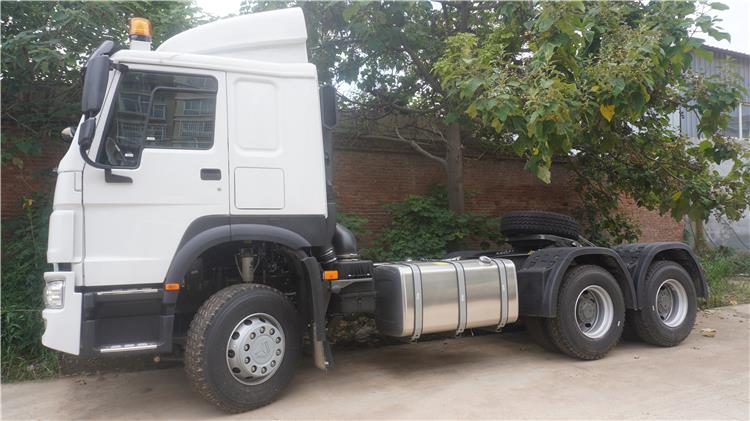

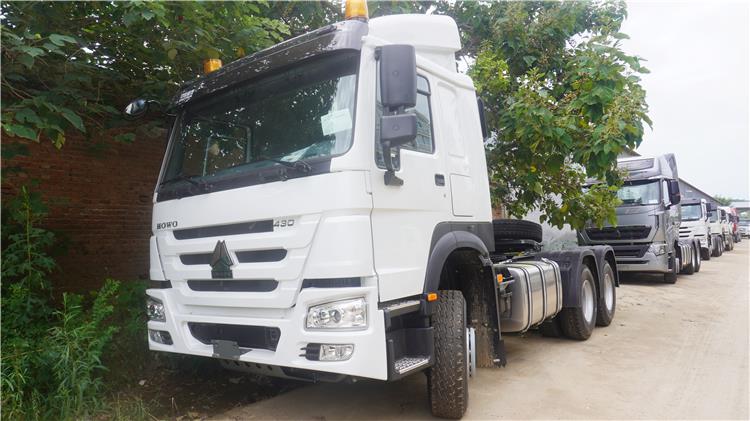

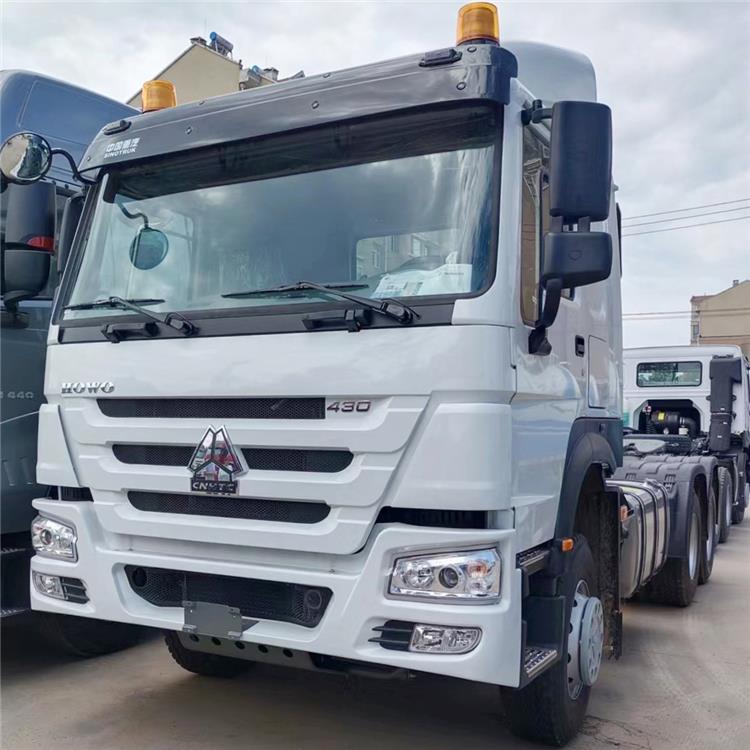

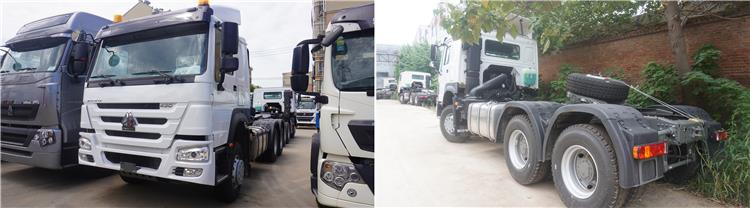

Howo 10 Wheel 430 HP Tractor Truck

10 Wheel 430 HP Tractor Truck Price: 31300USD

Howo 10 wheel 430 hp tractor truck is designed and manufactured by Sinotruk Howo, a leader in China's top heavy truck industry. It has a solid Chinese market foundation, perfect after-sales service and industry-leading manufacturing technology.

The chassis of the Howo 10 wheel 430 hp tractor truck adopts a compact design, the components are arranged compactly, and the installation position of the engine assembly is increased by ten centimeters, which improves the passability of the tractor.

The Howo 10 wheel 430 hp tractor truck frame longitudinal beam adopts a new generation of high-strength materials, and the tensile strength exceeds 820Mpa.

Howo 10 Wheel 430 HP Tractor Truck for Sale - Sinotruk Nigeria

Howo 10 Wheel 430 HP Tractor Truck for Sale - Sinotruk Nigeria

Howo 10 Wheel 430 HP Tractor Truck for Sale - Sinotruk Nigeria

Specification of Howo 430:

Model: ZZ4257V3241W

Engine:

Engine model: D12.42-20, Euro II emission standard, 4 stroke injection diesel engine, 6 cylinders in-line with water cooling, turbo-charging & inter cooling, mechanical high-pressure oil pump system

Maximum output: 430PS (309kW) at 2000 rpm

Maximum torque: 1820Nm at 1100-1400rpm

Bore: 126mm

Stroke: 155mm

Displacement: 11.596L

Clutch: SINOTRUK’s 420C diaphragm spring clutch, hydraulically operating with air assistance

Dimensions inmm:

Wheel base (mm): 3200+1350

Front wheel track (mm): 2022/2041

Rear wheel track (mm):1830/1830

Overhang(front/rear) (mm):1500/725

Approach angle(°):16

Departure angle(°):70

Overall Dimension (mm): 6800x2496x2958

Transmission:

Transmission, model HW19710, 10 forward and 2 reverse

Ratio: 4.42   4.8  5.73

Front Axle: New HF9 series, with drum brake system

Rear Axle: HC16 pressed axle housing, single reduction and differential locks between axles; with drum brake system.

Steering: ZF8118, hydraulic steering with power assistance

Ratio: 22.2-26.2:1

Wheels&Tyres:

Rims: 8.5-20,10 hole-steel

Types: 12.00R20 Option:12R22.4,12.00-24,12.00-20,13R22.5, 315/80R22.5, 295/80R22.5, 11.00R20

Driver'sCab: Long cab, all steel forward control, 55°hydraulic tilting to the front, 2-arm windscreen wiper system with 3 speeds,VDO electrical control system, laminate windscreen, with casted-in radio aerial, adjustable driver’s seat and rigid adjustable co-driver’s seat, heating & ventilation system, with stereo radio/cassette recorder, sun visor, safety belt, air conditioner, 2 warming light

Weight in kg:

Rated loading capacity at fifth wheel (kg):15660

Dead weight (kg):9210

Gross vehicle weight (kg):25000

Gross combination weight（kg）：7000

Front axle loading capacity (kg):9000

Rear axle loading capacity (kg):2*16000

Performance Maximum driving speed(km/h):102(reference data)

Maximum gradeability (%):33

Minimum ground clearance(mm):265

Minimum turning radius (m):18.5

Fuel consumption(L/100km):40(reference data)

About SINOTRUK:

SINOTRUK Nigeria is authorised distributor of SINOTRUK, We produce New SINOTRUK Howo Trucks according to your order.Today, SINOTRUK Nigeria has developed into China's largest heavy duty truck manufacturing base and made significant contributions to the development of China's heavy duty truck industry and national economic growth.

SINOTRUK Nigeria is China's first heavy duty truck manufacturer, initially founded in 1956 and the cradle of China's heavy duty truck industry. SINOTRUK once manufactured China's first heavy duty truck, and it is China's first company to comprehensively introduce foreign heavy duty truck manufacturing technology of complete vehicle.

SINOTRUK has been adhering to implementing independent innovations, carrying out its leading strategy in technologies and building its core competitiveness with intellectual property rights. It has the most patents in China's automotive industry.

SINOTRUK Nigeria’s main truck models include HOWO, HOWO A7, HOHAN, main truck types include truck tractor, tipper truck, cargo truck, truck chassis, fuel tanker truck, water tank truck, and other special trucks.
