1. What is a hydraulic modular trailer?

2. Key Components and Design of Modular Trailer

3. What are multi axle modular trailer used for?

4. What are the three types of modular trailers?

5. Hydraulic modular trailer specifications

6. Hydraulic Modular Trailer FAQ

1. What is a hydraulic modular trailer?

Hydraulic modular trailer for sale in Nigeria is a specialized transport vehicle designed for transporting ultra large and ultra heavy equipment and engineering structural components. Hydraulic modular trailer for sale in Nigeria primarily consists of multiple independent hydraulic axle modules, utilizing a hydraulic suspension system, steering system, and modular combination to achieve safe transport of large cargo. Unlike ordinary low bed trailers, the biggest advantage of a multi axle modular trailer is the flexible combination of axle numbers, allowing for expansion of load bearing capacity according to transport needs. Therefore, it is widely used in the transport of ultra heavy cargo such as wind power equipment, transformers, petrochemical equipment, bridge components, ship parts, and large engineering machinery.

One of the biggest advantages of hydraulic modular trailer for sale in Nigeria is their superior load-bearing capacity and flexible configuration. For transporting large equipment weighing tens, hundreds, or even thousands of tons, ordinary transport vehicles are often insufficient. hydraulic modular trailer for sale in Nigeria be modularly assembled to form large transport platforms. For example, when transporting large transformers, wind turbines, or petrochemical reaction towers, multiple hydraulic axle units can be connected laterally or longitudinally to create extra-wide, extra-long transport units, significantly increasing transport capacity. Furthermore, different modules can be quickly assembled and disassembled, facilitating adjustments for different transport tasks and improving vehicle utilization.

Hydraulic modular trailer for sale in Nigeria also possess excellent road adaptability and stability. Thanks to the hydraulic suspension system, each wheel can be independently adjusted in height, ensuring cargo stability when traversing uneven roads. The hydraulic system automatically compensates for road surface changes, ensuring even force distribution on all wheels and reducing frame deformation and tire wear. In addition, the hydraulic suspension allows for vehicle lifting, lowering the platform height when loading and unloading large equipment, facilitating loading and unloading and improving operational efficiency.

Another important feature is its multi-directional steering capability. Hydraulic modular trailer for sale in Nigeria is equipped with a hydraulic steering system, enabling multiple steering modes, including front-wheel steering, rear-wheel steering, crab steering, and stationary steering. This allows the multi axle modular trailer to move flexibly even in narrow roads, construction sites, or large industrial areas. For large-scale engineering projects, this high mobility effectively solves the problem of ordinary trailers being unable to enter or turn.

Hydraulic modular trailers are primarily used in large-scale infrastructure construction and heavy industrial transportation. For example, in the wind power industry, they can transport extra-long wind turbine blades, towers, and generator equipment; in the energy industry, they can transport large transformers, boilers, and pressure vessels; in ports and shipyards, they can transport ship modules and large steel structures; and in the engineering construction field, they can transport tunnel boring machines, excavating equipment, and bridge components. Therefore, hydraulic modular trailers are considered an irreplaceable and essential piece of equipment in the modern heavy transportation industry.

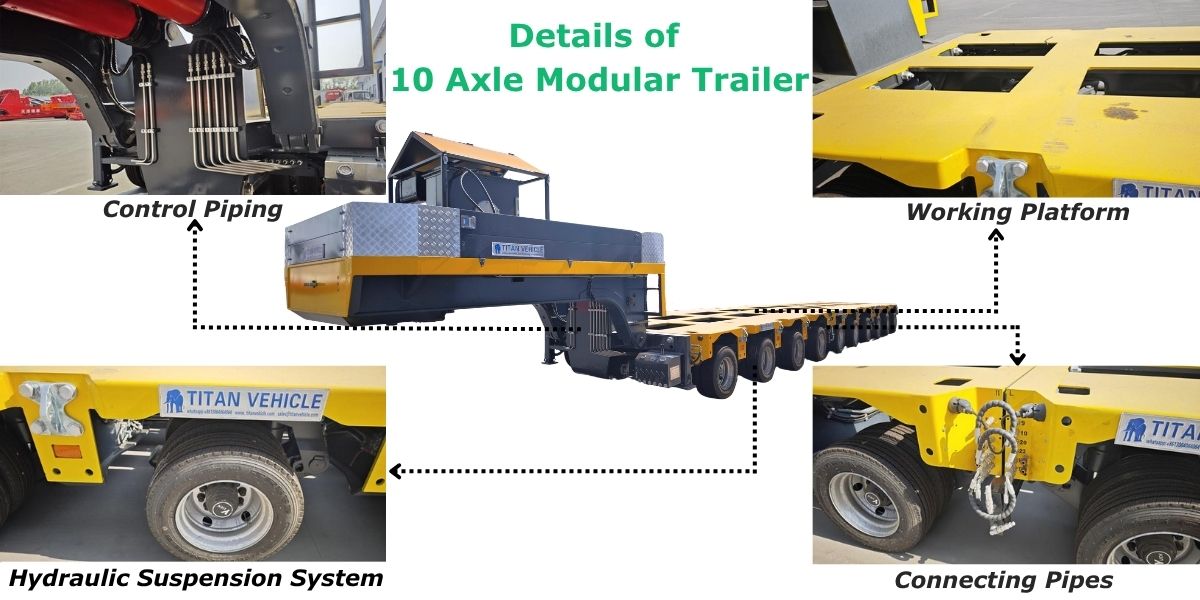

2. Key Components and Design of Modular Trailer

A hydraulic modular trailer for sale in Nigeria is a complex heavy-duty transport device, primarily composed of hydraulic axle modules, a main beam frame, a hydraulic suspension system, a hydraulic steering system, a power control system, connecting devices, and auxiliary equipment. It achieves safe transport of overweight, overlength, and overwidth cargo through the combination of multiple independent axle units. Unlike the fixed axle structure of ordinary semi trailers, hydraulic modular trailer for sale in Nigeria employ a modular design, allowing the number of axles to be increased or decreased according to the weight and size of the cargo, thus meeting the needs of different transport projects.

1. Hydraulic Axle Module (Core Load-Bearing Component)

The hydraulic axle module is the most important component of a hydraulic modular trailer for sale in Nigeria and a key difference from ordinary low-bed semi-trailers. Each axle module typically consists of multiple axles, wheels, hydraulic cylinders, suspension brackets, and a steering mechanism. Common configurations include 2 line 4 axle, 3 line 6 axle, 4 line 8 axle, and 6 line 12 axle configurations. Connecting multiple modules can create a larger transport platform.

The main function of the hydraulic axle module is to bear the weight of the cargo and distribute it evenly across multiple wheels. Because each axle unit has independent load bearing capacity, even when transporting large equipment weighing hundreds of tons, the pressure on individual wheels and the road surface can be effectively reduced, improving transportation safety. Simultaneously, the modular design gives the vehicle greater scalability, allowing for free combination according to different projects.

2. Main Beam Frame (Load Bearing Platform)

The main beam frame is the main structure of the hydraulic modular trailer for sale in Nigeria, primarily used to connect the various axle modules and bear the weight of the transported goods. Since hydraulic modular trailer for sale in Nigeria typically transport heavy goods such as large equipment, steel structures, transformers, and wind power equipment, the frame is generally made of high strength steel and reinforced.

The frame structure needs sufficient bending and torsional resistance to maintain stability under complex road conditions. Depending on transportation needs, the main beam frame can be designed with different lengths and widths, and the transport platform size can be increased through modular splicing to accommodate large goods of different specifications.

3. Hydraulic Suspension System (Height Adjustment System)

The hydraulic suspension system is an important component of the hydraulic modular trailer for sale in Nigeria, mainly composed of hydraulic cylinders, hydraulic lines, a hydraulic pump station, and control valves. Compared to traditional mechanical suspension, the biggest advantage of hydraulic suspension is its ability to automatically adjust vehicle height based on road conditions and cargo weight.

During transportation, hydraulic suspension ensures even force distribution across all axles, preventing excessive pressure on any one wheel. When encountering slopes, uneven surfaces, or obstacles, the driver can raise or lower the hydraulic modular trailer for sale in Nigeria using the hydraulic system, improving its maneuverability. Furthermore, when loading and unloading large equipment, the platform height can be lowered, making loading and unloading easier.

4. Hydraulic Steering System (Flexible Steering Device)

The hydraulic steering system controls the vehicle's steering and is a key component enabling the high mobility of hydraulic modular trailer for sale in Nigeria. While ordinary semi trailers have a large turning radius, hydraulic modular trailer through their independent steering axle design, can achieve multiple steering modes.

Hydraulic modular trailer for sale in Nigeria can move flexibly in complex environments such as narrow construction sites, ports, and factory interiors, making them ideal for the installation and transportation of large equipment.

5. Hydraulic Power System (Power Source)

The hydraulic power system provides power for the vehicle's suspension lifting, steering control, and other functions. It typically includes a hydraulic pump station, an electric motor or diesel engine, a hydraulic oil tank, control valves, and piping systems.

Through the hydraulic power system, operators can control vehicle height, axle steering angle, and the coordinated operation between modules. For large hydraulic modular trailer for sale in Nigeria, a stable and reliable hydraulic power system is a crucial foundation for ensuring transportation safety.

6. Modular Connection Device (Combined Expansion System)

Due to the modular design of hydraulic modular trailer for sale in Nigeria, the connection device is also a very important component. Multiple axle modules can be connected together using pins, connecting beams, hydraulic connection systems, and other components.

For example, a 4 axle module can be combined with another 4 axle module to form an 8 axle transport platform; multiple modules can also be combined laterally to achieve ultra-wide transport. This flexible combination method allows hydraulic modular trailer for sale in Nigeria to adapt to transport tasks of different weights and sizes.

7. Braking System and Safety Auxiliary Equipment

To ensure safety during overweight transport, hydraulic modular trailer for sale in Nigeria is typically equipped with high performance braking systems, including pneumatic brakes, hydraulic brakes, or electronically controlled braking systems. hydraulic modular trailer for sale in Nigeria is also equipped with auxiliary equipment such as lighting systems, reflective markings, and safety locking devices.

3. What are multi axle modular trailer used for?

Multi axle modular trailers are primarily used for transporting overweight, overlength, and overwidth large cargo. They are specialized transport vehicles designed for large scale engineering projects and heavy equipment transportation. Through the combination of multiple hydraulic axle modules, multi axle modular trailer can carry loads of tens, hundreds, or even thousands of tons, and are widely used in energy, power, petrochemical, wind power, bridge construction, port transportation, and the installation of large industrial equipment. For companies needing to transport large industrial equipment, multi axle modular trailer significantly improve transportation capacity, reduce transportation risks, and enhance project construction efficiency.

The primary application of multi axle modular trailer is transporting ultra-large engineering equipment. In many large-scale engineering projects, the weight of the equipment to be transported far exceeds the load bearing capacity of ordinary trailers, such as large transformers, generator sets, pressure vessels, reaction towers, tunnel boring machines, and mining equipment. These devices are not only heavy but also have unique dimensions, making them impossible to transport using ordinary vehicles. Multi axle modular trailer can increase the number of axles according to the cargo weight, forming a super strong load bearing platform through the combination of multiple modules, achieving safe transportation.

In the power and energy industry, multi axle modular trailers are mainly used to transport large transformers, boilers, nuclear power equipment, and petrochemical plants. Large transformers typically weigh hundreds of tons and require extremely high stability during transportation. Multi axle modular trailer can automatically adjust their height through a hydraulic suspension system, ensuring even load distribution on each axle and reducing the impact of road shocks on the equipment. Simultaneously, the multi axle combination structure reduces the pressure of each axle on the road, improving transportation safety.

Multi axle modular trailers also have wide applications in bridge construction and infrastructure development. For example, large bridge steel structures, precast bridge beams, tunnel equipment, and large construction machinery all require specialized transport vehicles for transfer. Because these goods are typically heavy, long, and irregularly shaped, ordinary trailers are often insufficient. Multi axle modular trailer can be configured laterally and longitudinally to create transport platforms of varying sizes, significantly improving transport efficiency.

Multi axle modular trailer is also used for moving large industrial equipment and for intra-factory transport. Many large manufacturing companies need to move large machinery, such as shipbuilding equipment, metallurgical equipment, and mining machinery, when building factories or installing production lines. This type of equipment usually cannot be disassembled for transport and must be moved as a whole. Multi axle modular trailer offer flexible steering capabilities, allowing for lateral movement, diagonal driving, and even small-range turns, making them ideal for industrial sites with limited space.

Another important application of multi axle modular trailer is in handling oversized and overweight transport projects. Many countries have strict axle load limits for road transport. Overloading ordinary vehicles can damage roads and pose safety risks. multi axle modular trailer by increasing the number of axles, distribute cargo weight across more wheels, reducing pressure on individual axles and making it easier to meet road transport regulations. Therefore, in the field of large-scale engineering transport, it is considered an important piece of equipment for solving the problem of overweight transport.

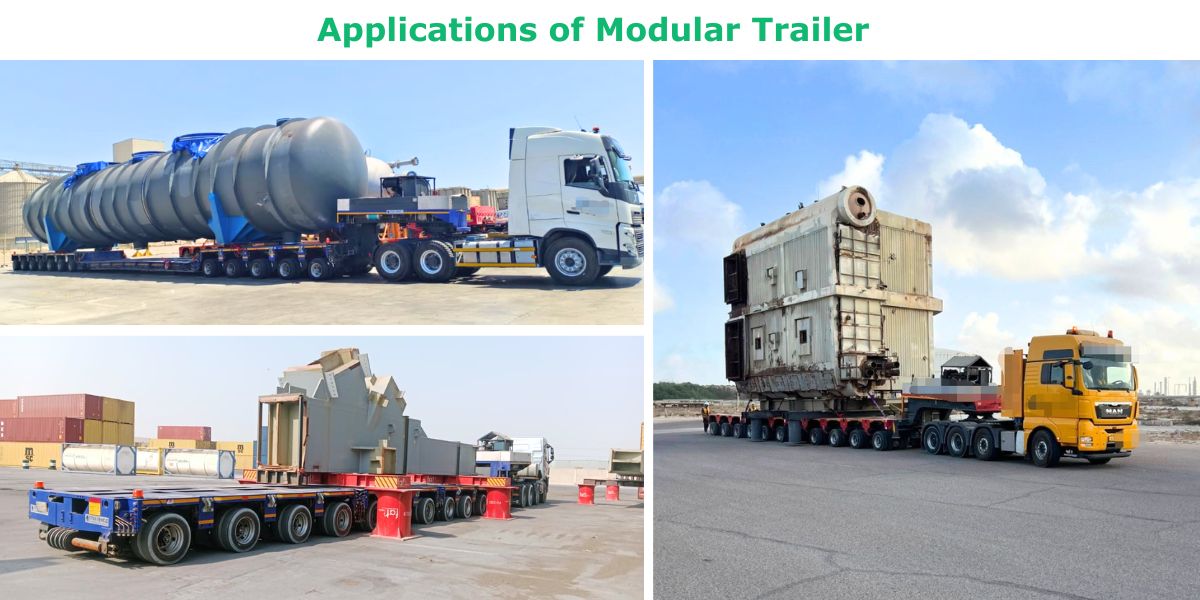

Common Applications of Modular Trailer

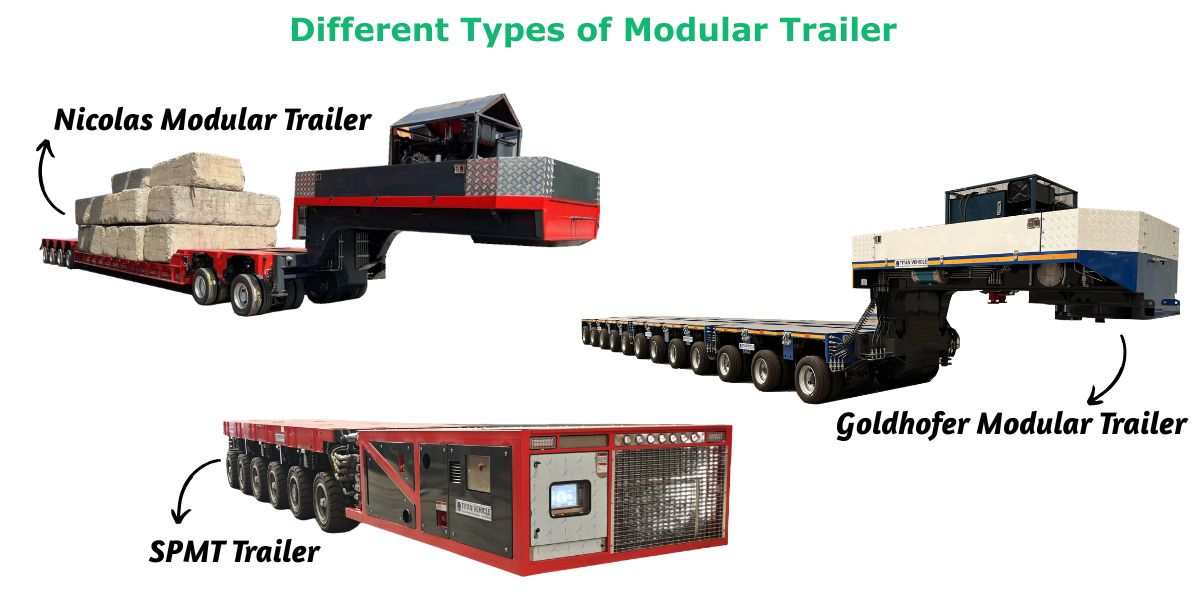

4. What are the three types of modular trailers?

Hydraulic modular trailers are specialized vehicles used for transporting large-scale engineering projects. Based on their structure and application scenarios, they can be divided into three main types: hydraulic modular trailers, hydraulic gooseneck modular trailers, and self-propelled modular trailers (SPMT). While all three types utilize hydraulic axle technology, they differ significantly in their power source, assembly method, and operating environment, meeting diverse needs from road transport to large-scale engineering site transport.

1. Hydraulic Modular Trailer

The hydraulic modular trailer for sale in Nigeria employs a modular design, composed of multiple independent hydraulic axle units. Each module typically consists of multiple axles, a hydraulic suspension system, a hydraulic steering system, and connecting structures. Depending on the weight and size of the transported cargo, users can freely increase or decrease the number of axles, such as 2 line 4 axle, 3 line 6 axle, 4 line 8 axle, 6 line 12 axle, or even more axle combinations, thus forming transport platforms with varying load bearing capacities.

The biggest advantage of this type is its high flexibility and scalability. When transporting goods weighing tens of tons, fewer axle modules can be used; when transporting equipment weighing hundreds of tons or even heavier, the load bearing capacity can be increased by adding more axles. Simultaneously, multiple modules can be combined laterally for ultra-wide transport, or connected longitudinally for ultra-long transport. Therefore, hydraulic modular trailer for sale in Nigeria is widely used in the transport of large transformers, wind power generation equipment, bridge components, petrochemical equipment, and large construction machinery.

Hydraulic modular trailer for sale in Nigeria need to be connected to a tractor unit, which provides the driving power. It is ideal for long distance road transport projects, especially when traversing urban roads, highways, and complex road conditions. With its hydraulic suspension system, it can automatically adjust the vehicle height, ensuring that each axle bears the weight of the cargo evenly, improving stability and safety during transport.

2. Hydraulic Gooseneck Modular Trailer

The hydraulic gooseneck modular trailer is a transport device that adds a gooseneck connection structure to the hydraulic axle modular vehicle. It connects to the tractor unit via the gooseneck device, forming a standard semi-trailer structure for the entire transport vehicle. Compared to conventional hydraulic modular trailer, hydraulic gooseneck modular trailer offer superior traction stability and are better suited for long distance road transport.

The gooseneck structure effectively distributes stress between the tractor and the transport platform, improving vehicle stability during operation. Furthermore, hydraulic gooseneck modular trailers are typically used in conjunction with hydraulic lifting systems, allowing the platform height to be adjusted according to different cargo heights, resulting in a lower overall height during transport and reducing risks when crossing bridges, tunnels, and areas with height restrictions.

This type is primarily used for transporting large equipment, such as mining machinery, construction machinery, wind turbine towers, large steel structures, and industrial equipment. For projects requiring transport from factories to construction sites, hydraulic gooseneck modular trailer offer significant advantages. They combine the robust load-bearing capacity of hydraulic axle trailers with the convenience of semi trailers for road transport, making them widely used by large logistics companies and heavy duty transport enterprises.

In addition, hydraulic gooseneck modular trailer can be configured with different numbers of axle modules, such as 4, 6, 8, 12, or even more axle combinations, to meet various weight-level transport needs.

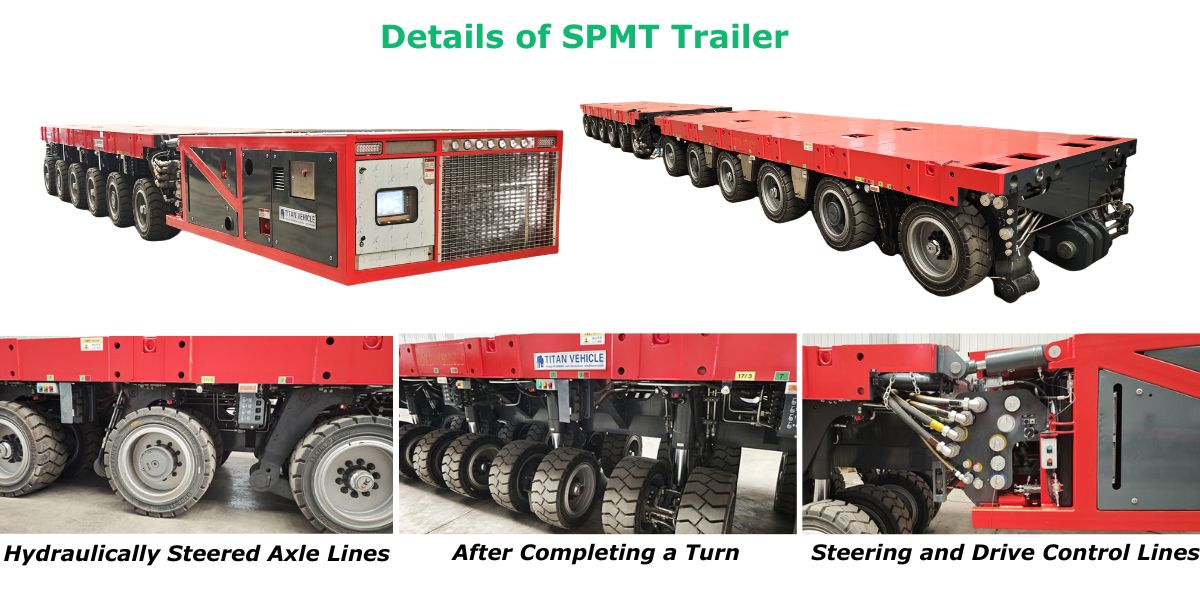

3. Self-Propelled Modular Transporter (SPMT)

The self-propelled modular transporter (SPMT), also known as a hydraulic axle transporter, represents the most technologically advanced type of hydraulic axle transport equipment. SPMTs are equipped with their own independent power system and do not require a tractor for movement. Operators can control the vehicle's movement, steering, lifting, and modular assembly via a wireless remote control system, enabling precise transport of large equipment.

The biggest advantage of SPMT is their extremely high flexibility and load-bearing capacity. Multiple SPMT modules can be freely combined to form ultra-large transport platforms for moving equipment weighing hundreds or even thousands of tons. For example, in large shipyards, SPMTs can transport ship sections; in petrochemical projects, they can move large reaction towers and pressure vessels; and in power engineering, they can transport large transformers and power generation equipment.

Because they do not rely on a tractor, SPMT can complete complex transport tasks in very confined spaces, such as inside factories, ports, and construction sites. They can move laterally, diagonally, and rotate 360 degrees, making them ideal for the installation of large equipment and precise short-distance positioning.

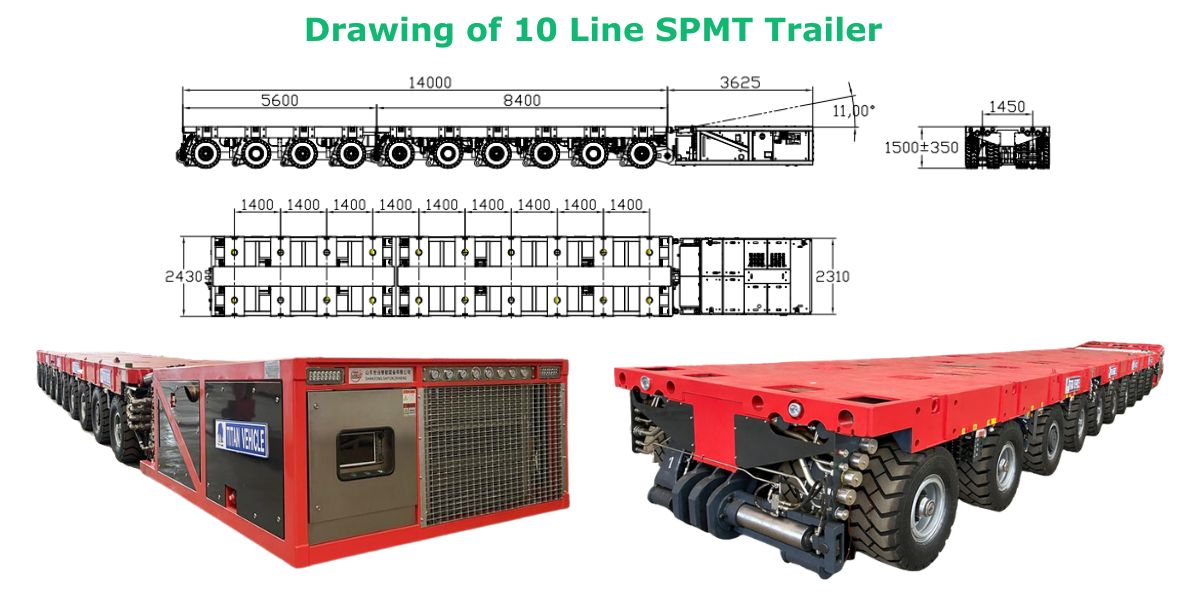

5. Hydraulic modular trailer specifications

Hydraulic Modular Trailer FAQ

1. What cargo can be transported by a hydraulic modular trailer?

Hydraulic modular trailers are mainly used for transporting ultra-heavy and oversized equipment, including large transformers, wind turbine components, generators, pressure vessels, bridge sections, mining machinery, oil and gas equipment, ship modules, and large industrial structures. They are widely used in power plants, construction projects, ports, shipyards, mining industries, and energy projects.

2. Can hydraulic modular trailers be customized?

Yes, hydraulic modular trailers can be fully customized according to customer requirements. The number of axle lines, platform width, platform length, loading capacity, steering system, and connection method can all be adjusted according to the size and weight of the cargo. Customers can choose different combinations such as 2-line, 4-line, 6-line, 8-line, or more axle configurations.

3. What steering modes does a hydraulic modular trailer have?

Hydraulic modular trailers usually use a hydraulic steering system and can achieve multiple steering modes, including front steering, rear steering, all-wheel steering, and crab steering. These functions allow the trailer to move flexibly in narrow areas such as construction sites, ports, factories, and industrial areas.

4. What are the advantages of a hydraulic modular trailer?

The biggest advantage of a hydraulic modular trailer is its flexibility and high load capacity. The hydraulic suspension system can automatically adjust the height and balance the load among all axles, reducing pressure on each axle and improving transportation safety. In addition, the modular design allows multiple units to be connected together, making it suitable for transporting extremely heavy and oversized cargo.

5. How does the hydraulic suspension system work?

The hydraulic suspension system uses hydraulic cylinders and a hydraulic control system to adjust the height of each axle independently. During transportation, the system ensures that all wheels maintain even contact with the road surface, improving stability and reducing vibration. The hydraulic suspension also allows the hydraulic modular trailer platform to be raised or lowered for easier loading and unloading.
