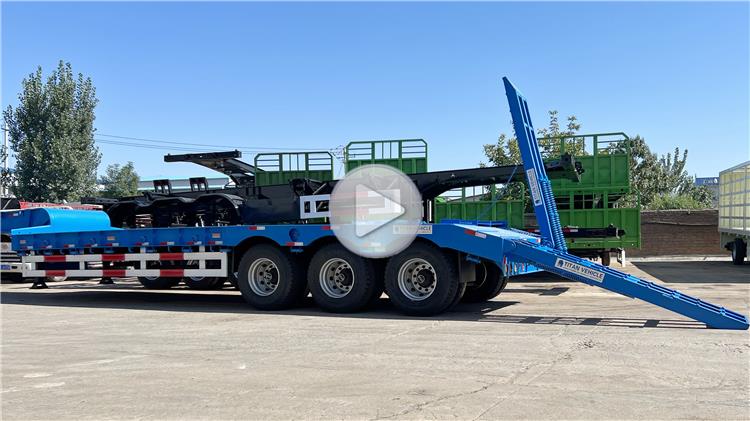

TITAN 3 axle lowbed trailer price has a special design, that is the 3 axle low bed trailer price installs folding ladders on the working platform, which can reduce slopes and facilitate easy movement of heavy loads. the main beam of 3 axle lowbed trailer price is made of Q460C steel material, which is much stronger than Q345.

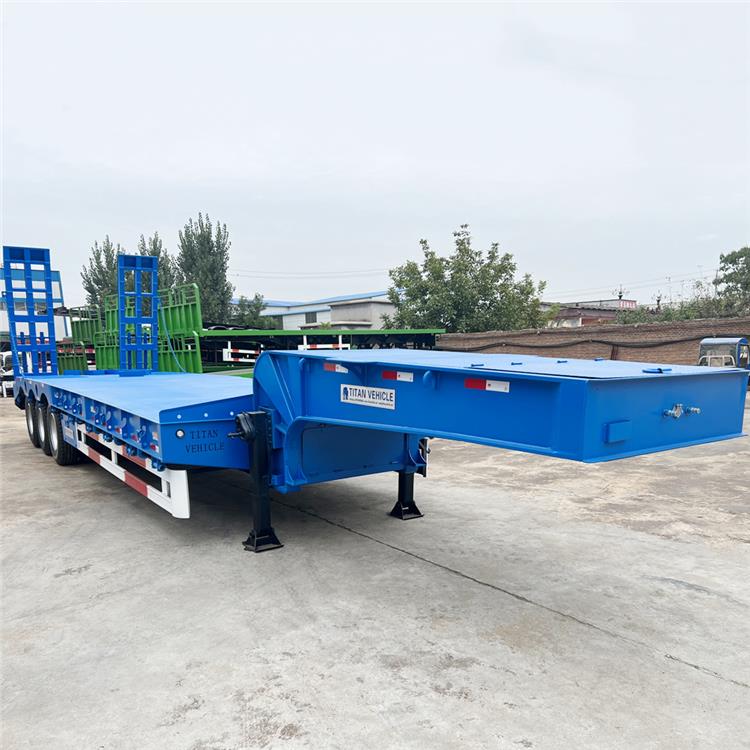

Lowbed Truck Trailers for Sale In Nigeria, Lagos
Lowbed Truck Trailers for Sale In Nigeria, Lagos

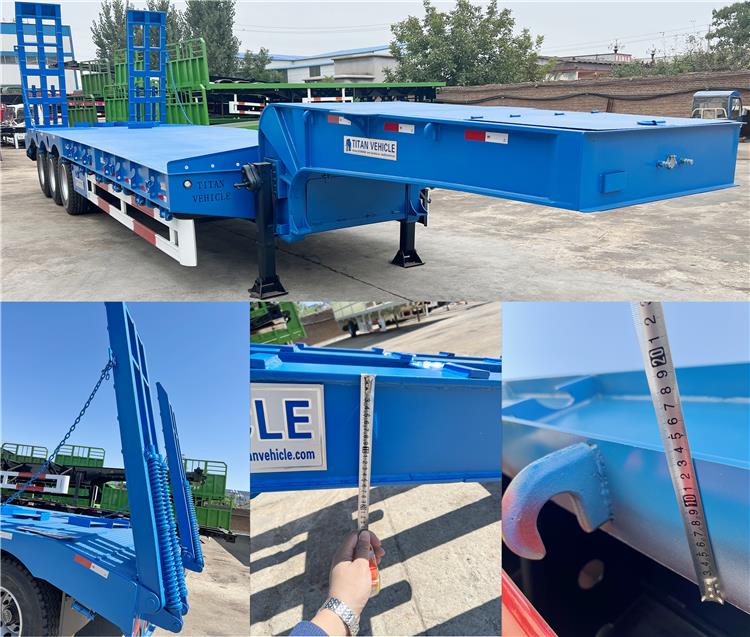

Lowbed truck trailers for sale in nigeria uses T700 high strength steel to produce the side beam and adopt H-Type design, whose bearing capacity is 2 times that of other steels. Lowbed truck trailers for sale in Nigeria adopt triple reinforcement, and it is reinforced by double boxes, which makes the lowbed truck for sale have more loading capacity.

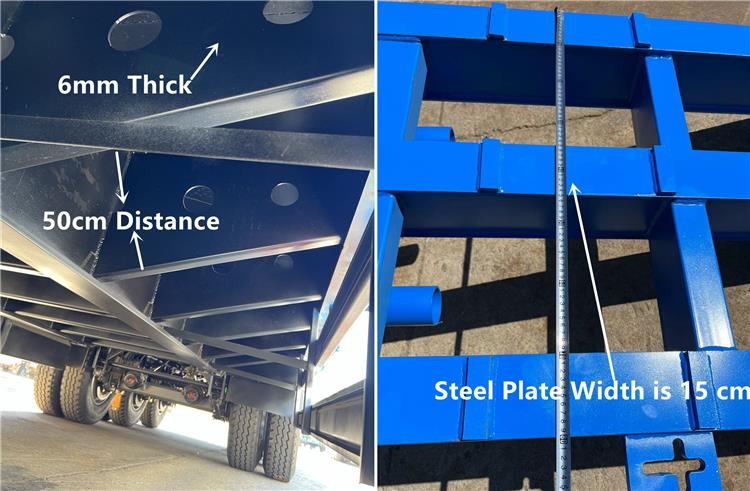

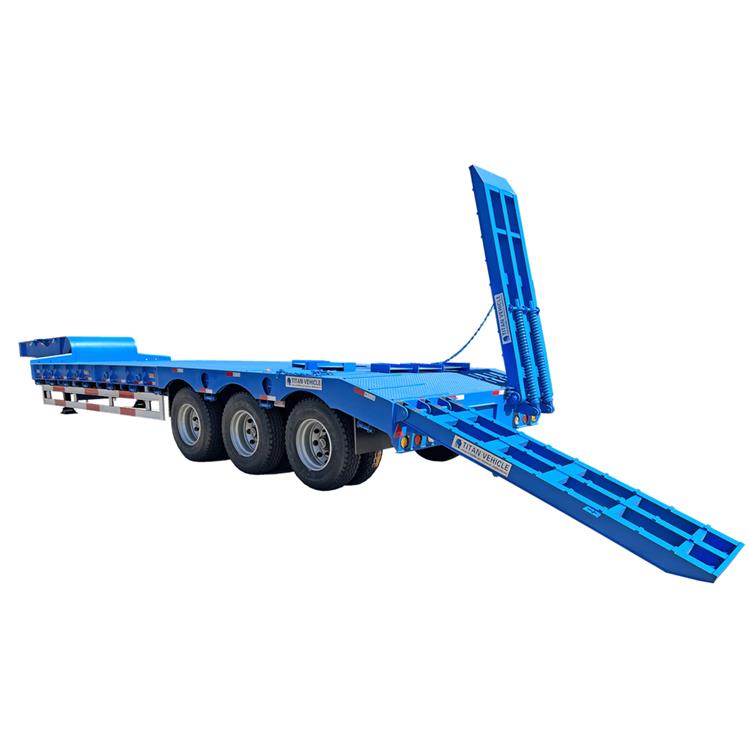

Lowbed truck trailer for sale in nigeria ramp is weld by four high strength steel,and the width of the steel plate is 15 cm,which makes the ramp will never deform. The diagonal support of our lowbed truck for sale is welded with 3 high-strength steel plates, which is more sturdy.And the distance between each two inclined supports is only 50 cm.
Lowbed truck for sale adopts triple reinforcement at the wheel part of the main beam, which makes the trailer will have longer service time. Lowbed truck trailers for sale in nigeria use the polyurethane paint to paint the flatbed trailer,who has high adhesion, high chroma, beautiful color.

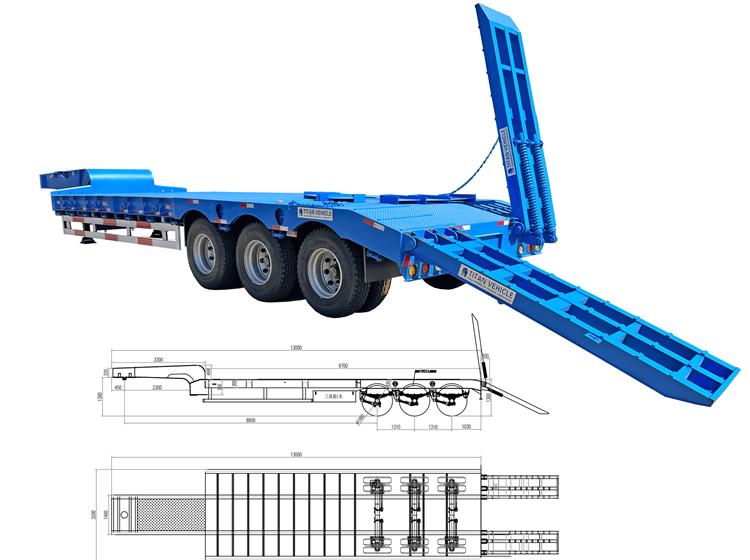

Overall dimension: 13000mm * 3000mm *3400mm
Loading capacity(T): 60 tons
Axle: 3 axle low bed trailer, 13T/16T, FUWA / BPW / TITAN Brand
Tire: 12units, 11.00R20
Suspension: Mechanical suspension
Spring leaf: 90(W)mmx13(Thickness)mmx10 layers
Kingpin: JOST brand 2.0 or 3.5inch
Landing gear: JOST brand

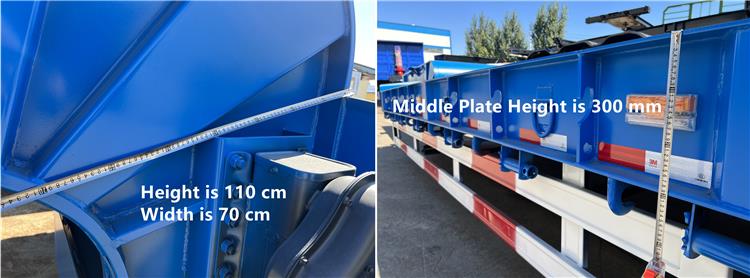

Main beam: Height: 500mm, Upper plate: 20mm, Middle plate: 12mm, Lower plate: 20mm, Material: Q345B steel.
Bottom Platform: 5mm thick checkered plate

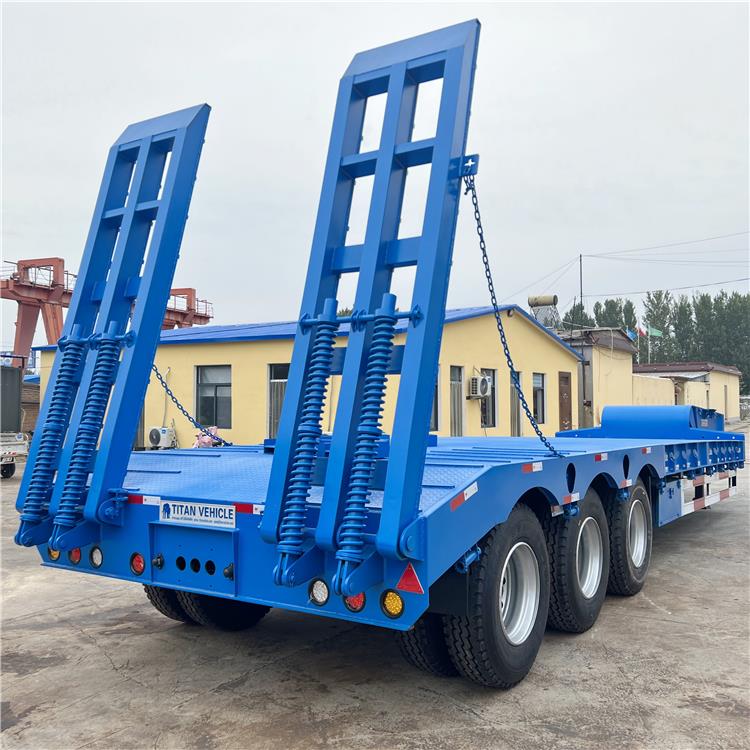

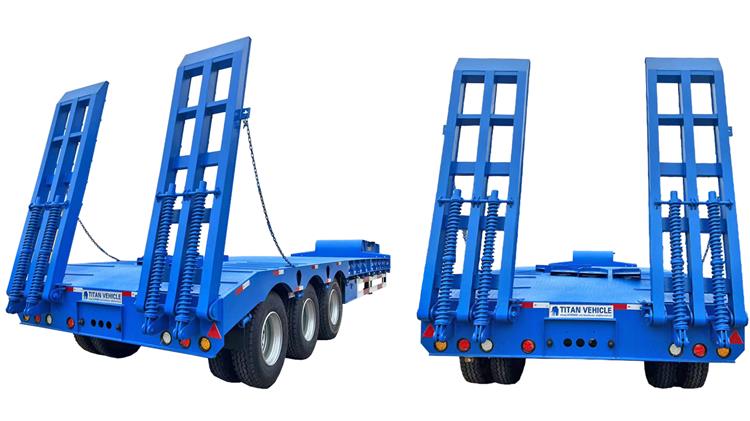

Ramp: Spring ramp
Gooseneck: Optional
Light: LED light
