Dropside trailer is a common freight vehicle, widely used to transport various goods, especially bulk goods and commodities.
Dropside semi trailer usually consists of a chassis and a detachable cargo box, the sides and back of which are usually made of railings or brackets to facilitate loading and unloading and fixing of goods. This design makes the compartment more open and suitable for transporting goods of various sizes and shapes.
The open design of dropside trailer is convenient for loading and unloading, improves work efficiency, and is particularly suitable for transportation scenarios that require frequent loading and unloading.
Dropside semi trailer can transport a variety of types of goods, including building materials, mechanical equipment, agricultural products, etc., and has strong adaptability.

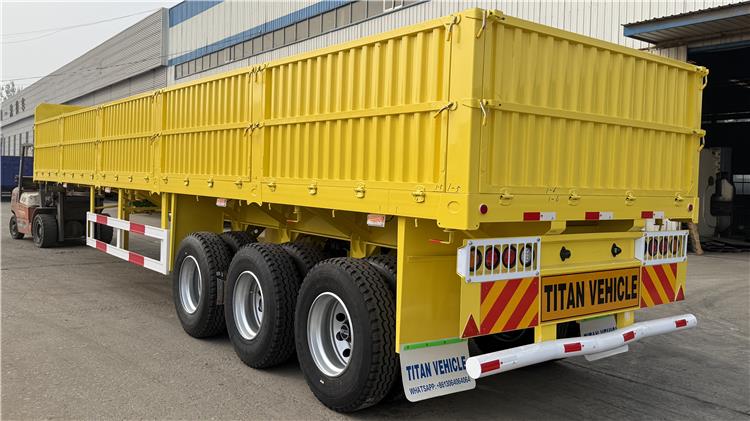

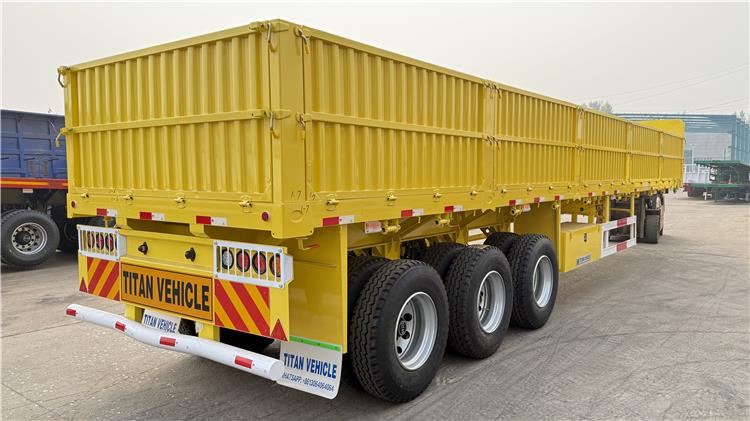

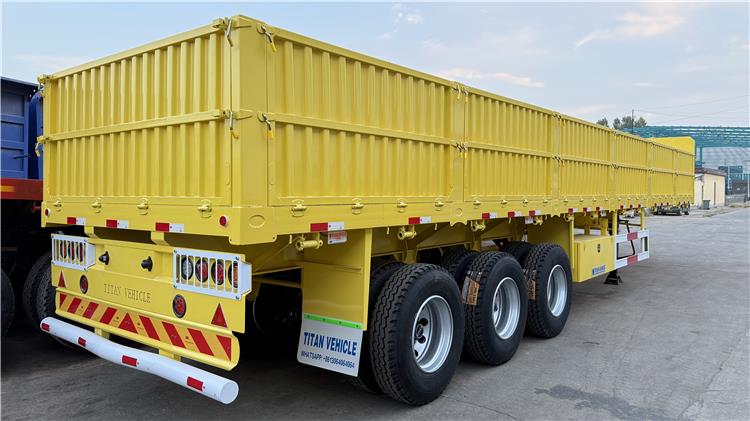

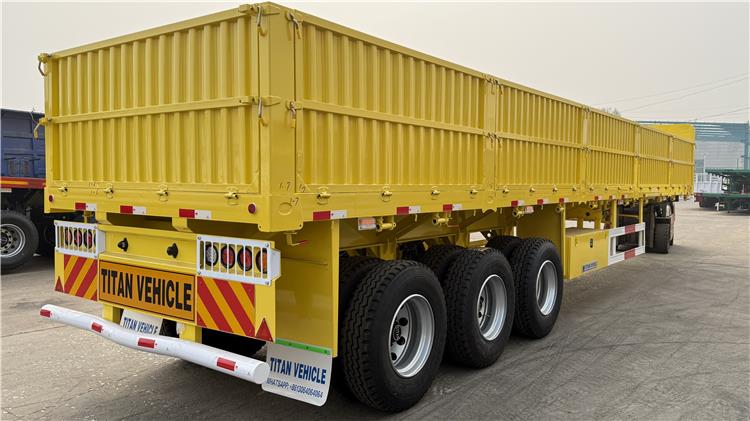

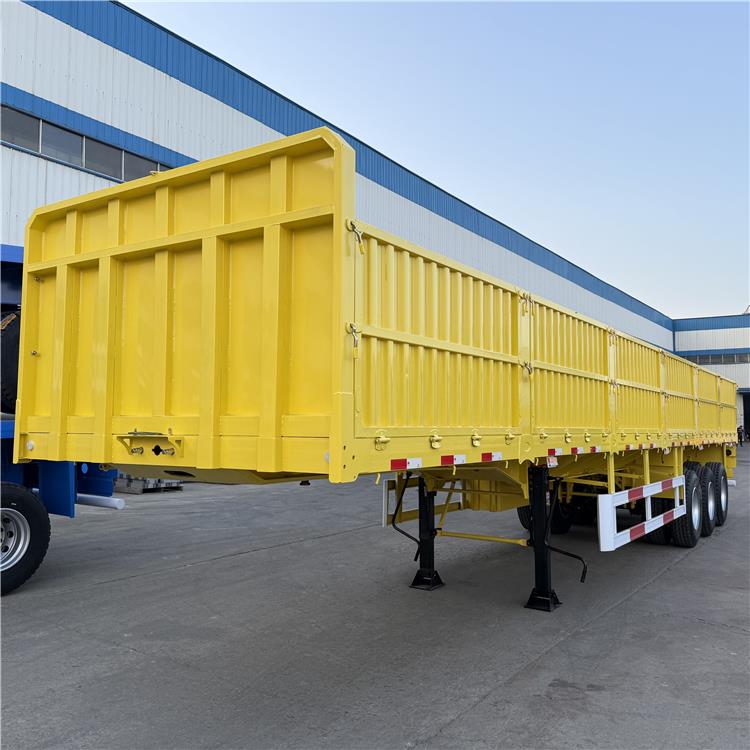

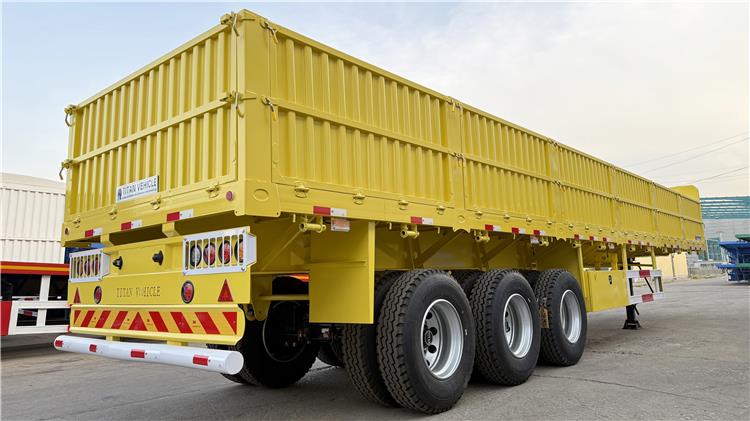

Tri Axle 60 Ton Dropside Semi Trailer for Sale In Nigeria Lagos
Tri Axle 60 Ton Dropside Semi Trailer for Sale In Nigeria Lagos
Tri Axle 60 Ton Dropside Semi Trailer for Sale In Nigeria Lagos
Tri Axle 60 Ton Dropside Semi Trailer for Sale In Nigeria Lagos
Tri Axle 60 Ton Dropside Semi Trailer for Sale In Nigeria Lagos
Tri Axle 60 Ton Dropside Semi Trailer for Sale In Nigeria Lagos
Dimension(mm): 12500x2500x2350mm
Trailer Sides: 800mm sidewall
Loading capacity(ton): ≤50T
Axles: 3 axles, 16T TITAN Brand
Tire: 12 units, 12R22.5
Rim: 9.00-22.5 or 9.75-22.5
Suspension: Mechanical suspension
King Pin: JOST brand 2.0 or 3.5 inch
Landing Gear: JOST brand D200T or Chinese brand 28tons
Main Beam: Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material:Q345B steel
Bottom Side Beam: 16mm or 18mm steel channel

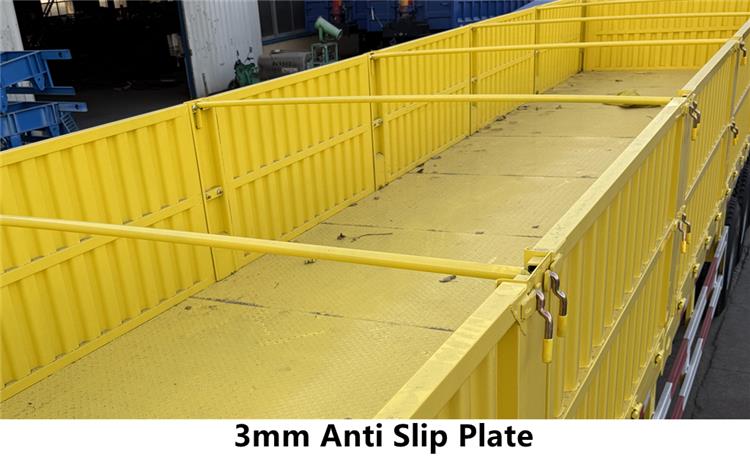

Platform: 3mm-thick checkered plate
Twist Locks: 4,8,12 sets
Valve: WABCO valve
ABS: Optional

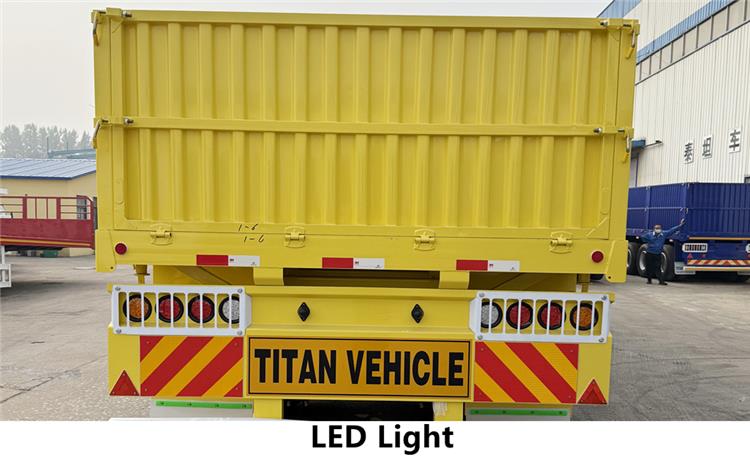

Light: LED light (specially intended for oversea market)
Voltage: 24V
Socket(Receptacle): 7-pin Socket (for 7 wire harness)
Tool Box: 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)
Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats
Dropside trailer can ensure the stability of goods during transportation and improve transportation safety through fixing methods such as railings and ropes.
Dropside semi trailer has become an indispensable tool in the logistics and transportation industry with its flexibility and wide applicability, especially suitable for scenes that require efficient loading and unloading and diversified cargo transportation.
Dropside trailer has high steel strength and good impact resistance, suitable for heavy-load transportation.
When choosing a drop side semi trailer, the choice of material should take into account transportation needs, environmental conditions and maintenance capabilities.
The open compartment structure of the drop side semi trailer is more convenient for loading and unloading and fixing, and can load almost all goods within the tolerance range.
Dropside trailer is suitable for medium and long-distance transportation, whether on urban roads, highways, or on some unpaved roads with poor road conditions. It can meet the needs of different transportation distances and transportation environments.
The drop side semi trailer sideboard structure allows the goods to be loaded and unloaded from the side of the vehicle, without opening the entire compartment door like a van semi-trailer, and the loading and unloading operation is more flexible and fast. Especially in some space-constrained loading and unloading sites, the advantages of sideboard semi-trailers are more obvious.
