Nigeria Sinotruk Local Sales Center 2025 Howo New Model

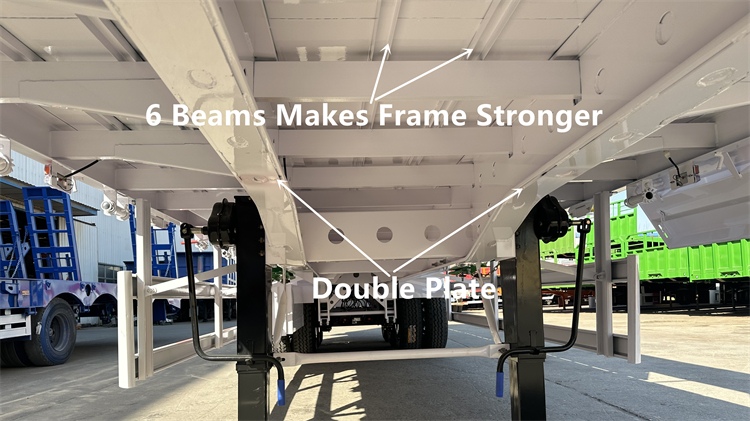

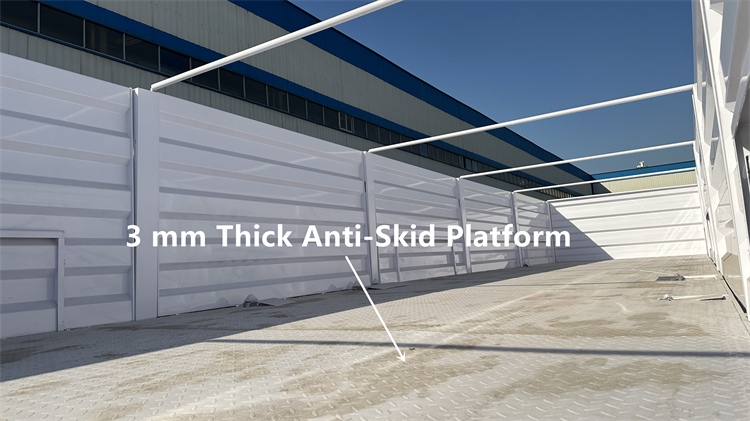

The main beam of tri axle trailer with board is made of Q345 high strength steel.Tri axle trailer with board adopts high density supports under the platform.The distance between every two support is only 50 cm.
Side tube of the tri axle trailer with board,we use the 5*5 mm one. We will reinforce it with a middle beam,which makes the sidewall stronger.

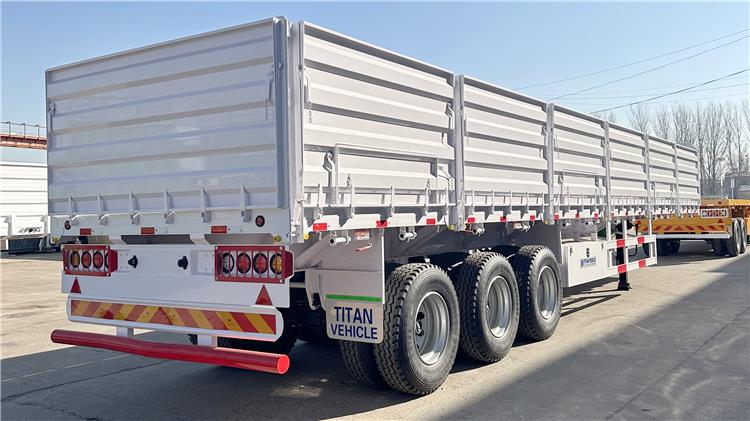

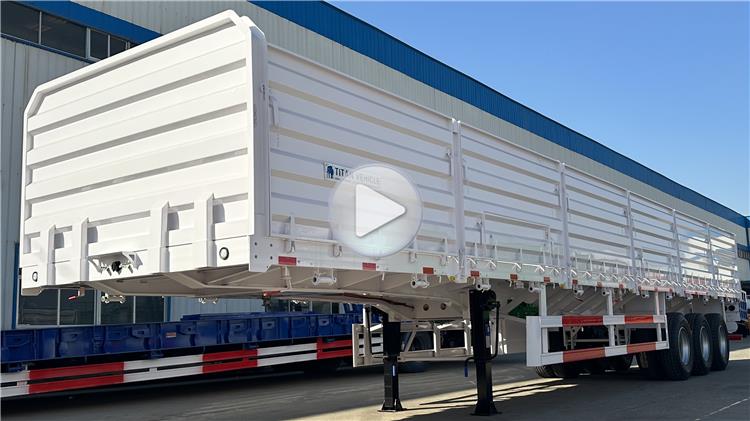

Tri Axle Trailer with Board for Sale In Nigeria Lagos
Tri Axle Trailer with Board for Sale In Nigeria Lagos
Tri Axle Trailer with Board for Sale In Nigeria Lagos
Tri Axle Trailer with Board for Sale In Nigeria Lagos
Tri Axle Trailer with Board for Sale In Nigeria Lagos
Tri Axle Trailer with Board for Sale In Nigeria Lagos
Tri Axle Trailer with Board for Sale In Nigeria Lagos
Tri Axle Trailer with Board for Sale In Nigeria Lagos
Dimension(mm): 12500mm*2500mm*2350mm
Trailer Sides: 600mm sidewall

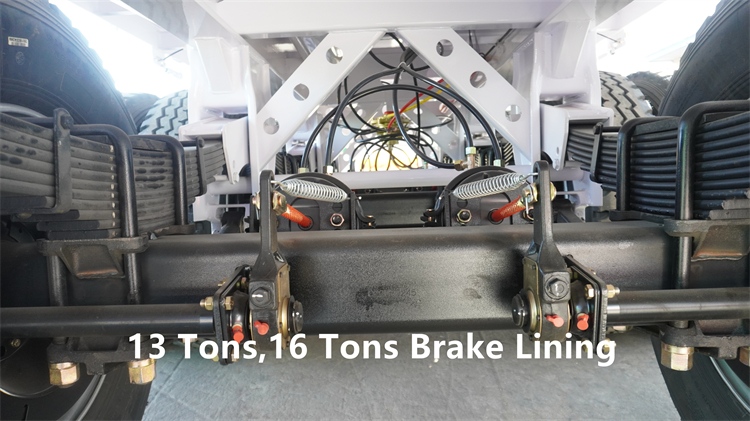

Axles: 3 axles, 13T/16T ,FUWA/ BPW

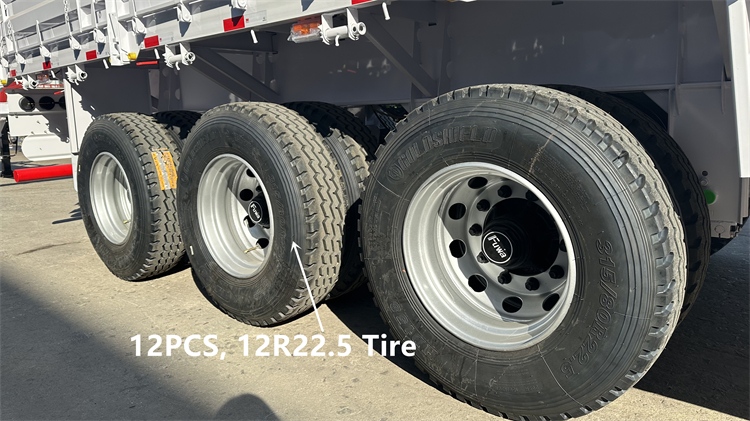

Tire: 12 units, 12.00R22.5 or 315/80R22.5
Suspension: Mechanical, Bogie, Airbag suspension(China brand or BPW brand)

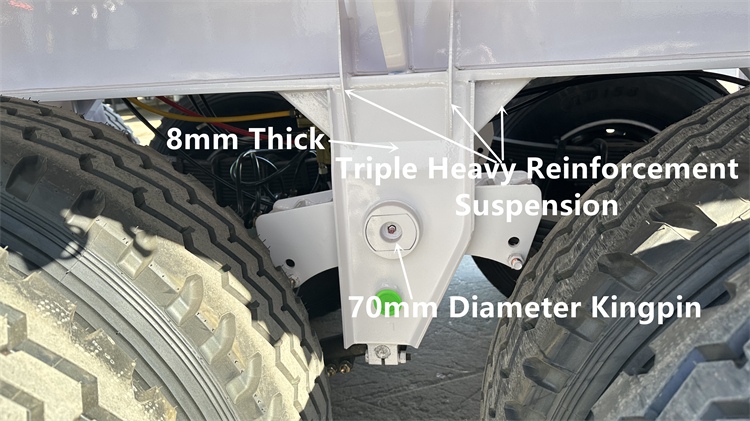

King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)
Landing Gear: JOST brand D200T or Chinese brand 28tons(double-speed)
Main Beam: Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material:Q345B steel
Add: PLOT 3, OBA, AKRAN AVENUE, IKEJA, LAGOS
